Evaluation Board User Guide

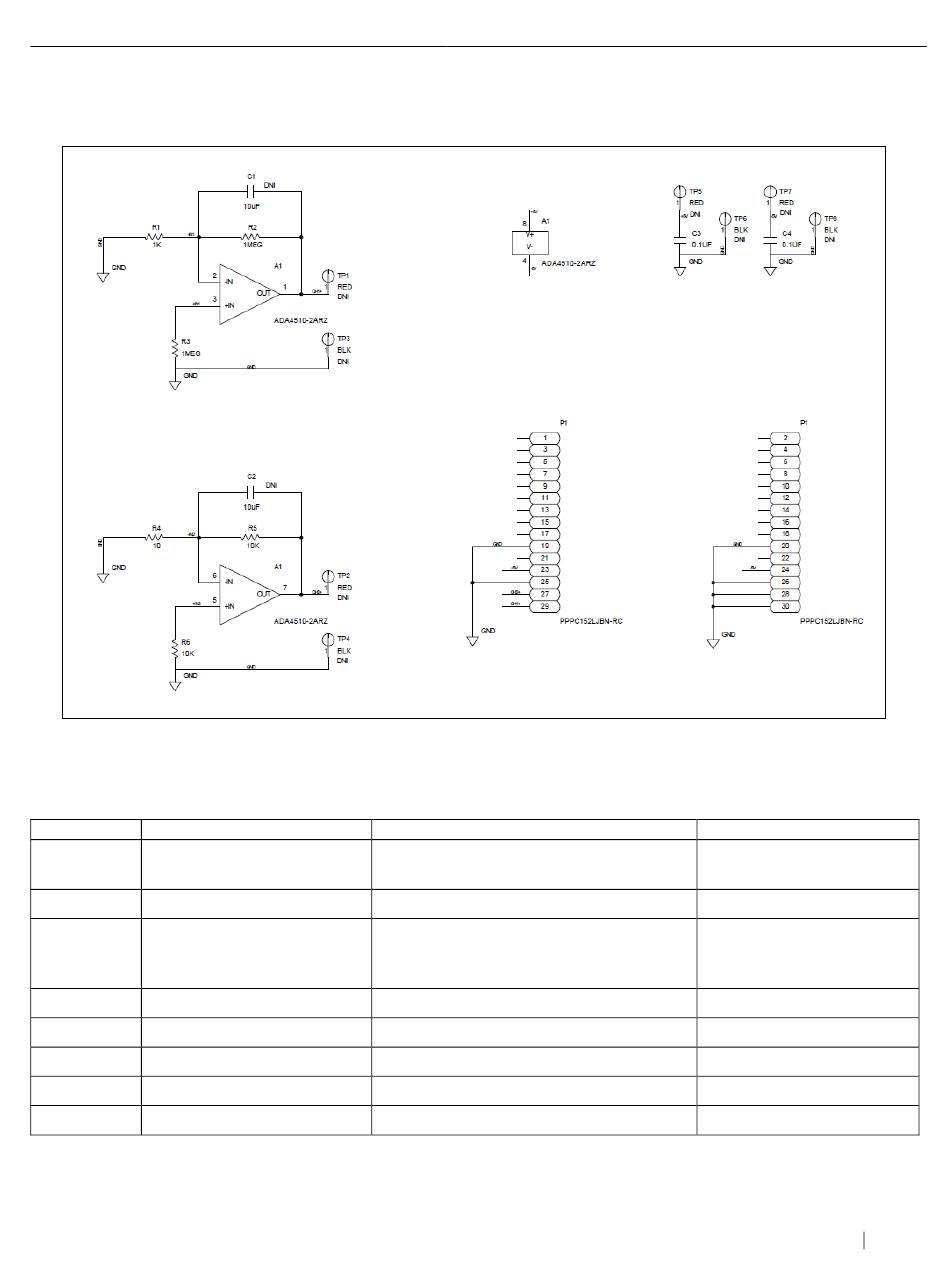

Evaluation Board Schematic
Ordering Information
Bill of Materials
QTY REFERENCE DESIGNATOR
1 ADA4510-2 (A1)
2 C3, C4
1 P1
1 R1
2 R2, R3
1 R4
2 R5, R6
1 None
analog.com
DESCRIPTION
ADI precision, rail-to-rail input and output op
amplifier with Digitrim
0.1µF capacitor
30-pin socket strip
1kΩ resistor
1MΩ resistor
10Ω resistor
10kΩ resistor
EVAL-KW4501Z Printed circuit board
EVAL-KW4501Z
PACKAGE
8-pin SOIC
X7R 0805
30-pos 2.54mm right-angle
through hole female socket
strip
0805 AEC-Q200
0805 AEC-Q200
0805
0805 AEC-Q200
