High Speed Evaluation Board for Full Duplex M-LVDS Transceivers (ADN4692E,

FEATURES

Easy evaluation of full-duplex M-LVDS transceivers
ADN4692E, ADN4693E, ADN4695E, and
Board layout optimized for high speed signaling
Matched track lengths on M-LVDS input/output differential
pairs, with controlled 50 Ω impedance tracks
SMB jack inputs/outputs for high speed connections
Logic signals: RO, RE, DE, and DI
M-LVDS bus signals: A, B, Y, and Z
Power/ground connections through screw terminal blocks
Jumper selectable enable/disable for RE and DE
Test points for measuring all signals and multiple ground
points to facilitate probing of multiple signals
50 Ω termination resistors across A and B, and Y and Z, to
simulate double-terminated bus

APPLICATIONS

Full-duplex M-LVDS part evaluation

EVALUATION KIT CONTENTS

1 EVAL-ADN469xEFDEBZ

1
ADN4692EBRZ
1
ADN4693EBRZ
1
ADN4695EBRZ
1
ADN4697EBRZ
Table 1. ADN469xE Selection Table
Part No.
Receiver Type
ADN4690E
Type 1
ADN4691E
Type 1
ADN4692E
Type 1
ADN4693E
Type 1
ADN4694E
Type 2
ADN4695E
Type 2
ADN4696E
Type 2
ADN4697E
Type 2
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
ADN4693E, ADN4695E, and ADN4697E)
ADN4697E
Data Rate
Package
100 Mbps
8-lead SOIC
200 Mbps
8-lead SOIC
100 Mbps
14-lead SOIC
200 Mbps
14-lead SOIC
100 Mbps
8-lead SOIC
100 Mbps
14-lead SOIC
200 Mbps
8-lead SOIC
200 Mbps
14-lead SOIC
Rev. 0 | Page 1 of 8
Evaluation Board User Guide
EVAL-ADN469xEFDEBZ

GENERAL DESCRIPTION

The EVAL-ADN469xEFDEBZ allows quick and easy evaluation
of full-duplex M-LVDS transceivers (ADN4692E, ADN4693E,
ADN4695E, and ADN4697E). The evaluation board allows all
of the input and output functions to be exercised without the
need for external components. Screw terminal blocks provide
convenient connections for power and ground, with SMB jack
connectors for high speed logic and M-LVDS bus signals.
The evaluation board has a 14-lead SOIC footprint for a full-duplex
M-LVDS transceiver from the ADN469xE family (see Table 1).
Half-Duplex/Full-Duplex
Half
Half
Full
Full
Half
Full
Half
Full
UG-361
www.analog.com

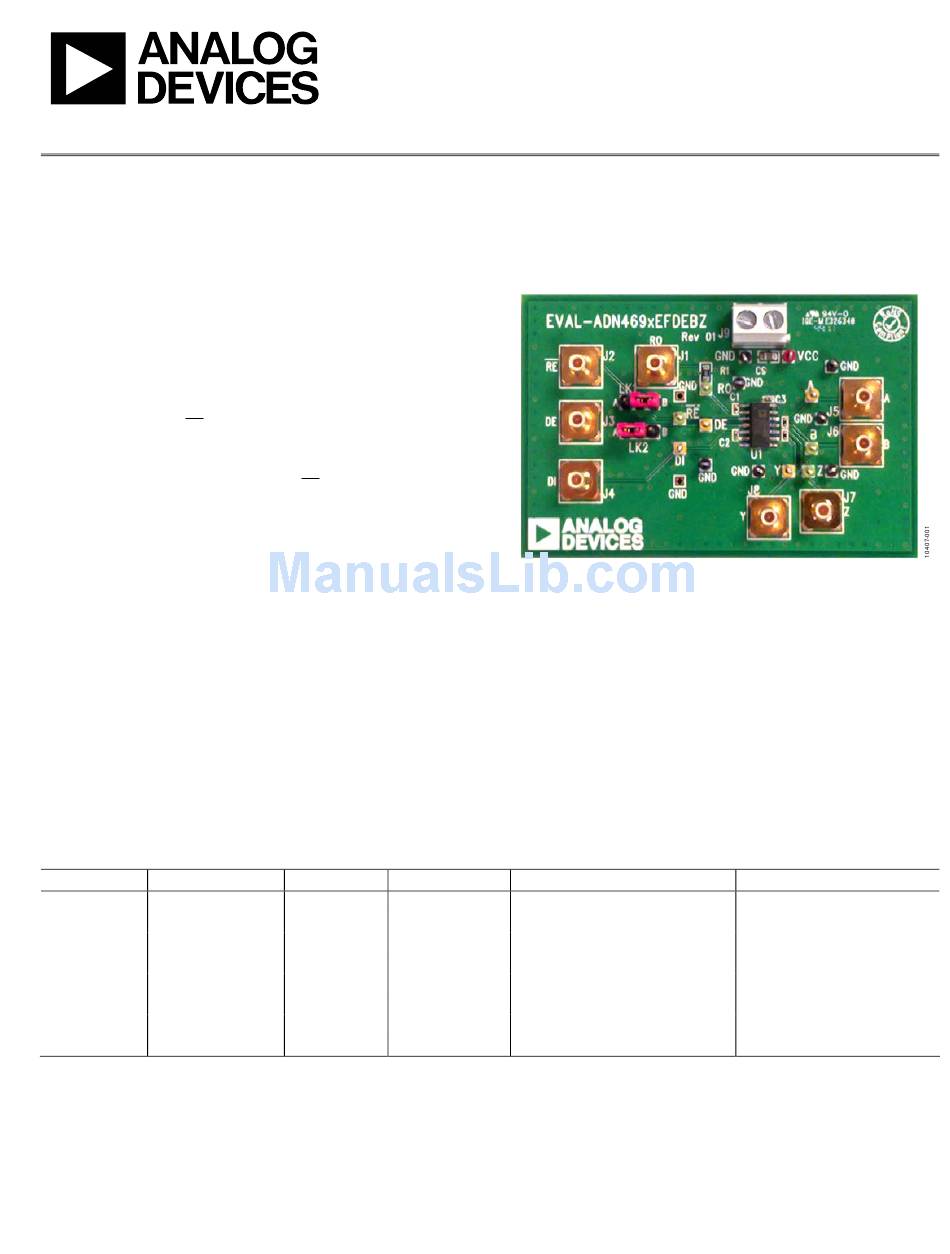

Figure 1.
Evaluation Board
EVAL-ADN469xEHDEBZ
EVAL-ADN469xEHDEBZ
EVAL-ADN469xEFDEBZ
EVAL-ADN469xEFDEBZ
EVAL-ADN469xEHDEBZ
EVAL-ADN469xEFDEBZ
EVAL-ADN469xEHDEBZ
EVAL-ADN469xEFDEBZ
