Evaluation Board User Guide
Quick Evaluation
The ADALM2000 is a portable data acquisition instrument that provides users with varied high-performance
instrumentation options. For this demonstration board, the power supply and oscilloscope must be selected and enabled
to verify that the board is functioning as intended.
1. Go to the Power Supply tab. In the Tracking ratio control field, select Tracking and set the positive supply to
+5V (the negative supply automatically inversely mirrors this). Click Enable to turn on the power supplies. See
Figure 8.
2. Go to the Oscilloscope tab.
3. Configure each channel by clicking the settings button beside the channel names. Set the vertical scale of both channel
to Volts/Div = 50 and Position = 0. In the Horizontal pane, set the Time Base = 2 and Position = 0 (horizontal scale
is uniform for both channel). See
4. Configure the trigger by clicking the Settings button beside it. Turn off the trigger. See
analog.com

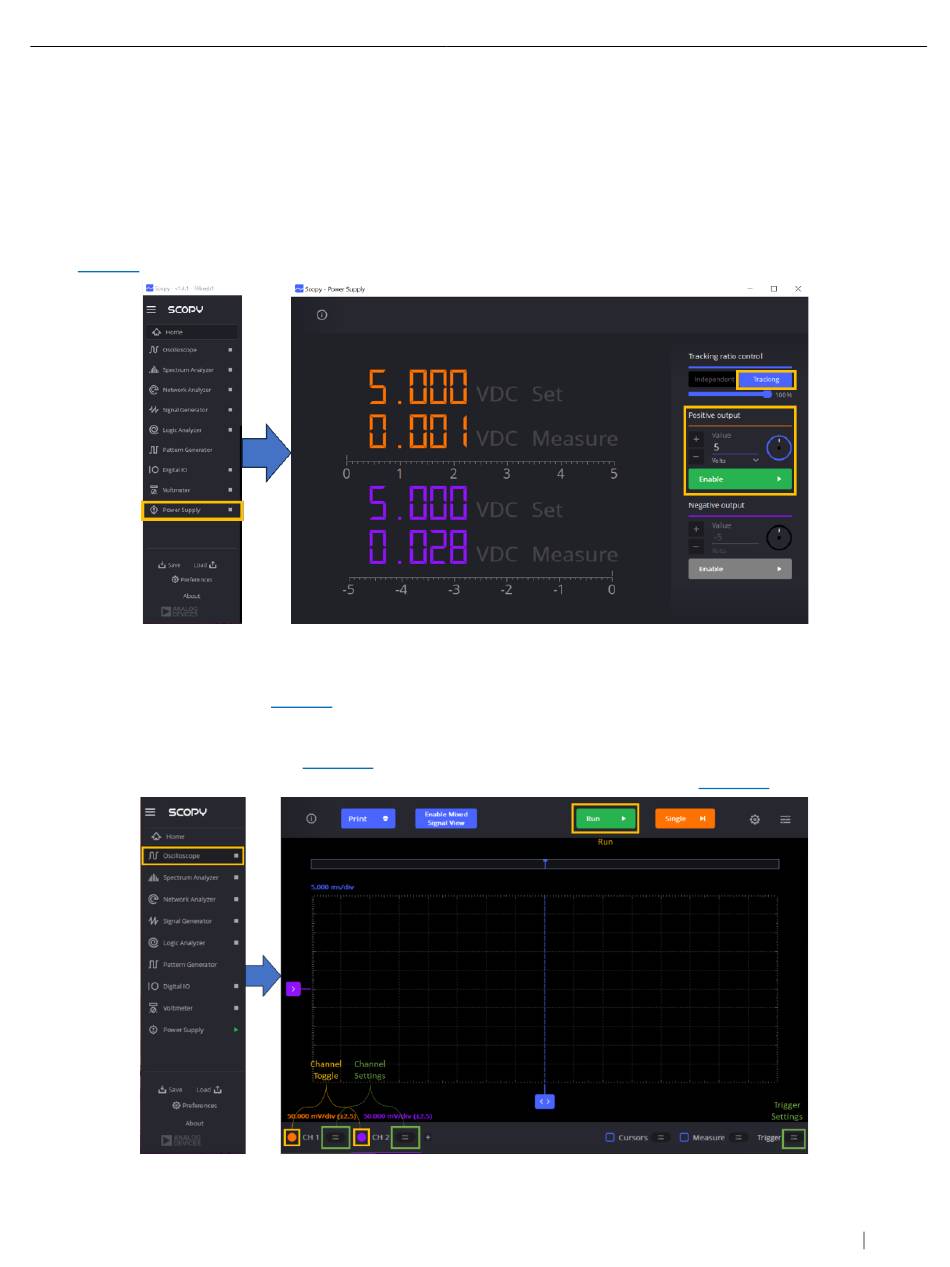

Figure 8. Setting the Power Supply
Figure 9 shows the UI and its functions.
Figure 10.
Figure 9. Oscilloscope UI of Scopy
EVAL-KW4501Z
Figure 10.
Rev 0 6 of 10
