AN082

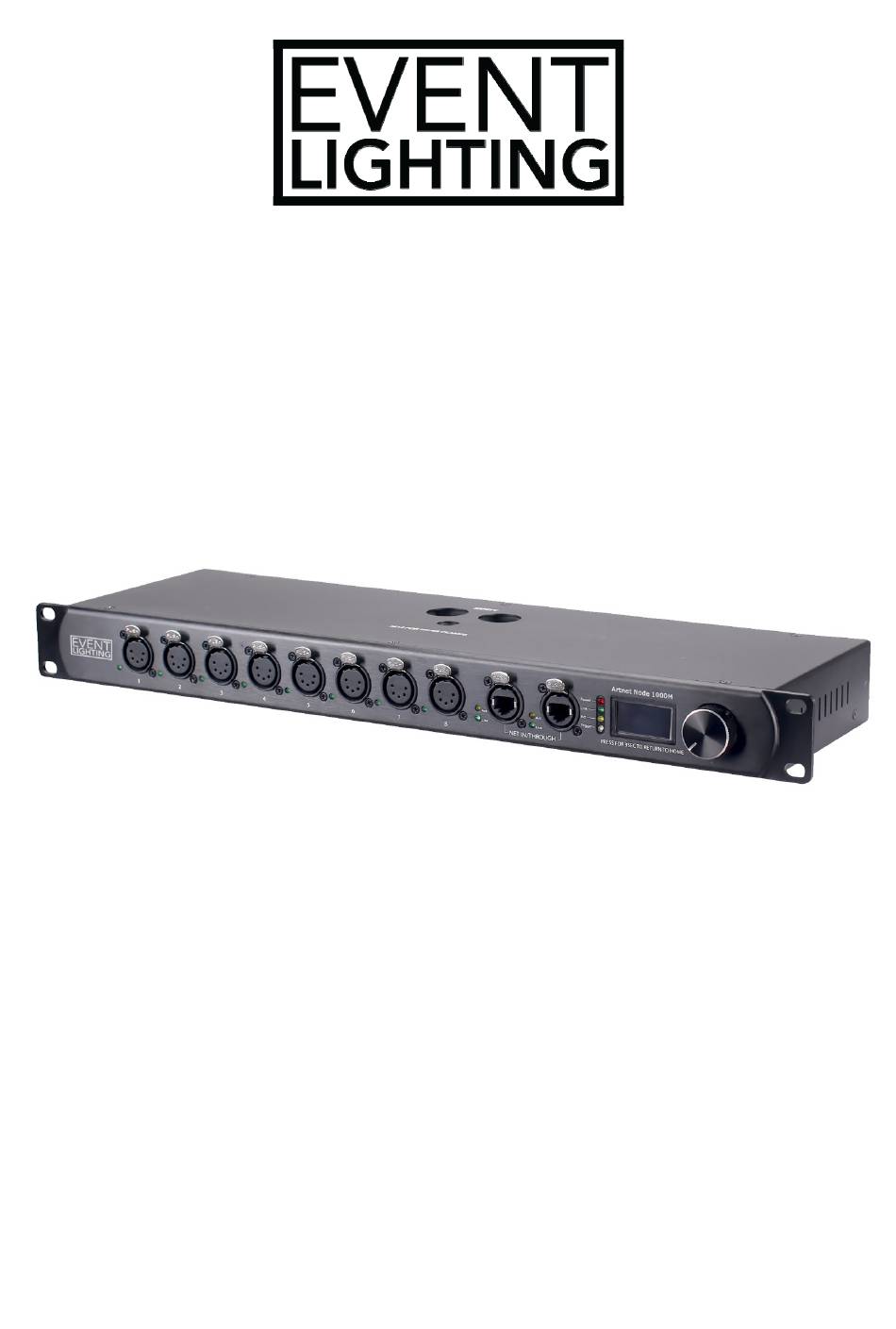

8 Universe Art-net Node
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual
are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or
omissions. Please consult Event Lighting for any clarification or information regarding this item.
Version: 1.0 (30 March 2023)

Advertisement

loading
Need help?

Need help?

Do you have a question about the AN082 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Event Lighting AN082

Summary of Contents for Event Lighting AN082

  • Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.

  • Page 2: Product Overview

    DMX In ports or to one of the Art -Net™ or sACN universes. Neutrik® etherCON® ports are through ports that allow daisy chaining of AN082 units. It provides a reliable, highly customizable network infrastructure for complex control systems. Merge two controllers into the AN082 via DMX, Art-Net™, or sACN, supporting both LTP (Latest Takes Precedence) and HTP (Highest Takes Precedence) functions.
  • Page 3 Signal Connection Diagrams Input Connections Diagram...

  • Page 4: Control Panel Operation

    The AN082 can be used as a DMX splitter, in which case the DMX In ports must be assigned to the DMX Out ports, but the Net, Subnet, and IP address settings may not need configuration.
  • Page 5 Menu Map...

  • Page 6: Operating Settings Configuration

    Operating Settings Configuration Home Screen The AN082 has a home screen which displays the current status of all ports. The home screen is displayed when the menu is not being accessed. To access the menu from the home screen, press the knob. To return to the home screen from the menu, select...

  • Page 7: Custom Device Name

    Use the knob to select either Enter to save the name, or Cancel to exit without saving. Press the knob. Set IP Mode The AN082 can use a pre-set static IP address, or it can be set manually. Static IP To set the AN082 to a pre-set static IP address, follow the instructions below: •...

  • Page 8: Set Netmask

    Press the knob. 3.Exit (to cancel) DMX Port Settings The AN082 has 8 DMX ports that can be set as outputs or inputs. To select a DMX port to configure, follow the instructions below: Use the knob to select 5.DMX Port Settings.

  • Page 9: Lcd Backlight

    DMX Merge The AN082 is capable of merging two signals of the same protocol into one, using HTP (Highest Takes Precedence), or LTP (Latest Takes Precedence) logic. Select the DMX port to configure as instructed in DMX Port Settings. Use the knob to select 2.DMX Merge.

  • Page 10: Factory Reset

    Use the knob to select from Scene 1–10. Press the knob. Scene Name The AN082 allows you to customize the name of each scene. To name a scene, do the following: Select the Scene to configure as instructed in Record Scenes.

  • Page 11: Trigger Settings

    Press the knob. Trigger Settings The AN082 can assign a trigger to an external switch to trigger a saved scene. Use the knob to select 10.Trigger Settings. Press the knob. Use the knob to select Trigger 1-4. Press the knob.
