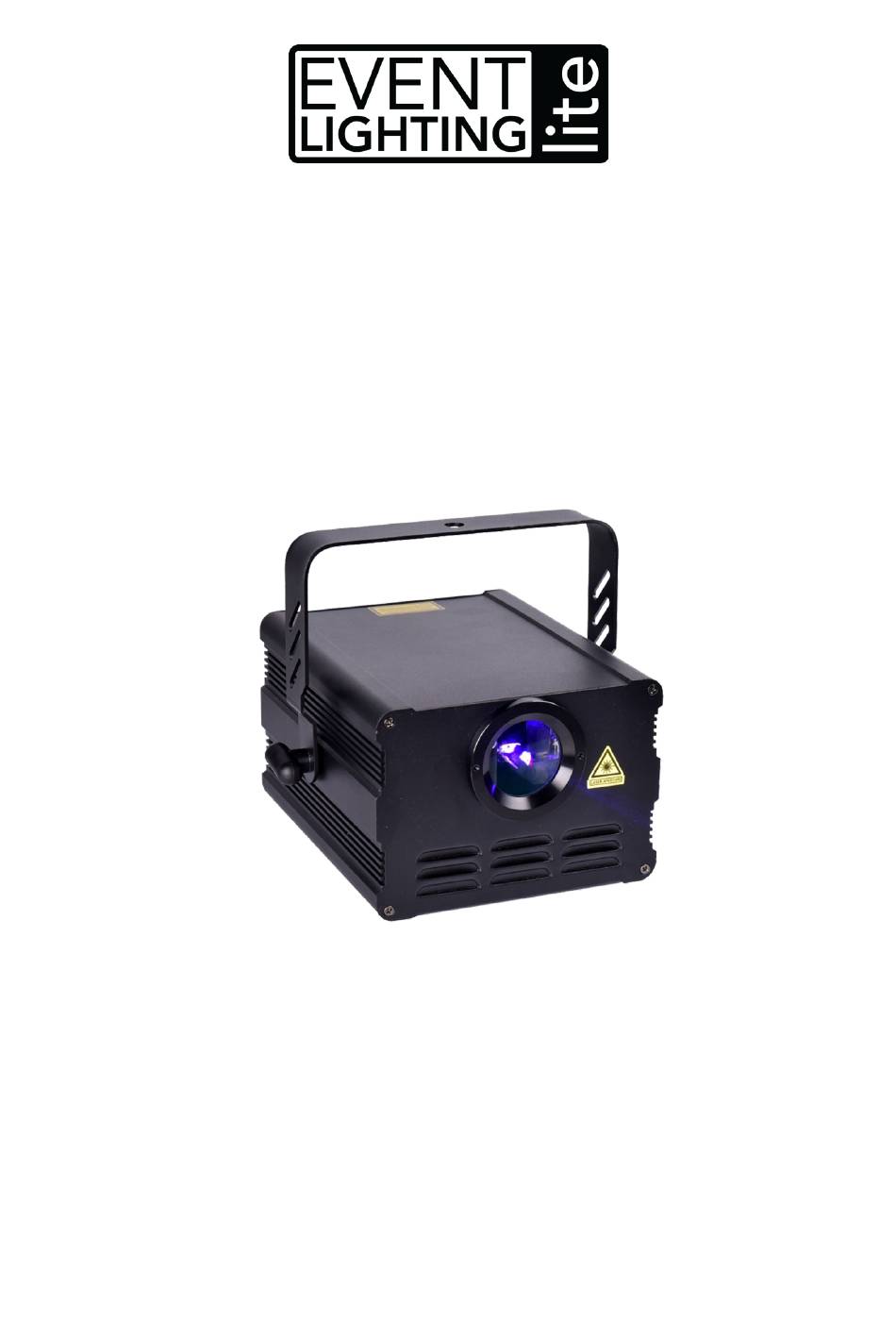

EL1000RGB

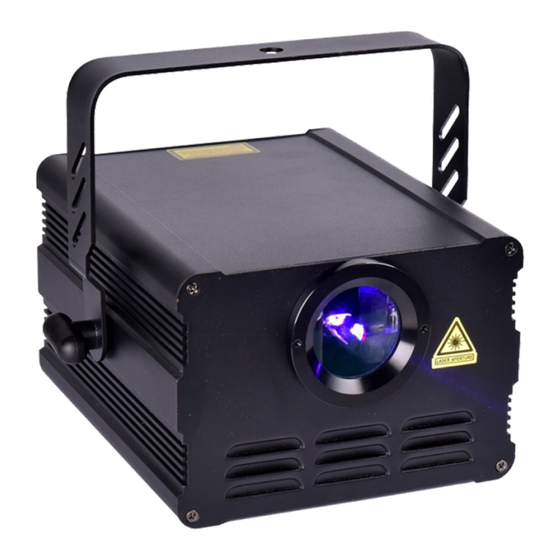

1000 mW RGB Mini Animation Laser
USER MANUAL
For your safety, please read this user manual carefully before use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications
within this manual are subject to change without notice. Event Lighting assumes no liability or
responsibility for any errors or omissions. Please consult Event Lighting for any clarification or
information regarding this item.
Version 1.0
Advertisement
Table of Contents
Related Manuals for Event Lighting EL1000RGB
Summary of Contents for Event Lighting EL1000RGB
- Page 1 For your safety, please read this user manual carefully before use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
- Page 2 • Do not assume a moving laser light is safe. Eye injury can occur instantly. • EL1000RGB must be installed at least 3 metres above ground level and 3 metres from any person. See the Product Installation section for details.
- Page 3 Product Installation • EL1000RGB can be mounted in many orientations, provided each individual device is secured by the use of the correct mounting bracket. • This device should be directed above the heads of people. Do not direct this device towards the line of sight of anyone.
- Page 4 www.event-lighting.com.au Menu Menu Values Function Addr 1-512 Set DMX address AUTO Auto mode 0-9 SOUN Sound active mode 0-9 VERSION Ver1.1 Software version DMX Chart Channel Function Min DMX Max DMX Description Laser Laser off on/off Laser on Colour Static colours, white-red-blue-pink-cyan-yellow- green control Colour change (speed controlled by Ch.
- Page 5 www.event-lighting.com.au Cycle zoom 1, speed slow to fast Cycle zoom 2, speed slow to fast Cycle zoom 3, speed slow to fast Rotation angle Centre rotation Clockwise rotation speed Anticlockwise rotation speed Flip horizontal location Horizontal rotation Flip horizontal speed Vertical Flip vertical location rotation...
- Page 6 • Surface temp: Tb=45ºC ( when the environment temp is 30ºC) • Working temp: 10ºC--65ºC • Modulation: TTL • Input voltage: AC100-240V, 50/60Hz • Fuse: BGDP ￠5x20mm 250VAC F2A • Product size: 188*193*173mm • Weight: 2.4Kg Warranty Please refer to your local dealer or contact Event Lighting.
