HAVOCW7X40

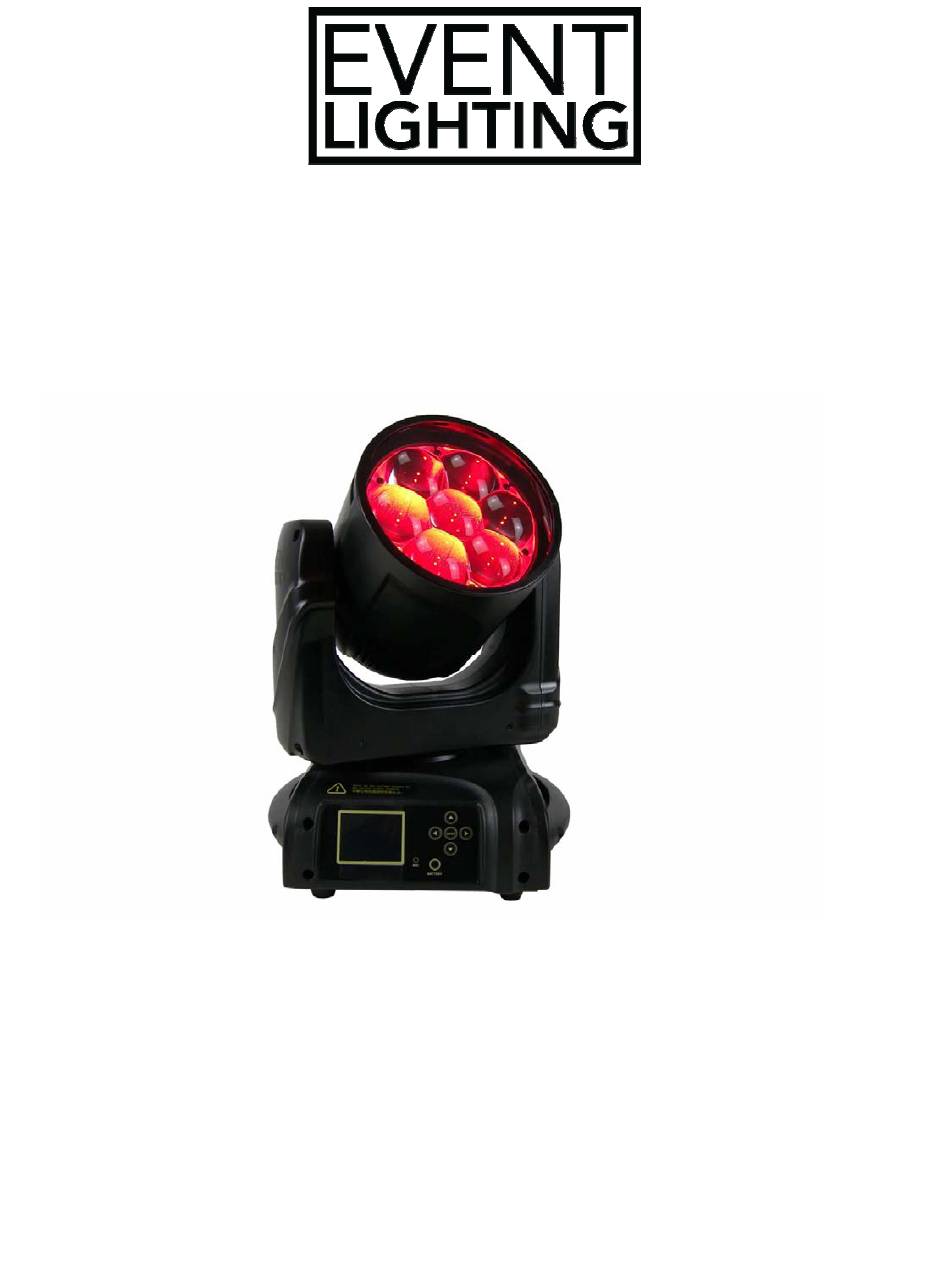

7x 40W Zoom Wash Moving Head
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors
or omissions. Please consult Event Lighting for any clarification or information regarding this item.
Version: 2 (5 September 2024)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting HAVOCW7X40
Summary of Contents for Event Lighting HAVOCW7X40
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
- Page 2 2 Safety Instructions Warning Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. Do not look at the light source when the device is on. Caution: This unit's housing may be hot during and after operation. ...
- Page 3 3 Dimensions www.event-lighting.com.au...
- Page 4 4 Menu Operation Menu – Move up a level. Up – Move selection up one item. Down – Move selection down one item. Enter – Select / Move down a level. Menu CONNECT FIXTURE VALUE (1-512)(001) ADDRESS PIXELS VALUE (1-512)(001) FIXTURE DMX/W-DMX/sACN/ARTNET CONTROL...
- Page 5 5 MERGE OFF/HTP/LTP MODE ETHERNET TO KLINGNET DMX FAULT HOLD/BLACKOUT TEMPERATUR Fahrenheit /Celsius E UNIT HIBERNATION OFF, 01M~99M(15MIN) FAN MODE AUTO/HIGH/SILENT LINEAR/S-CURVE/SQUARE DIMMER LAW/ INVERSE SQUARE CURVE DIMMER AUTO/FAST/MEDIUM/SLOW SPEED 600HZ/1200 HZ/2000 HZ/4000 FIXTURE FREQUENCY HZ/6000HZ/25KHZ/50KHz SETTINGS MENU En/Fr/Sp/简/ 繁 (En) LANGUAGE TRANSFER WITHOUT DMX ADDRESS...
- Page 6 6 NEAR SOURCE TEMPERATU TEMP, DRIVER PCB TEMP, LED PCB TEMP,… NEAR FAN SPEED SOURCE FAN, BASE FAN,… CHANNEL PAN... VALUE ERROR PAN, TILT... MESSAGE FIXTURE XXXXXXXXXX MODEL (READ AND RDM UID RESET) SOFTWARE 1U01 V1.0.00... VERSION RESET PAN & TILT PASSWORD CALIBRATIO MANUAL...
- Page 7 1, and second fixture at 27, third one at 53, etc. If multiple fixtures have the same DMX address, they will behave synchronically. Display will flash when no DMX signal is received. MODEL NAME:HAVOCW7X40 Channel name function Min DMX...
- Page 8 8 Control No Function/Safe Reserved Reserved PAN REVERSE ON PAN REVERSE OFF TILT REVERSE ON TILT REVERSE OFF PAN/TILT MODE FAST PAN/TILT MODE MEDIUM PAN/TILT MODE SLOW MOVEMENT IN BLACKOUT ON MOVEMENT IN BLACKOUT OFF HOME POSITION STANDAR HOME POSITION CUSTOM DISPLAY ON DISPLAY 10S...
- Page 9 9 RESET PAN/TILT RESET ZOOM Reserved FACTORY DEFAULT OF CO CTO on colors 0 - 100% Tint No FX FX 1 FX 2 FX 3 FX 4 FX 5 FX 6 FX 7 FX 8 FX 9 FX 10 FX 11 FX 12 FX 13...
- Page 10 10 Background 0 - 100% Green Background 0 - 100% Blue Background 0 - 100% White Ring 1 Red 0 - 100% Ring 1 Green 0 - 100% Ring 1 Blue 0 - 100% Ring 1 White 0 - 100% Ring 2 Red 0 - 100% Ring 2 Green...
- Page 11 Software: Upgradeable via DMX Housing Housing Materials: ABS and steel, matte black finish Cooling: Sensor controlled fan Net Weight: 7.4 kg Rigging: 2x Omega bracket with 1/4 turn quick locks Road Case: HAVOCW7X40C Warranty Please refer to your local dealer or please contact Event Lighting Pty Ltd. www.event-lighting.com.au...
