Summary of Contents for GVM GVM-SD300D

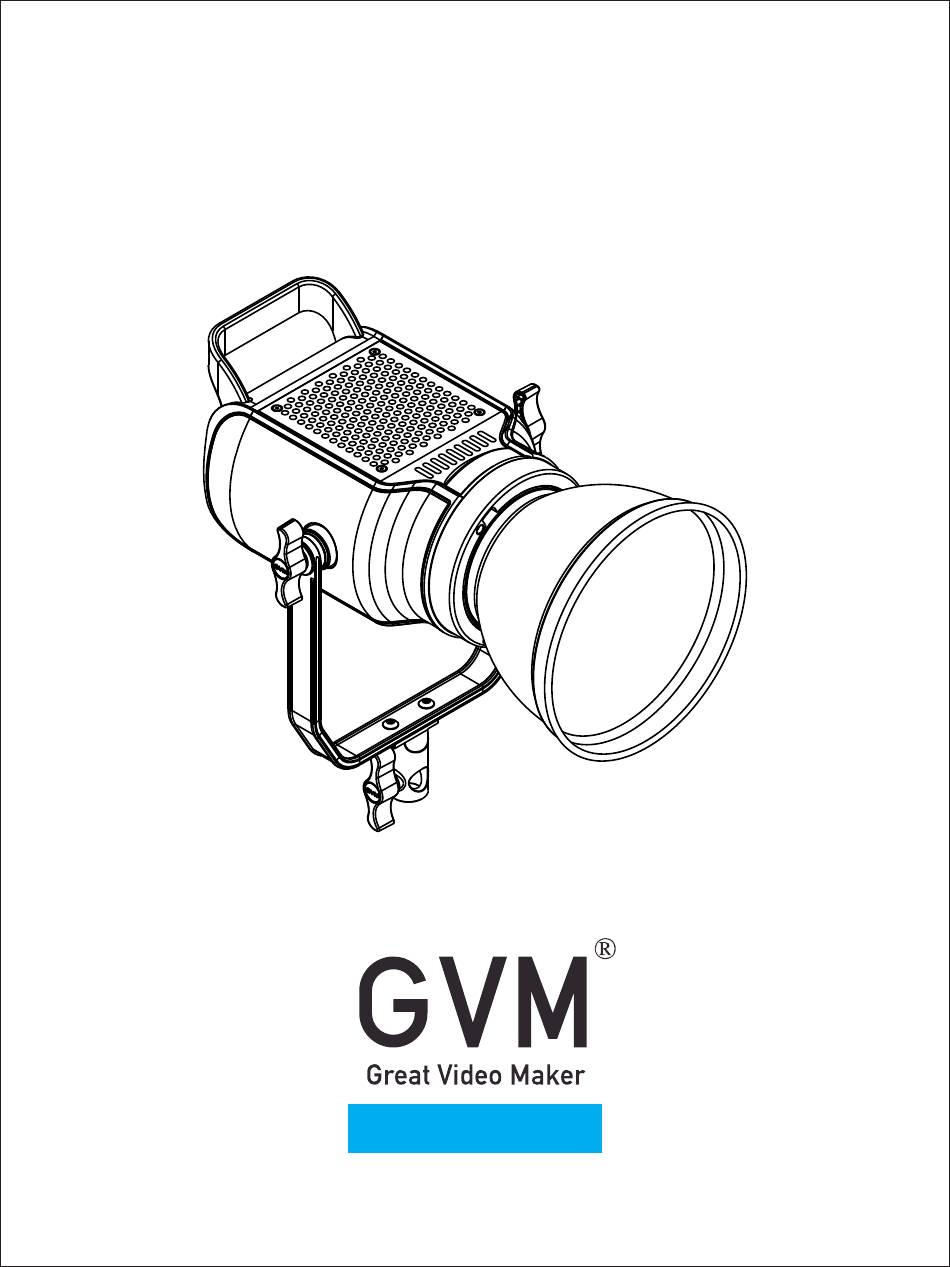

- Page 1 GVM-SD300D...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions --------------------------------------------- Page 1~2 Warning ----------------------------------------------------------------------- Page 2 Product Introduction ---------------------------------------------------------- Page 3 Disclaimers -------------------------------------------------------------------- Page 3 Product Parameter ------------------------------------------------------------ Page 4 Precautions -------------------------------------------------------------------- Page 4 Product Structure Diagram ---------------------------------------------------- Page 5 Installation Method -------------------------------------------------------- Page 6~8 Description Of Product Control Keys ----------------------------------------- Page 9 Function Introduction &... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS First and foremost: this product is professional lighting and staging equipment and should be used by a professional lighting technician or under the guidance of a professional. When using this product, you must always follow the cautions below: 1．Read the product manual carefully before use. -
Page 4: Warning
17.For some products with long power cords, please place the power cords properly and avoid contact with overheated surfaces that may damage or trip personnel. Please use the original power cords of our manufactory. The damage caused by using non-original power cords is not covered by our repair service. -
Page 5: Product Introduction
PRODUCT INTRODUCTION Thank you for purchasing our “GVM-SD300D”. This product is specifically designed for photography and videography enthusiasts. This product is suitable for use in live / outdoor / studio productions, and also for YouTube video shooting. The main features of the product are: 1．Stepless adjustment of light's brightness level, dual color temperature output... -
Page 6: Product Parameter
PRODUCT PARAMETER ◆ Brand : GVM ◆ Product Model : GVM-SD300D ◆ Product Name : LED Video Lights ◆ Product Type : COB Light ◆ Features : Multiple Lighting Modes, High CRI Rating LED Beads ◆ Control Methods : Wireless Master-Slave Mode, Bluetooth APP Control, LCD display screen, DMX Control ◆... -
Page 7: Product Structure Diagram
PRODUCT STRUCTURE DIAGRAM Vents Bowens Mount Release slider COB lamp bead Angle fifixing handle U-shaped frame Locking T-handle Junior pin receiver Junior pin receiver MODE Mode button LCD screen DMX input Compound knob DC IN ON/OFF switch DC input... -
Page 8: Installation Method
INSTALLATION METHOD The light can be installed and fixed on the light stand by rotating the locking knob clockwise, and be removed by rotating the locking knob counterclockwise. You can install the Bowens mount reflector by placing it in front of the Bowens mount of the light and then turn it slightly clockwise. - Page 9 Pull back the Bowens mount release slider while rotating the Standard bowens reflector counterclockwise to remove it from the light. Release Slider Loosen the angle fixing handle, adjust the angle of the spotlight to your needs, and then tighten the angle fixing handle.
- Page 10 Connect to the power cord to power the light through the DC input. DC input Connect to the DMX console through the DMX adapter cable. (DMX adapter cable is not included and needs to be purchased separately) DMX input...
-
Page 11: Description Of Product Control Keys
DESCRIPTION OF PRODUCT CONTROL KEYS MODE DC IN Power input. ON/OFF Switch. LCD display screen: display the current mode and parameters settings of the light. Compound knob: long press for 2 seconds to switch the light effect mode (CCT/SCENE), short press to switch to the parameter that needs to be adjusted, rotate the knob to adjust the light effect's parameter. -
Page 12: Function Introduction & Instructions For Use
FUNCTION INSTRUCTION & INSTRUCTION FOR USE ① LCD screen： Display the current brightness, control mode, light effect mode, light parameters, scene number, and channel value of the light. Channel number Battery power Scene number (lights up when the light is set to Control mode scene mode) (Only display the current... - Page 13 ④ Adjust color temperature (CCT): Range 2700K~7500K Rotate mode or master mode: Switch to color temperature adjustment by pressing the composite knob, and turn the composite knob to adjust the color temperature. APP mode: connect to the APP and adjust the color temperature through the APP. In DMX mode, adjust the color temperature through the DMX console.
-
Page 14: App Control
2．Turn on the light, switch mode to APP mode, confirm that the phone Bluetooth and APP Bluetooth permission is open (Android needs to open GPS and APP positioning permission).Then open the "GVM LED" application, enter the Bluetooth search interface (Figure 1) , find the Bluetooth named "BT_LED"... -
Page 15: Quick Troubleshooting
QUICK TROUBLESHOOTING Phenomenon Check the product Troubleshooting The switch Check the matching power adapter Make sure the adapter is well contacted with indicator does indicator light up or not. the power plug. not light up. The product is in 1. Restart the product. the "ON"... -
Page 16: Packing List
PACKING LIST Name Quantity Notes Photography Light Power Cord Adapter Standard Reflector Instruction... -
Page 17: Product Warranty
PRODUCT WARRANTY Dear user, this warranty card is important proof for applying for warranty service. Please cooperate with the salesperson to fill it out and keep it properly. Thank you! Model Number Product Barcode Product Information Name Contact Number User Information Mailing Address Name... -
Page 18: How To Obtain Warranty Service
8．Other malfunctions or damages not caused by quality issues of the product itself. In such cases, you should seek solutions from the relevant responsible parties, and GVM will not be held liable. Malfunctions or damages caused by components, accessories, or software not covered by the warranty or beyond the warranty scope that renders the product unable to function properly are not covered by the warranty. - Page 19 Download APP GVM Official website Facebook Huizhou Latu Film Equipment Co., Ltd. Web: www.gvmled.com B&H Email: bh@gvmled.com GVM Email: support@gvmled.com Amazon Email: amazonsupport@gvmled.com Warehouse Address: 12285 MCNULTY RD, STE 105 PHILADELPHIA, Pennsylvania 19154, USA...
