Summary of Contents for GVM GVM-SD500B-ARO

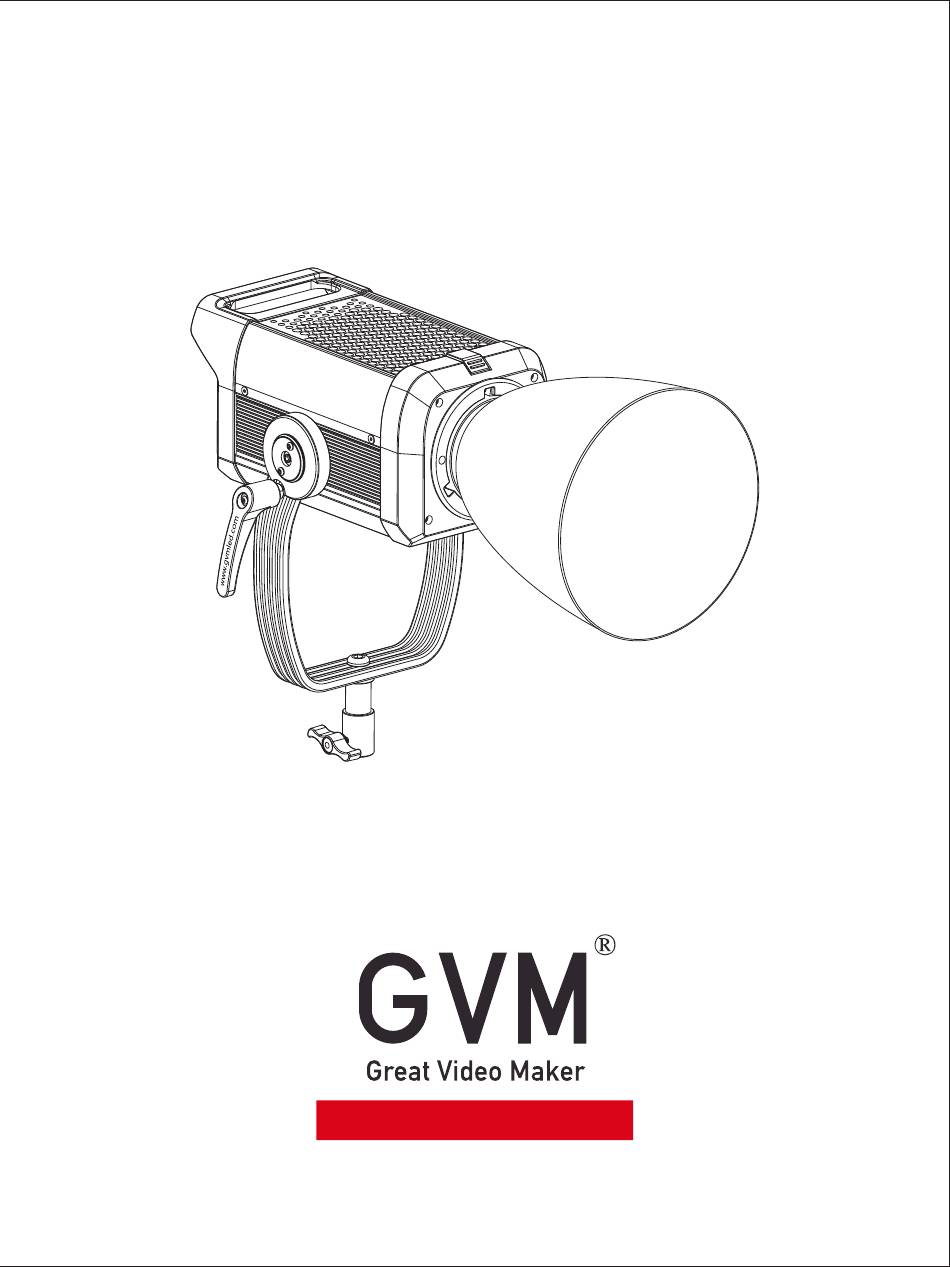

- Page 1 GVM-SD500B-ARO...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions --------------------------------------------- Page 1~2 Warning ----------------------------------------------------------------------- Page 2 Product Introduction ---------------------------------------------------------- Page 3 Disclaimers -------------------------------------------------------------------- Page 3 Product Parameter ------------------------------------------------------------ Page 4 Precautions -------------------------------------------------------------------- Page 4 Product Structure Diagram --------------------------------------------------- Page 5 Installation Method -------------------------------------------------------- Page 6~7 Description Of Product Control Keys ----------------------------------------- Page 8 Function Introduction &... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS First and foremost: this product is professional lighting and staging equipment and should be used by a professional lighting technician or under the guidance of a professional. When using this product, you must always follow the cautions below: 1．Read the product manual carefully before use. -
Page 4: Warning
17.For some products with long power cords, please place the power cords properly and avoid contact with overheated surfaces that may damage or trip personnel. Please use the original power cords of our manufactory. The damage caused by using non-original power cords is not covered by our repair service. -
Page 5: Product Introduction
2．APP control, Enhance your lighting experience with the [GVM Link] APP, available for both iOS and Android devices. Utilizing the innovative GVM Mesh Bluetooth networking system, this app allows for seamless connectivity and effortless control. -
Page 6: Product Parameter
LED COB Light ◆ Features : CCT/FX Modes, New LCD Display, High Definition COB LED Beads ◆ Control Methods : GVM Mesh Bluetooth APP Control, On Board Control ◆ Bluetooth Controllable Distance : ≤50M ◆ Light Adjustment Method : Step-less Adjustment ◆... -
Page 7: Product Structure Diagram
PRODUCT STRUCTURE DIAGRAM Cooling vents Bowens mount release clip Bowens mount COB light chip U-frame Angle lock handle T-Handle / Baby pin mounting screw Baby pin receiver / Mounting column Display screen Settings button / Return button Mode button / Selection knob Power button Power input connector... -
Page 8: Installation Method
INSTALLATION METHOD Loosen the light stand fixing knob, then mount the light onto the light stand as shown below, then tighten the light stand fixing knob to fix the light in place. Loosen the angle locking handle, adjust the angle of the spotlight, then tighten the angle locking handle to fix the light in desired position. - Page 9 Insert the standard Bowens Reflector into the corresponding Bowens mount socket of the light, then turn it clockwise gently. To remove the reflector from the light, pull back the Bowens mount release clip and rotate the reflector counterclockwise. Attach Detach Connect the power cord to the power supply.
-
Page 10: Description Of Product Control Keys
DESCRIPTION OF PRODUCT CONTROL KEYS Power ON/OFF button: Power status of the connected/disconnected light. Display screen: Display current settings, modes and parameters. Settings button / Return button: 1. Press and hold to enter [System Settings]. 2. Click to return to the previous menu. Mode button / Select knob: 1. -
Page 11: Function Introduction & Instructions For Use
FUNCTION INTRODUCTION & INSTRUCTIONS FOR USE ① CCT Mode： Light intensity and color temperature can be adjusted in this mode. Turn the knob to select the parameters you want to adjust → Click the knob to enter the parameter settings → for selected items → Turn the knob to adjust parameter values →... -
Page 12: Preparation For Connection
APP CONNECT 【GVM Link】APP installation method: Android: Download from the GVM official website, or scan the QR code to download. iOS: Download from the App Store. Preparation for connection: 1．Start the device → E150 Bluetooth Settings → Bluetooth on → Bluetooth reset. -
Page 13: Lighting Control
3．Select the device in the search list → Start connecting. Lighting control: Select the connected lighting device → Select Control Mode → Adjust lighting parameters. OTA Firmware upgrade: 1. Click the menu button on the right of the lighting device → Select Firmware update from the menu →... -
Page 14: Use And Preservation
2. Select new avalible firmware → Click Update. 3. The firmware upgrade usually takes 5-10 minutes. During the upgrade, do not leave the current page and keep the device connected. USE AND PRESERVATION Do not place the product in a high humidity, strong electromagnetic field, direct sunlight, or high-temperature environment. -
Page 15: Quick Troubleshooting
2. Refer to the APP [Connection Steps], reset the connection range. the Bluetooth of the device to reconnect. PACKING LIST Quantity Name Notes GVM COB Spotlight Standard Reflector Spotlight Protective Cover Power Cable Magic Cable Tie Instructions... -
Page 16: Product Warranty
PRODUCT WARRANTY Dear user, this warranty card is important proof for applying for warranty service. Please cooperate with the salesperson to fill it out and keep it properly. Thank you! Model Number Product Barcode Product Information Name Contact Number User Information Mailing Address Name... -
Page 17: How To Obtain Warranty Service
8．Other malfunctions or damages not caused by quality issues of the product itself. In such cases, you should seek solutions from the relevant responsible parties, and GVM will not be held liable. Malfunctions or damages caused by components, accessories, or software not covered by the warranty or beyond the warranty scope that renders the product unable to function properly are not covered by the warranty. - Page 18 GVM Official Website Facebook Huizhou Latu Film Equipment Co., Ltd. Web: www.gvmled.com B&H Email: bh@gvmled.com GVM Email: support@gvmled.com Amazon Email: amazonsupport@gvmled.com Warehouse Address: 12285 MCNULTY RD, STE 105 PHILADELPHIA, Pennsylvania 19154, USA...
