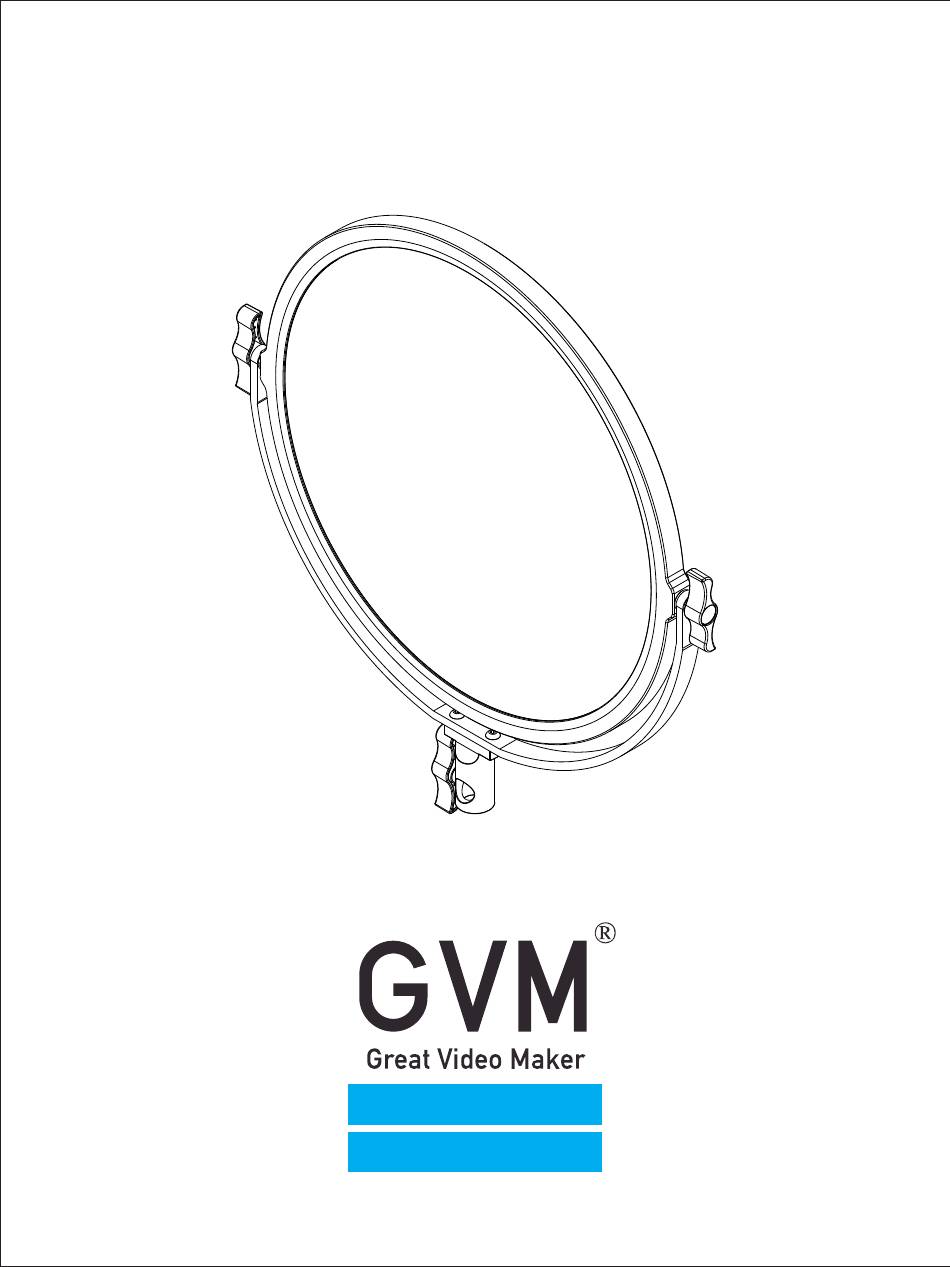

- Page 1 GVM-Y30D160 GVM-Y60D256...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions ---------------------------------------------- Page 1~2 Warning ------------------------------------------------------------------------ Page 2 Product Introduction ---------------------------------------------------------- Page 3 Disclaimers -------------------------------------------------------------------- Page 3 Product Parameter ------------------------------------------------------------ Page 4 Product Structure Analysis ---------------------------------------------------- Page 5 Installation Method -------------------------------------------------------- Page 6~7 Description Of Product Control Keys ----------------------------------------- Page 8 Function Introduction &... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS First and foremost: this product is professional lighting and staging equipment and should be used by a professional lighting technician or under the guidance of a professional. When using this product, you must always follow the cautions below: 1．Read the product manual carefully before use. -
Page 4: Warning
17.For some products with long power cords, please place the power cords properly and avoid contact with overheated surfaces that may damage or trip personnel. Please use the original power cords of our manufactory. The damage caused by using non-original power cords is not covered by our repair service. -
Page 5: Product Introduction
PRODUCT INTRODUCTION Thank you for purchasing "GVM-Y30D160/GVM-Y60D256". This product is specially designed for senior photography enthusiasts. The product is suitable for live / outdoor / studio photography, and also for YouTube video shooting. The main features of the product are: 1．Step-less adjustable dual color temperature feature, color range 3200K ~ 5600k. -
Page 6: Product Parameter
PRODUCT PARAMETER Product Model : GVM-Y30D160 Product Model : GVM-Y60D256 ◆ ◆ Brand: GVM Brand: GVM ◆ ◆ Product Name: Photography Lights Product Name: Photography Lights ◆ ◆ Product Type ：Photography Fill Light Product Type: Photography Fill Light ◆ ◆... -
Page 7: Product Structure Diagram
PRODUCT STRUCTURE DIAGRAM Angle fixing knob U-frame Lamp holder fixing knob Lamp rack interface Lamp rack interface LCD display screen Cooling hole Integrated control Battery tank channel Select button Mode / WIFI reset Custom shortcut MODE button Battery Adapter 3200K 5600K INTENSITY Power switch... -
Page 8: Installation Method
INSTALLATION METHOD The lamp can be installed and fixed on the bracket by rotating the knob clockwise, and unloaded by rotating in the counterclockwise direction. Loosen the adjustment knobs on both sides of the U-frame, adjust the angle of the panel you need, and then tighten the adjustment knobs on both sides of the U-frame. - Page 9 There are two power supply modes to choose. 1．Connect the power cord and adapter for power supply. 2．Purchase two other suitable lithium batteries and use them for power supply. ( both battery cells must be plugged in to power ) MODE Battery Adapter...
-
Page 10: Description Of Product Control Keys
DESCRIPTION OF PRODUCT CONTROL KEYS MODE Battery Adapter 3200K 5600K INTENSITY DC15V power input Power switch Mode key / WIFI reset key : Short press to switch modes: self-control, slave, master and WIFI mode;long press for more than 5 seconds to reset WIFI. Channel Adjust key : Adjust channel Custom shortcut keys : Each button can be customized to store a set of light parameters. -
Page 11: Function Introduction & Instructions For Use
FUNCTION INTRODUCTION & INSTRUCTIONS FOR USE ① Mode selection: Short press the mode button to switch modes, the modes include: self-control, slave, master and WIFI mode. Self-control mode (Rotate): Adjust the lights with the controller. Slave mode (Slave): The channel can only be adjusted by the ▲ and ▼ buttons of the controller. -
Page 12: App Control
⑥ Mesh control (Joint control between lamps and lamps): Prepare more than two video lights, set one as the master mode and the others as slave mode, and set all video lights on the same channel, so that the slaves can be synchronized by adjusting the light parameters of the master. -
Page 13: App Introduction
4．After ensuring WiFi connected, start APP, and when "device connected" displayed on the upper part of the main interface, you can start to control the video light. Note: The WiFi hotspot of the device is a local area network, which cannot access the external network after connection, please connect and use it as needed. -
Page 14: Quick Troubleshooting
QUICK TROUBLESHOOTING Phenomenon Check the product Troubleshooting 1．Check the matching power adapter Make sure the adapter is well contacted indicator light up or not. with the power plug. The switch indicator does not light up. 2．When using lithium battery, make sure there's no "low power"... -
Page 15: Use And Preservation
USE AND PRESERVATION Do not place the product in a high humidity, strong electromagnetic field, direct sunlight, or high-temperature environment. If the product will not be used for a long time, please disconnect power and remove the battery. Clean: Before cleaning, disconnect the power plug. And use a damp cloth instead of any detergent or soluble liquids to avoid damaging the surface layer. -
Page 16: Packing List
PACKING LIST Name Quantity Notes Photography Light Power Cord Adapter Carrying Case Instructions... -
Page 17: Product Warranty
PRODUCT WARRANTY Dear user, this warranty card is important proof for applying for warranty service. Please cooperate with the salesperson to fill it out and keep it properly. Thank you! Model Number Product Barcode Product Information Name Contact Number User Information Mailing Address Name... - Page 18 8．Other malfunctions or damages not caused by quality issues of the product itself. In such cases, you should seek solutions from the relevant responsible parties, and GVM will not be held liable. Malfunctions or damages caused by components, accessories, or software not covered by the warranty or beyond the warranty scope that renders the product unable to function properly are not covered by the warranty.
- Page 19 Download APP GVM Official website Facebook Huizhou Latu Film Equipment Co., Ltd. Web: www.gvmled.com B&H Email: bh@gvmled.com GVM Email: support@gvmled.com Amazon Email: amazonsupport@gvmled.com Warehouse Address: 12285 MCNULTY RD, STE 105 PHILADELPHIA, Pennsylvania 19154, USA...
