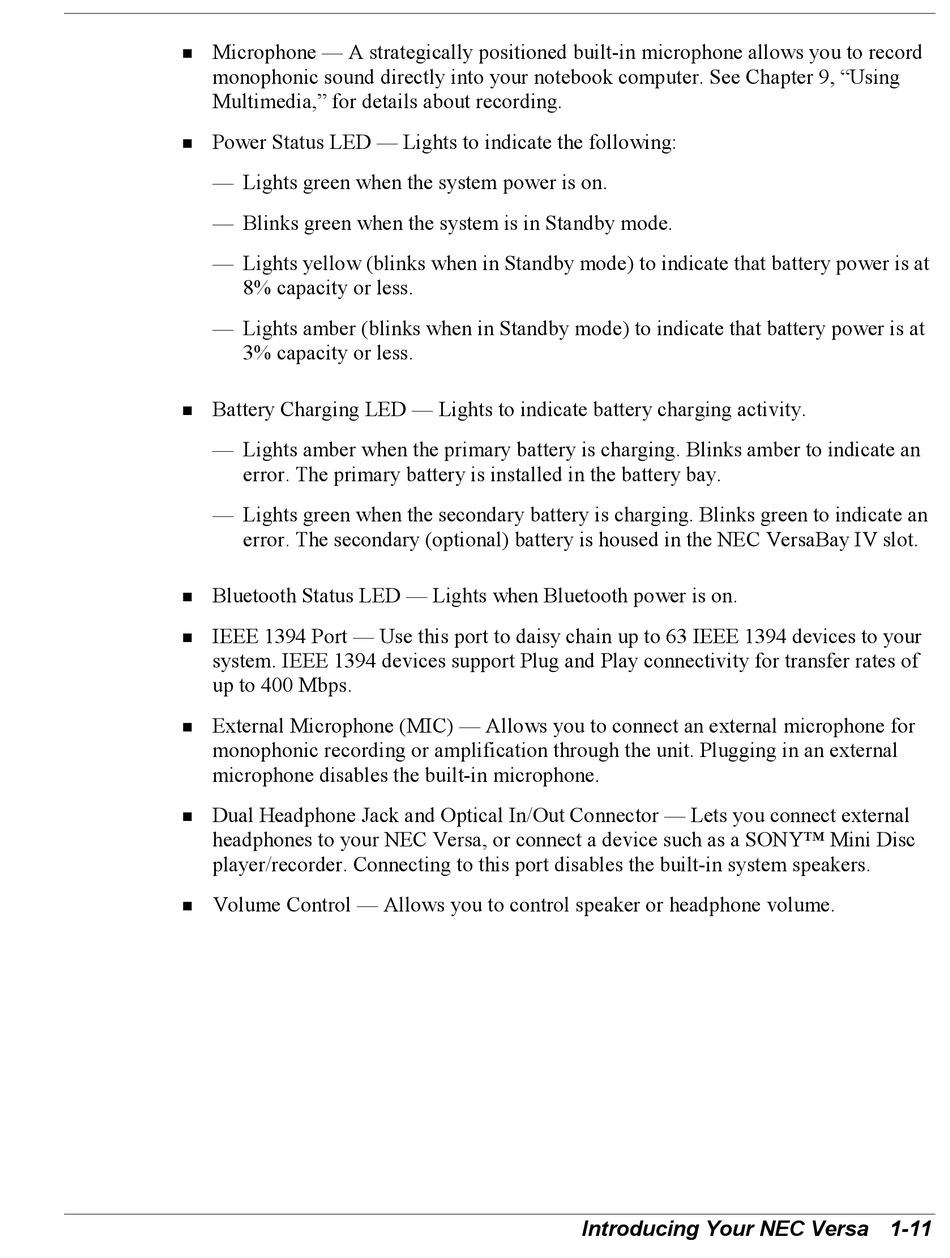

NEC VERSA TXI Manual page 19

Microphone — A strategically positioned built-in microphone allows you to record
!
monophonic sound directly into your notebook computer. See Chapter 9, "Using
Multimedia," for details about recording.
Power Status LED — Lights to indicate the following:
!
— Lights green when the system power is on.
— Blinks green when the system is in Standby mode.
— Lights yellow (blinks when in Standby mode) to indicate that battery power is at
8% capacity or less.
— Lights amber (blinks when in Standby mode) to indicate that battery power is at
3% capacity or less.
Battery Charging LED — Lights to indicate battery charging activity.
!
— Lights amber when the primary battery is charging. Blinks amber to indicate an
error. The primary battery is installed in the battery bay.
— Lights green when the secondary battery is charging. Blinks green to indicate an
error. The secondary (optional) battery is housed in the NEC VersaBay IV slot.
Bluetooth Status LED — Lights when Bluetooth power is on.
!
IEEE 1394 Port — Use this port to daisy chain up to 63 IEEE 1394 devices to your
!
system. IEEE 1394 devices support Plug and Play connectivity for transfer rates of
up to 400 Mbps.
External Microphone (MIC) — Allows you to connect an external microphone for
!
monophonic recording or amplification through the unit. Plugging in an external
microphone disables the built-in microphone.
Dual Headphone Jack and Optical In/Out Connector — Lets you connect external
!
headphones to your NEC Versa, or connect a device such as a SONY™ Mini Disc
player/recorder. Connecting to this port disables the built-in system speakers.
Volume Control — Allows you to control speaker or headphone volume.
!
Introducing Your NEC Versa 1-11
