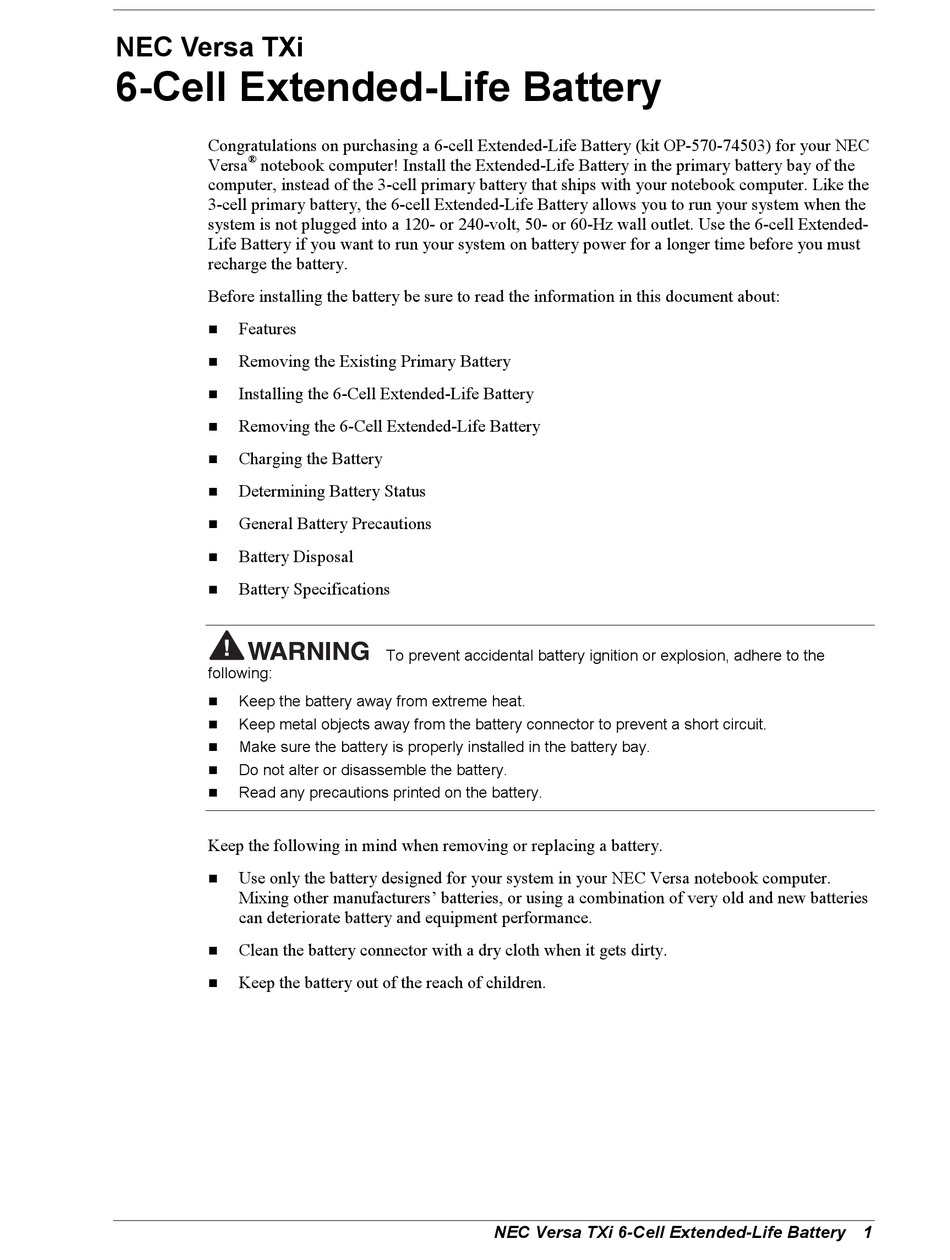

NEC Versa TXi
6-Cell Extended-Life Battery
Congratulations on purchasing a 6-cell Extended-Life Battery (kit OP-570-74503) for your NEC
®
Versa
notebook computer! Install the Extended-Life Battery in the primary battery bay of the
computer, instead of the 3-cell primary battery that ships with your notebook computer. Like the
3-cell primary battery, the 6-cell Extended-Life Battery allows you to run your system when the
system is not plugged into a 120- or 240-volt, 50- or 60-Hz wall outlet. Use the 6-cell Extended-
Life Battery if you want to run your system on battery power for a longer time before you must
recharge the battery.
Before installing the battery be sure to read the information in this document about:
Features
!
Removing the Existing Primary Battery
!
Installing the 6-Cell Extended-Life Battery
!
Removing the 6-Cell Extended-Life Battery
!
Charging the Battery
!
Determining Battery Status
!
General Battery Precautions
!
Battery Disposal
!
Battery Specifications
!
following:
Keep the battery away from extreme heat.
!
Keep metal objects away from the battery connector to prevent a short circuit.
!
Make sure the battery is properly installed in the battery bay.
!
Do not alter or disassemble the battery.
!
Read any precautions printed on the battery.
!
Keep the following in mind when removing or replacing a battery.
Use only the battery designed for your system in your NEC Versa notebook computer.
!
Mixing other manufacturers' batteries, or using a combination of very old and new batteries
can deteriorate battery and equipment performance.
Clean the battery connector with a dry cloth when it gets dirty.
!
Keep the battery out of the reach of children.
!
To prevent accidental battery ignition or explosion, adhere to the
NEC Versa TXi 6-Cell Extended-Life Battery 1

Advertisement

   Summary of Contents for NEC VERSA TXI 6-CELL EXTENDED-LIFE BATTERY

  • Page 1

    Read any precautions printed on the battery. Keep the following in mind when removing or replacing a battery. Use only the battery designed for your system in your NEC Versa notebook computer. Mixing other manufacturers’ batteries, or using a combination of very old and new batteries can deteriorate battery and equipment performance.

  • Page 2

    Features The NEC Versa Extended-Life Battery is used as the main source of power when your system is not plugged into an AC power source. See the following figure for Extended-Life Battery features. The Extended-Life Battery A – Alignment Grooves B –...

  • Page 3

    Slide the battery into the bay until securely locked into place. Inserting the battery A – Connector in Battery Bay C – Alignment Grooves in Battery Bay B – Battery Release Latch D – Extended-Life Battery Turn the system over. NEC Versa TXi 6-Cell Extended-Life Battery 3...

  • Page 4: Charging The Battery

    The Extended-Life Battery is the primary battery in your system. Charge a primary battery and secondary battery (if any) by simply connecting your NEC system to an AC power source. To monitor the charging activity, observe the battery charging LED on the front of the system. The battery charging LED lights as follows: Lights amber when the Extended-Life Battery (primary battery) is charging.

  • Page 5: Battery Disposal

    Battery Specifications 6-cell lithium ion (Li-Ion) battery primary (main) system battery output voltage of 11.1V, 3800 - 4000 mAh weight 305 g (.672 LB) NEC Versa TXi 6-Cell Extended-Life Battery 5...

  • Page 6

    Information in this publication is subject to change without notice. NEC is a registered trademark and Versa is a U.S. registered trademark of NEC Corporation and/or one or more of its subsidiaries. Both are used under license. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other trademarks and registered trademarks are the property of their respective owners.
