Lapierre Overvolt AM 6.6 Assembly Drawing page 22

STEP TOOLS PICTURE
8
Battery
installation
Battery Lock: FROT0115 or LO0001
Parts:
LPBATLK GEN4 Battery lock
Standard Operating Procedure – Battery assembly
MY20 OV GEN4 AL / HYB ASX
AL alloy

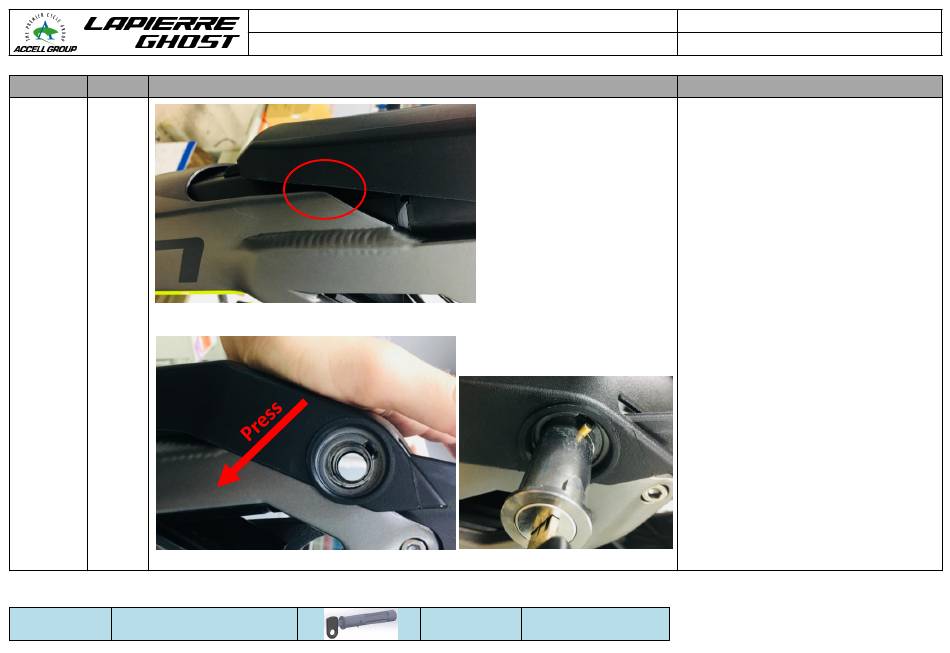

INSTRUCTIONS
1. Slowly insert the battery into the DT
2. Slightly lift up the battery to not hook the
3. Press down onto the battery handle
4. Insert the battery lock: lock index, lock
Silver
15/11/2019
Page 9 of 9
parallel with the DT axis
DT edges
pin and frame groove must be aligned
