Lapierre Overvolt AM 6.6 Assembly Drawing page 21

STEP TOOLS
Brake cleaner
7
(spray)
Rubber
guides
installation
Battery Holder Set: FROT0080
Parts:
GEN4 Battery rubber guide
WI-38L-107-6
2pcs

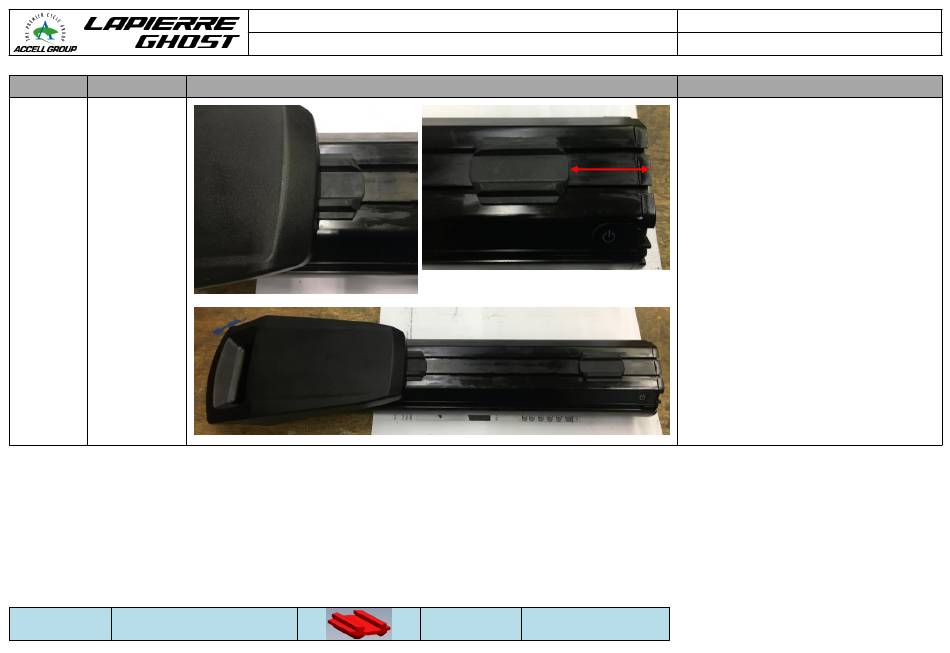

Standard Operating Procedure – Battery assembly
MY20 OV GEN4 AL / HYB ASX
60mm
TPR70 Black
15/11/2019
Page 8 of 9
INSTRUCTIONS
1. Spray some brake cleaner on the rubber
guide rails
2. Insert the rubber guides into the battery
rails
3. Adjust the rubber guides in correct
position:
- 1pc at 60mm from battery end
- 1pc at battery handle level
