Lapierre Overvolt AM 6.6 Assembly Drawing page 12

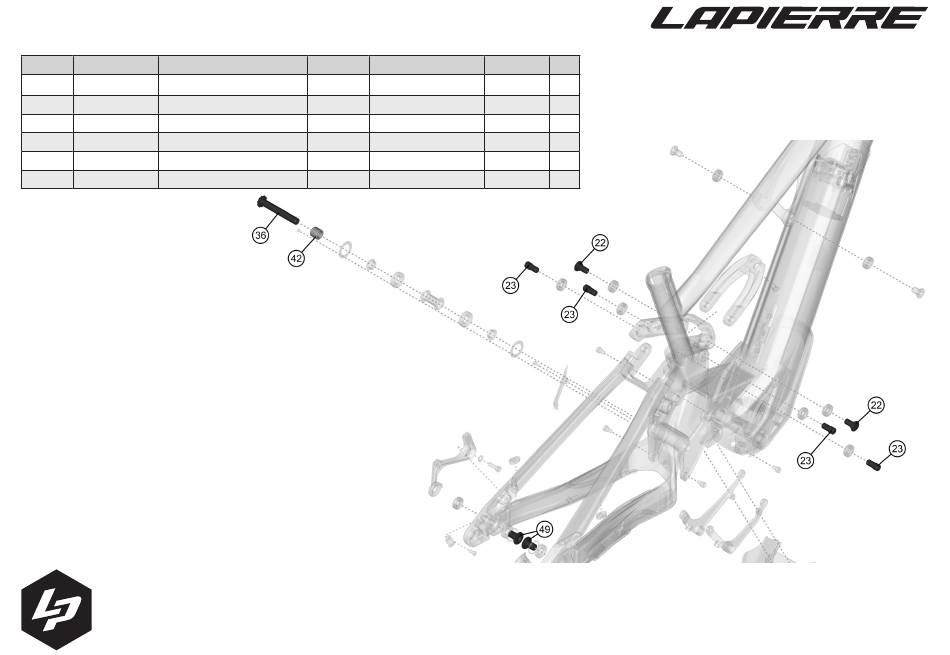

ÜBERSICHTSZEICHNUNG
ASSEMBLY DRAWING
BOM-ID Description Specification
Axle & srew kit
22 Bolt for Rocker Hex 6 - ø14 (M10) x 17,5 mm 14-18 Nm 7760-04008-0019
23 Bolt for Rocker Hex 6 - ø12 (M10) x 17 mm 14-18 Nm 7760-04008-0020
36 Main bolt Hex 6 - ø12 (M12) x 84 mm 18-20 Nm 7760-04008-0017
42 Bushing ø 12 x Ø 18 x 15,5 mm
49 Bolt TX30 - ø 12 x Ø 23 x 21 mm 14-18 Nm 7760-04008-0018
axle & screw kit
Torque Drawing no. supplier Item no.
7764-02001-0051
Item no. axle and screw kit: KE0305
QTY
KE0305 1
FROT0125 2
FROT0126 4
FROT0132 1
FROT0135 1
FROT0141 2
Overvolt AM 6.6 / 7.6 / 8.6 (MY21)
date: 18-12-2020
version: 01
page 12 / 13
