Lapierre Overvolt AM 6.6 Assembly Drawing page 16

STEP TOOLS
PVC insulating tape
2
Scissors
Power
cables
taping
Standard Operating Procedure – Battery assembly
MY20 OV GEN4 AL / HYB ASX
40mm
15/11/2019
Page 3 of 9

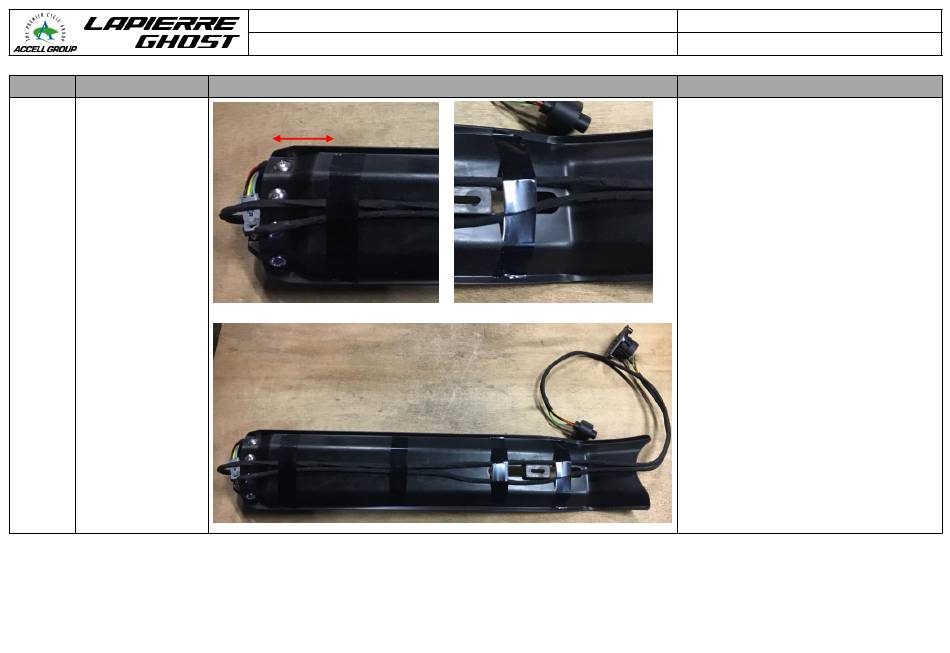

INSTRUCTIONS
1. On the connector side, tape the power
cables onto the battery rail (back side) at
40mm from the end of the battery rail.
2. On the opposite side, tape the power
cables where the battery rail is bended
3. Put 2 more tape pcs in the middle at
equal distance
