Lapierre Overvolt AM 6.6 Assembly Drawing page 10

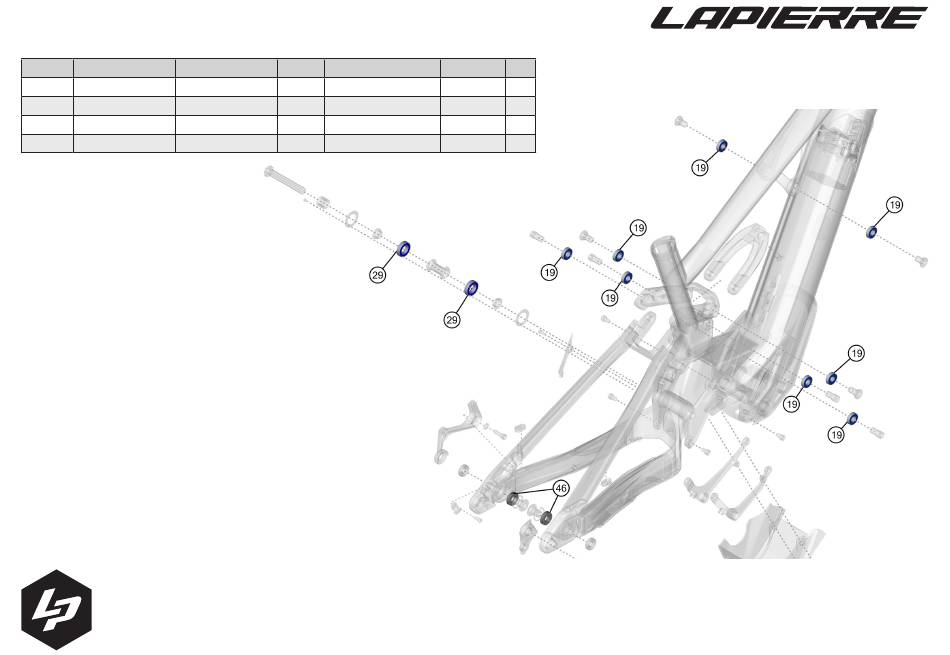

ÜBERSICHTSZEICHNUNG
ASSEMBLY DRAWING
BOM-ID Description Specification
Bearing kit
19 Bearing 6900 2RS ø 10 x Ø 22 x 6 mm
29 Bearing 6902 2RS ø 15 x Ø 28 x 7 mm
46 Bearing 6901 2RS ø 12 x Ø 24 x 6 mm
bearing kit
Torque Drawing no. supplier Item no.
7287-01004-0025
7287-01004-0012
7287-01004-0011
Item no. bearing kit: KE0306
QTY
KE0306 1
FROT0119 8
FROT0128 2
FROT0136 2
Overvolt AM 6.6 / 7.6 / 8.6 (MY21)
date: 18-12-2020
version: 01
page 10 / 13
