Lapierre Overvolt AM 6.6 Assembly Drawing page 18

STEP TOOLS PICTURE
4
Cable
routing
Standard Operating Procedure – Battery assembly
MY20 OV GEN4 AL / HYB ASX
15/11/2019
Page 5 of 9
INSTRUCTIONS

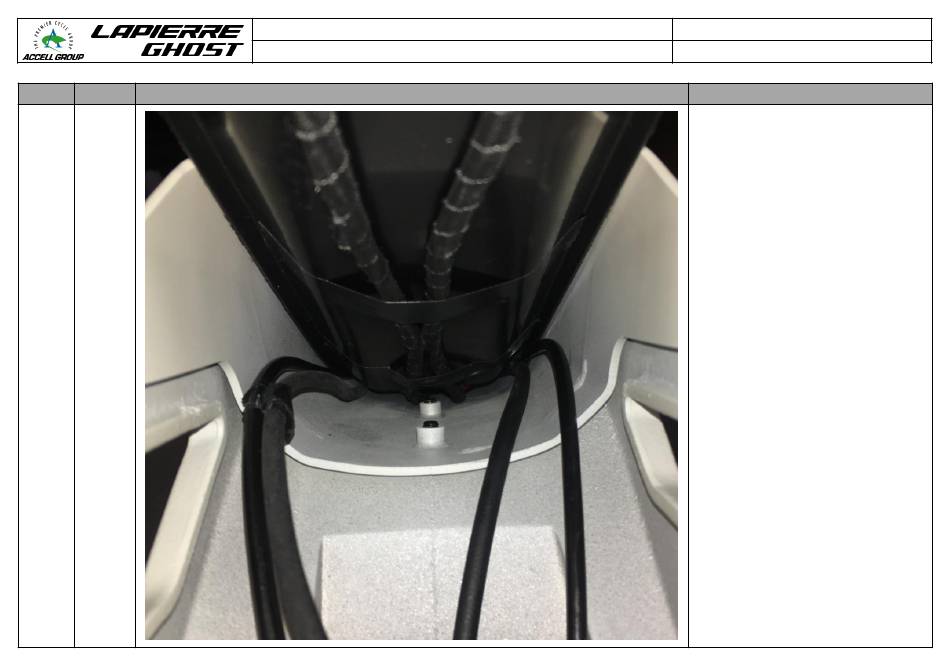

1. Route the cables after installing the
battery rack (step 3) (When possible.
Some bakes have quick
connection which makes
impossible to route afterwards)
2. Route the cables from bottom to top
3. Route the cables in the DT as
following (keep the cables on the
sides of the battery rack):
- Right side: seatpost cable +
display cable
- Left side : brake hose +
derailleur cable
NB: It's very important to not cross the
cables with each other inside the DT. If
cables are crossed, it may result in difficult
battery assembly
hose
them
