Lapierre Overvolt AM 6.6 Assembly Drawing page 15

STEP TOOLS
Philips screwdriver
1
Battery
rack pre-
assembly
Battery Holder Set: FROT0080
Parts:
WI-38L-107-1 GEN4 Top battery bracket
WI-38L-107-2 GEN4 Connector plate
WI-38L-107-3 GEN4 Connector plate holder
WI-38L-107-4 GEN4 Battery rail
WI-38L-107-5- GEN4 Battery spring
SPRING 4pcs

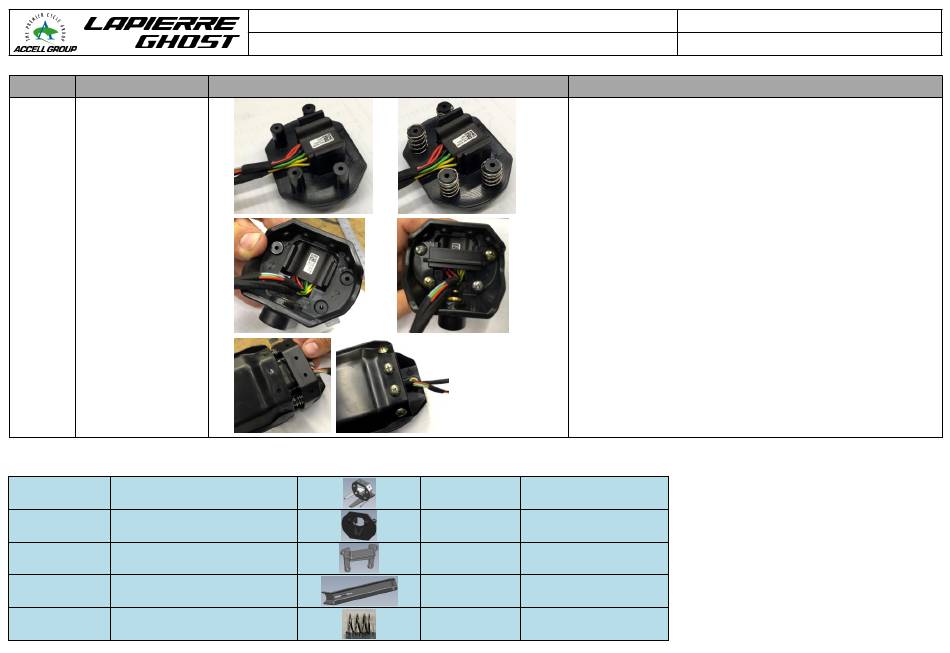

Standard Operating Procedure – Battery assembly
MY20 OV GEN4 AL / HYB ASX
PICTURE INSTRUCTIONS
1. Clip the Bosch connector on the connector plate
2. Place the 4 springs on the connector plate domes
3. Screw the connector plate holder on the connector plate,
through the battery bracket
4. Screw the battery rail on the battery bracket
4x Self-tapping screw M5x10 (included in
Battery Holder Set): FROT0080
4x Self-tapping screw M5x10 (included in
Battery Holder Set): FROT0080
PA66 Black
PA66 Black
PA66 Black
PP+TPR Black
Spring steel Silver
15/11/2019
Page 2 of 9
