Lapierre Overvolt AM 6.6 Assembly Drawing page 20

STEP TOOLS
HEX wrench 3mm
6
HEX wrench 2.5mm
Battery
Battery Spacer
handle
(set incl. screw
assembly
M4x16):
FROT0096
Parts:
WI-38L-115-A GEN4 Battery handle
WI-38L-115-B GEN4 Lock axle plate
WI-38L-116 GEN4 500Wh Battery spacer

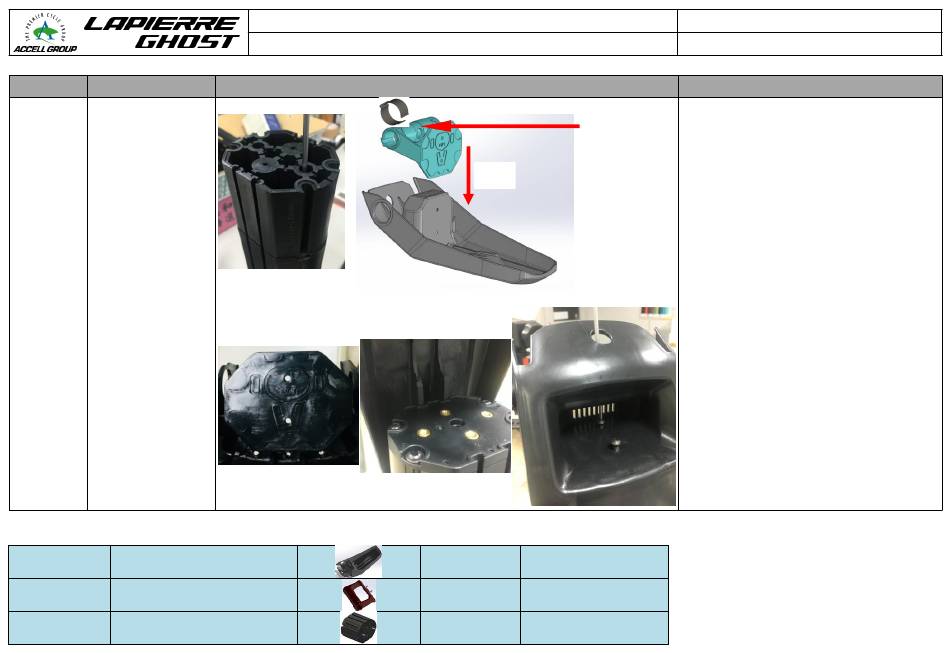

Standard Operating Procedure – Battery assembly
MY20 OV GEN4 AL / HYB ASX
Inox clip:
SM1719
Clip
PP Black
PA66 Black
PA66 Black
15/11/2019
Page 7 of 9
INSTRUCTIONS
1. 500Wh BATTERY: screw the 500Wh
battery spacer onto the battery
2. Clip together the battery handle and the
lock axle plate (a soft mallet may be used
to adjust the 2 parts, use a protection to
not scratch the parts). Make sure the
screw holes are concentric
3. Slide the battery handle into the battery
(or battery spacer) rails
4. Screw the battery handle to the battery
(or battery spacer). Beware of the
battery plug orientation
Screw M4x16: FRSC0085
Battery Handle: FROT0082
Battery Handle: FROT0082
Battery Spacer: FROT0096
