Lapierre Overvolt AM 6.6 Assembly Drawing page 11

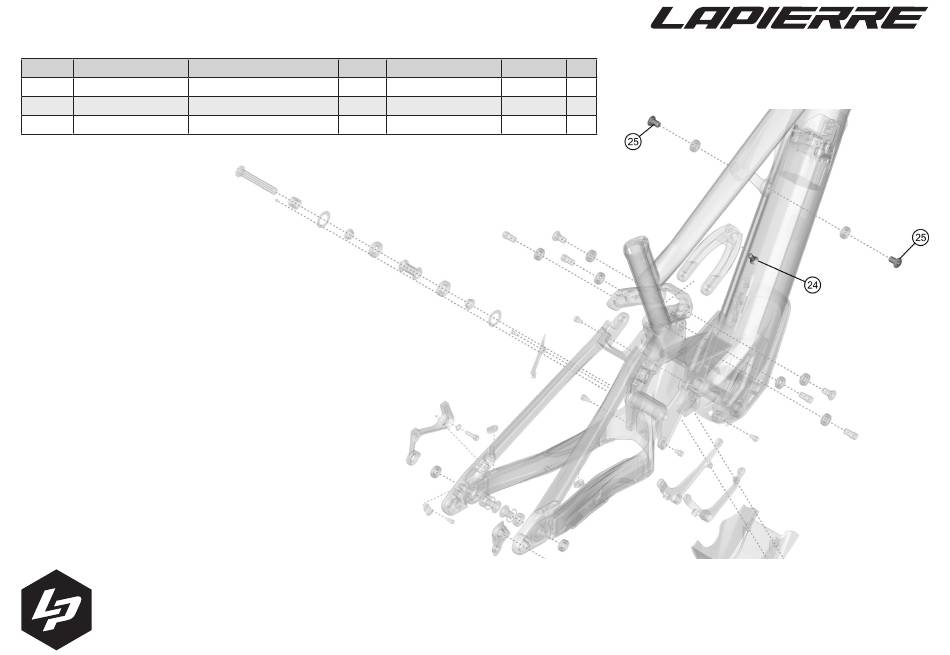

ÜBERSICHTSZEICHNUNG
ASSEMBLY DRAWING
BOM-ID Description Specification
Rear shock screw kit
24 Counter sunk screw Hex 5 - M8 x 30 mm
25 Bolt for Rocker Hex 6 - ø14 (M10) x 17,5 mm 14-18Nm 7760-04008-0021
rear shock screw kit
Torque Drawing no. supplier Item no.
22 Nm 7596-08001-0908
Item no. rear shock screw kit: KE0304
QTY
KE0304 1
FRSC0078 1
FROT0120 2
Overvolt AM 6.6 / 7.6 / 8.6 (MY21)
date: 18-12-2020
version: 01
page 11 / 13
