SNMP MANAGER:

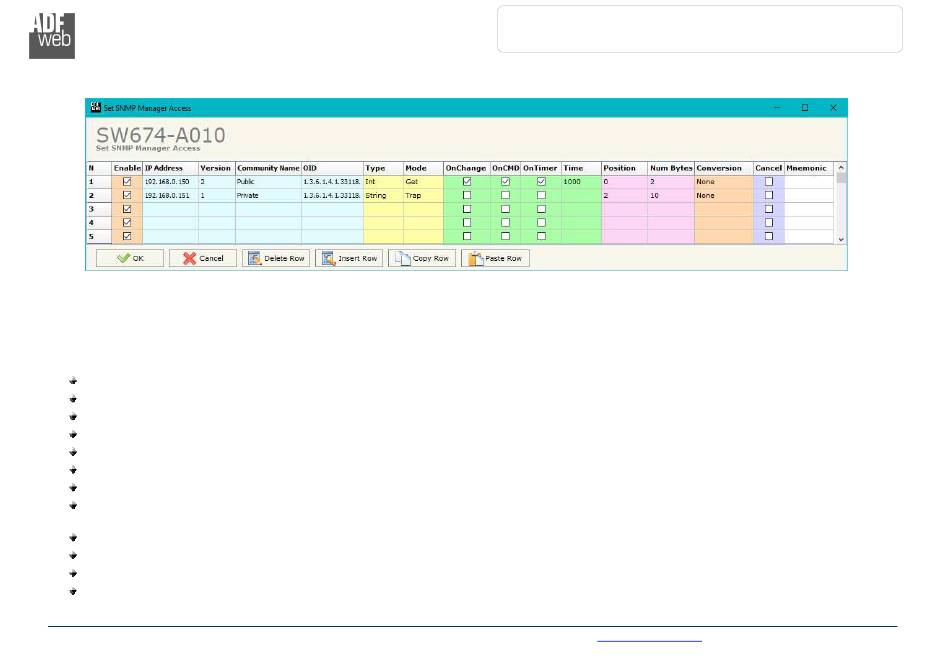

Figure 4: "Set SNMP Manager Access" window
By Pressing the "SNMP Manager" button from the main window for SW674-A010 (Fig. 2) the window "Set SNMP Manager Access" appears
(Fig. 4).
The meaning of the fields in the window are the follows:
If the field "Enable" is checked, the SNMP request is enabled;
In the field "IP Address" the address of the SNMP Agent device to read/write is defined;
In the field "Version" the SNMP version used to send the SNMP request (1 or 2 is allowed) is defined;
In the field "Community
In the field "OID" the OID to read/write from/to the SNMP Agent device is defined;
In the field "Type" the type of data to read/write ('String' or 'Int') is defined;
In the field "Mode" the type of SNMP request used ('Get', 'Set' or 'Trap') is defined;
By checking the field "On
are changed;
By checking the field "On
If the field "On Timer" is checked, the SNMP request is sent cyclically;
In the field "Time" the delay in ms between two SNMP requests is defined (if "On Timer" is checked);
In the field "Position" it is possible to select the position where take/save the data from/to the internal array;
ADFweb.com Srl – IT31010 – Mareno – Treviso
Name" the Community Name used for the SNMP request is defined (selectable or editable manually);
Change" the SNMP request (only for 'Set' Mode) is made only if Modbus data written by the Modbus Master
CMD" the SNMP request is sent when a Modbus request is received;
