Configure the serial settings of the current COM port.
Terminal Type
Select terminal type: VT100, VT100+, VT-UTF8 or ANSI.
Bits per second
Select serial port transmission speed: 9600, 19200, 38400, 57600 or 115200.
Data Bits
Select data bits: 7 bits or 8 bits.
Parity
Select parity bits: None, Even, Odd, Mark or Space.
Stop Bits
Select stop bits: 1 bit or 2 bits.
Flow Control
Select flow control type: None or Hardware RTS/CTS. Flow Control is for RS485 mode and is
only supported by Serial Port 1 (COM1).
VT-UTF8 Combo Key Support
Enable VT-UTF8 Combination Key Support for ANSI/VT100 terminals.
Recorder Mode
With this mode enbaled only text will be sent. This is to capture Terminal data.
Resolution 100x31
Enables or disables extended terminal resolution
Putty KeyPad
Select FunctionKey and KeyPad on Putty.
User's Manual | RPS183
Advanced
X

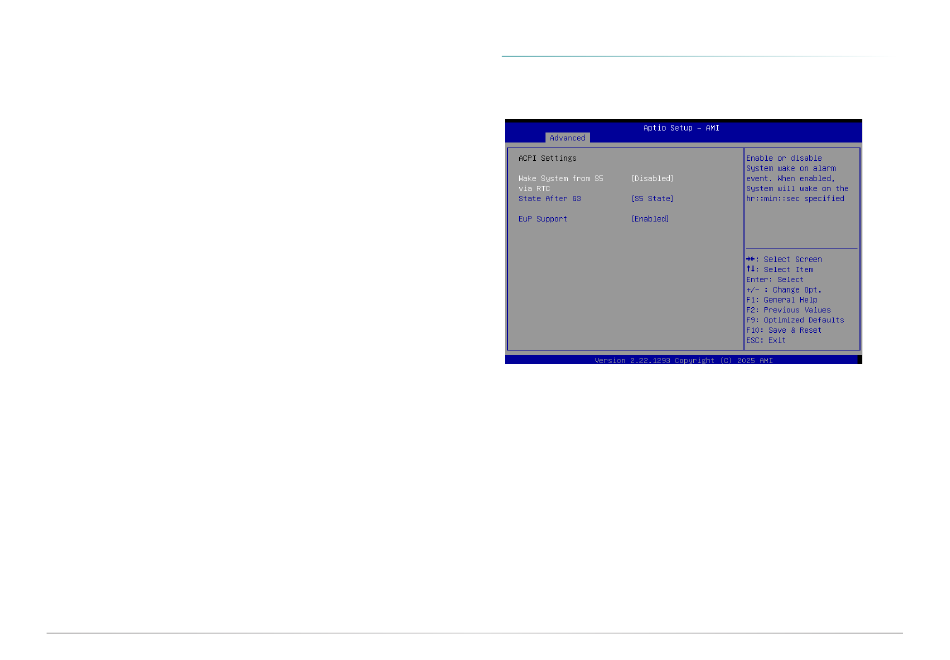

ACPI Settings
Wake system from S5 via RTC
When Enabled, the system will automatically power up at a designated time every day. Once
it's switched to [Enabled], please set up the time of day — hour, minute, and second — for the
system to wake up.
State After G3
Select between S0 State, and S5 State. This field is used to specify what state the system is
set to return to when power is re-applied after a power failure (G3 state).
• S0 State The system automatically powers on after power failure.
• S5 State The system enter soft-off state after power failure. Power-on signal input is
required to power up the system.
EuP Support
Enable or disable EuP function support.
