GARDEN IRRIGATION SHALLOW WELL PUMP
1320 GPH 1.6 HP
SKU: 71044
ASSEMBLY AND USER'S GUIDE
71044
IMPORTANT
:
This Pump Has Been Evaluated for Use With Water Only
WARNING -"Risk of electric shock - This pump is supplied with a grounding
conductor and grounding type attachment plug. To reduce the risk of electric shock,
be certain that it is connected only to properly grounded, grounding-type receptacle".
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for XtremepowerUS 71044
Summary of Contents for XtremepowerUS 71044

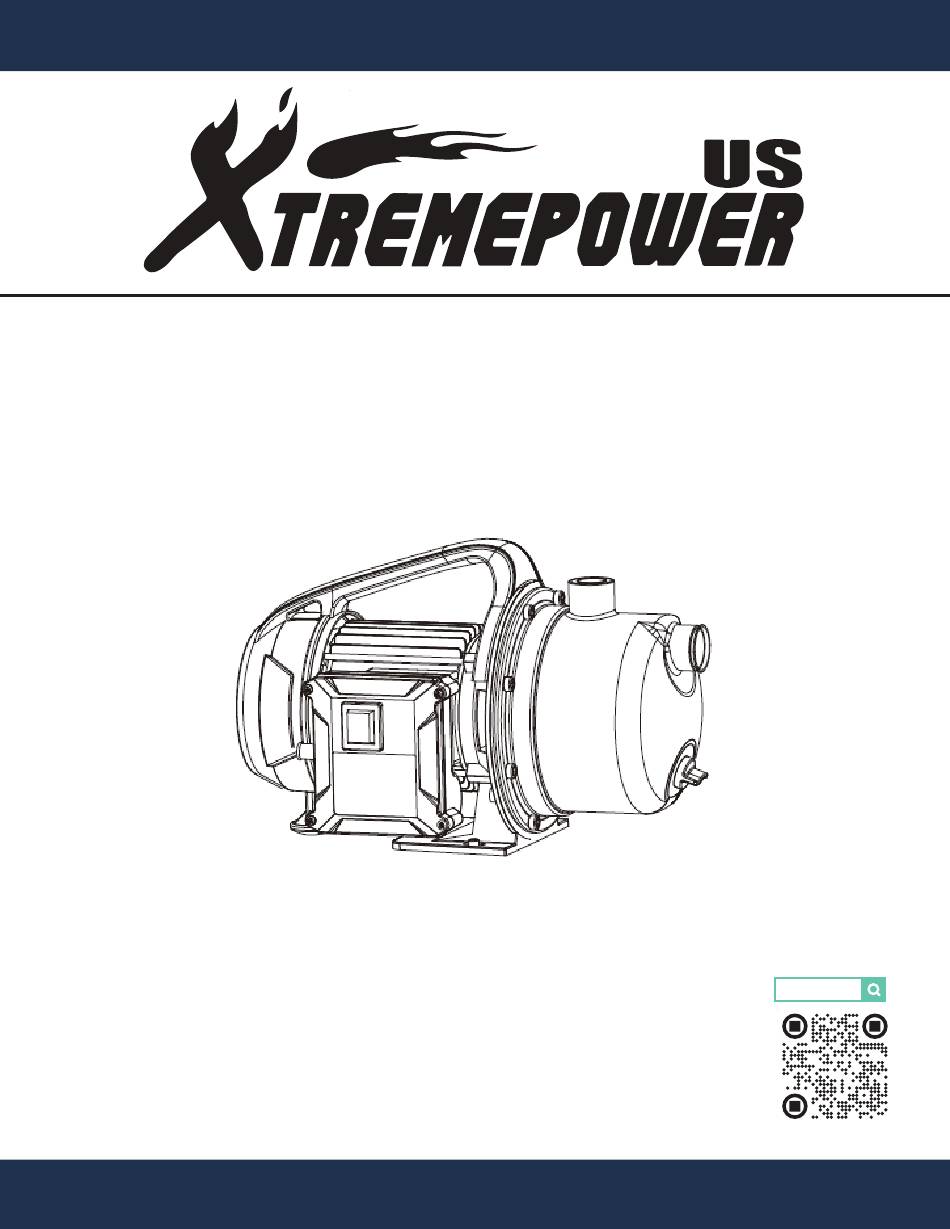

- Page 1 GARDEN IRRIGATION SHALLOW WELL PUMP 1320 GPH 1.6 HP SKU: 71044 ASSEMBLY AND USER’S GUIDE 71044 IMPORTANT This Pump Has Been Evaluated for Use With Water Only WARNING -“Risk of electric shock - This pump is supplied with a grounding conductor and grounding type attachment plug.
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS Legends and Symbols OVERVIEW (PRODUCT INFORMATION) PRODUCT INTRODUCTION PRODUCT OVERVIEW SPECIFICATIONS INSTALLATION PUMP PLACEMENT PIPING OPERATION PRIMING OPERATING TROUBLESHOOTING MAINTENANCE MOTOR PROTECTION WEARABLE PARTS CLEANING STORAGE ADDITIONAL TIPS DISPOSAL ENVIRONMENTALLY RESPONSIBLE DISPOSAL REPLACEMENT PARTS PARTS DIAGRAM DISCLAIMER... -
Page 4: Important Safety Instructions
NOTICE: This label indicates important special instructions that are not directly related to hazards. USE OF NON-XTREMEPOWERUS REPLACEMENT PARTS VOIDS WARRANTY ATTENTION INSTALLER: This manual contains vital information regarding the installation, operation, and safe use of this pump. It is essential to provide this manual to the end user of the product. Failure to read and follow all instructions could lead to severe injuries. - Page 5 IMPORTANT SAFETY INSTRUCTIONS WARNING Electrical Safet: • Wiring and electrical connections must be performed by a licensed electrician. • Install the pump and electrical components above the water level for indoor use to reduce the risk of electrical shock. • Keep the motor area as dry as possible and avoid washing or immersing the motor.
-
Page 6: Overview (Product Information)
OVERVIEW (PRODUCT INFORMATION) OVERVIEW (PRODUCT INFORMATION) PRODUCT INTRODUCTION This versatile shallow well jet pump is ideal for a range of freshwater supply needs, including rural homes, cabins, farms, and more. It's designed for installations where the vertical distance from the pump to the water level doesn't exceed 26 FT. -
Page 7: Specifications
OVERVIEW (PRODUCT INFORMATION) SPECIFICATIONS Model 71044 120 V / 60HZ Voltage 1.6 HP Power 10 A Amps 157 FT Max. Lift 26 FT Max. Suction Height 1268 GPH Max. Flow 1 INCH NPT Inlet Size 1 INCH NPT Discharge Size 95 °F... -
Page 8: Installation
INSTALLATION INSTALLATION PUMP PLACEMENT • Install in a clean, dry, well-ventilated area. • Position horizontally on a solid foundation. • Keep close to water source (Max 26 FT). • Use a foot valve to maintain priming; keep it submerged 5 FT above well bottom. Max 26 FT Min 5 FT... -
Page 9: Piping
INSTALLATION NOTE Always use sealant tape on threaded connections. PIPING Use new, clean piping that matches flow rates, pressure, and water quality. • Remove and store sealing cap (3a) from suction inlet (3). • Connect hose adapters to suction inlet (3). •... -
Page 10: Operation
OPERATION OPERATION WARNING Ensure the pump is filled with water before use. Running the pump dry can damage the shaft seal and void the warranty. PRIMING • Confirm the suction line is connected to prevent water leakage. • If a service line is in place, open the discharge valve; if not, open a tap to release air from the suction line. -
Page 11: Troubleshooting
TROUBLE SHOOTING ISSUE CASE CORRECTIVE ACTION electric motor Once the pump starts, Prime the pump with water. it doesn't fill with water. runs, but the pump doesn't draw water. The suction hose isn't Ensure proper sealing of pump components tightly sealed. like the suction nose joint, pressure hose joint, clamping ring, suction hose, and Teflon or hemp cord sealing strip. - Page 12 TROUBLE SHOOTING ISSUE CASE CORRECTIVE ACTION The heat-sensitive Electric motor Clean the pump's shell with pressurized overload due to switch can't turn off the water. pump. friction from impurities entering the motor. The pump's switch Absence of a Verify the presence of a valve on the suction non-return valve on remains either OFF or hose.
-
Page 13: Maintenance
MAINTENANCE MAINTENANCE MOTOR PROTECTION WARNING • Prevent water from entering the motor. • Avoid spraying or cleaning the product with running water to prevent electric shock and damage. WEARABLE PARTS NOTE • The seals, pre-filter, flow sensor wheel, and non-return valve are subject to natural wear. •... -
Page 14: Additional Tips
MAINTENANCE ADDITIONAL TIPS WARNING • Avoid exposing the pump to rain, humidity, dirt, or freezing conditions. • Prevent freezing, idling, or blockage by impurities. • In case of power cable damage, seek professional replacement, as short-circuit damage is not covered by the warranty. •... -
Page 15: Disposal
DISPOSAL DISPOSAL ENVIRONMENTALLY RESPONSIBLE DISPOSAL NOTE • When replacing your appliance, don't discard it with household waste. Dispose of it in an environmentally safe manner. Electrical waste requires special handling and recycling, not standard disposal. Use recycling facilities where available, or consult your Local Authority or retailer for guidance. -
Page 16: Replacement Parts
REPLACEMENT PARTS REPLACEMENT PARTS PARTS DIAGRAM Item Description Item Description Item Description Screw Cover Bracket Rubber Seal O-Ring Stator Cable Bracket Plastic Cover Bearing Switch Box-Basic Screw Cover Rotor Cable Buckle O-Ring Main Body Screw Screw Wave Gasket Screw Pump Head-SS Motor Back Cover Screw&... -
Page 17: Disclaimer
DISCLAIMER DISCLAIMER PLEASE READ THE FOLLOWING CAREFULLY The manufacturer and/or distributor have provided the parts list and assembly diagram in this manual for reference purposes only. They do not make any representation or warranty to the buyer that they are qualified to make repairs to the product or replace any parts of the product. In fact, the manufacturer and/or distributor expressly state that all repairs and parts replacements should be undertaken by certified and licensed technicians, and not by the buyer.
