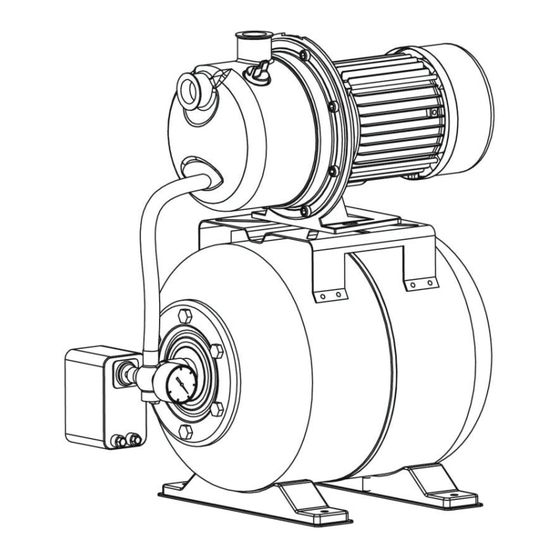

GARDEN IRRIGATION SHALLOW WELL PUMP
1320 GPH 1.6 HP W/ PRESSURE TANK
SKU: 71043
ASSEMBLY AND USER'S GUIDE
71043
IMPORTANT
:
This Pump Has Been Evaluated for Use With Water Only
WARNING -"Risk of electric shock - This pump is supplied with a grounding
conductor and grounding type attachment plug. To reduce the risk of electric shock,
be certain that it is connected only to properly grounded, grounding-type receptacle".
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for XtremepowerUS 71043
Summary of Contents for XtremepowerUS 71043

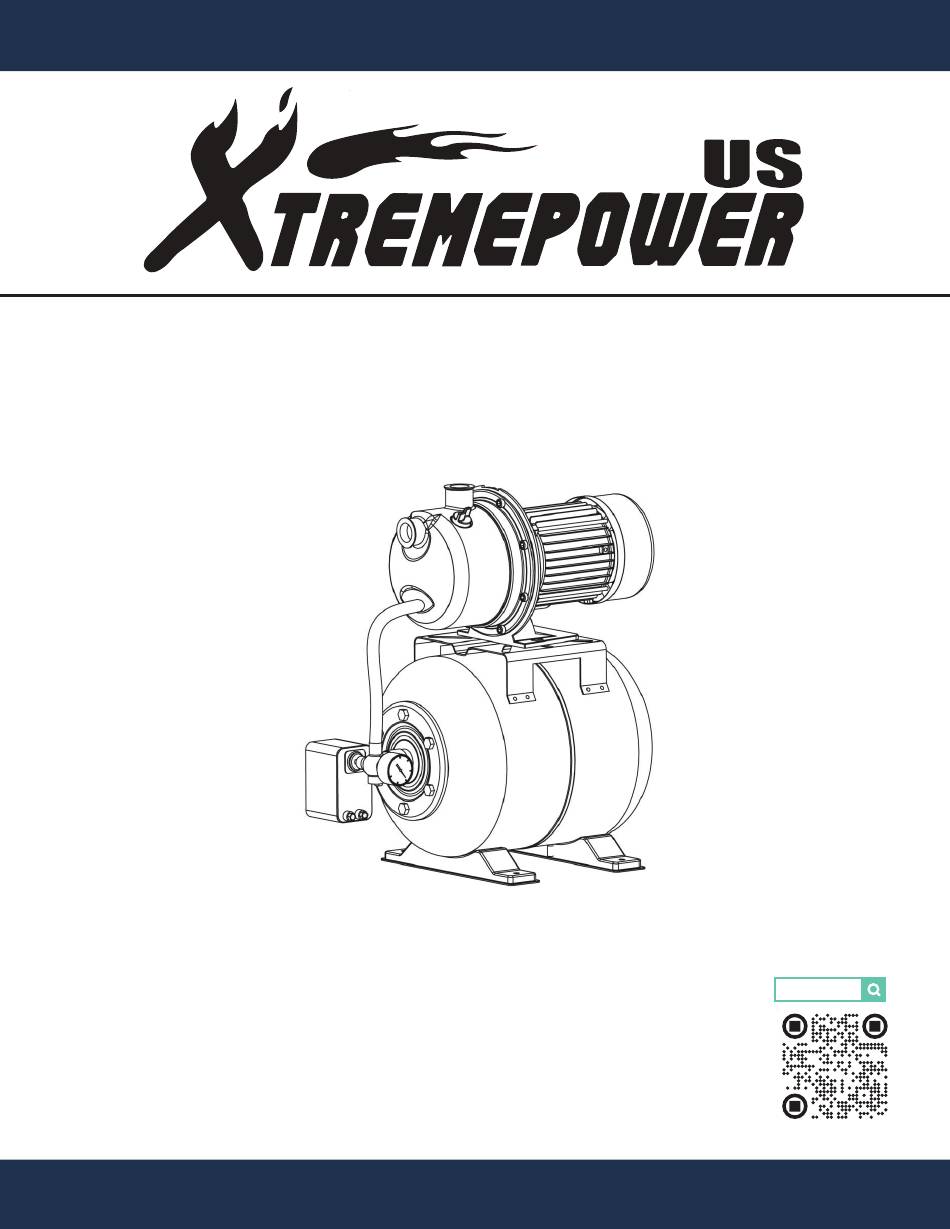

- Page 1 GARDEN IRRIGATION SHALLOW WELL PUMP 1320 GPH 1.6 HP W/ PRESSURE TANK SKU: 71043 ASSEMBLY AND USER’S GUIDE 71043 IMPORTANT This Pump Has Been Evaluated for Use With Water Only WARNING -“Risk of electric shock - This pump is supplied with a grounding conductor and grounding type attachment plug.
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS Legends and Symbols OVERVIEW (PRODUCT INFORMATION) PRODUCT INTRODUCTION PRODUCT OVERVIEW SPECIFICATIONS INSTALLATION & OPERATION PIPING BEFORE OPERATION PRIMING OPERATING TROUBLESHOOTING MAINTENANCE MOTOR PROTECTION WEARABLE PARTS CLEANING STORAGE ADDITIONAL TIPS DISPOSAL ENVIRONMENTALLY RESPONSIBLE DISPOSAL REPLACEMENT PARTS PARTS DIAGRAM DISCLAIMER... -
Page 4: Important Safety Instructions
NOTICE: This label indicates important special instructions that are not directly related to hazards. USE OF NON-XTREMEPOWERUS REPLACEMENT PARTS VOIDS WARRANTY ATTENTION INSTALLER: This manual contains vital information regarding the installation, operation, and safe use of this pump. It is essential to provide this manual to the end user of the product. Failure to read and follow all instructions could lead to severe injuries. - Page 5 IMPORTANT SAFETY INSTRUCTIONS WARNING Electrical Safet: • Wiring and electrical connections must be performed by a licensed electrician. • Install the pump and electrical components above the water level for indoor use to reduce the risk of electrical shock. • Keep the motor area as dry as possible and avoid washing or immersing the motor.
-
Page 6: Overview (Product Information)
OVERVIEW (PRODUCT INFORMATION) OVERVIEW (PRODUCT INFORMATION) PRODUCT INTRODUCTION This versatile shallow well jet pump is ideal for a range of freshwater supply needs, including rural homes, cabins, farms, and more. It's designed for installations where the vertical distance from the pump to the water level doesn't exceed 26 FT. -
Page 7: Product Overview
Discharge 1 INCH NPT Prime Cap Screw Pressure Hose Pressure Gauge Automatic Pressure Switch Drain Cap Screw Pressure Tank Power Switch SPECIFICATIONS Model 71043 120 V ~ 60 HZ Voltage 1.6 HP Power 10 A Amps 157 FT Max. Lift 26 FT Max. -
Page 8: Installation & Operation
INSTALLATION & OPERATION INSTALLATION & OPERATION PIPING 95 °F • Place the pump on a sturdy, level platform 39 °F above the water level for support. • Keep the inlet pipeline short with minimal bends. outdoor installations, provide weatherproof protection. •... -
Page 9: Priming
INSTALLATION & OPERATION PRIMING WARNING The pump must be filled with water before operation. Running the pump dry will cause damage to the shaft seal and void the warranty. • Ensure the suction line is properly connected to prevent water from escaping the suction inlet (3). •... -
Page 10: Troubleshooting
TROUBLE SHOOTING ISSUE CASE CORRECTIVE ACTION The electric motor runs, The pump is not fully Ensure the pump is completely filled with filled with water after but the pump doesn't water. starting. draw water. During suction, the When restarting the pump, raise the water level decreases pressure side pipe to 3 FT vertically from due to the opening of... - Page 11 TROUBLE SHOOTING ISSUE CASE CORRECTIVE ACTION Insufficient Water Suction height Verify suction height. exceeds 8m. Delivery. Blockage of filter Clean the filter screen. screen on the bottom valve. Water level for suction Submerge the bottom valve in deeper water. is too low. Pump efficiency Clean the pump's spiral case, suction pipe, affected by foreign...
-
Page 12: Maintenance
MAINTENANCE MAINTENANCE MOTOR PROTECTION WARNING • Prevent water from entering the motor. • Avoid spraying or cleaning the product with running water to prevent electric shock and damage. WEARABLE PARTS NOTE • The seals, pre-filter, flow sensor wheel, and non-return valve are subject to natural wear. •... -
Page 13: Additional Tips
MAINTENANCE ADDITIONAL TIPS WARNING • Avoid exposing the pump to rain, humidity, dirt, or freezing conditions. • Prevent freezing, idling, or blockage by impurities. • In case of power cable damage, seek professional replacement, as short-circuit damage is not covered by the warranty. •... -
Page 14: Disposal
DISPOSAL DISPOSAL ENVIRONMENTALLY RESPONSIBLE DISPOSAL NOTE • When replacing your appliance, don't discard it with household waste. Dispose of it in an environmentally safe manner. Electrical waste requires special handling and recycling, not standard disposal. Use recycling facilities where available, or consult your Local Authority or retailer for guidance. -
Page 15: Replacement Parts
REPLACEMENT PARTS REPLACEMENT PARTS PARTS DIAGRAM Item Description Item Description Item Description Screw Cover Rotor Switch Box-Cover O-Ring Main Body Screw Plastic Cover Wave Gasket Capacitance Screw Motor Back Cover Capacitance Buckle Pump Head-Ss Body Screw Cable Plastic Cover Ring Tank O-Ring Clamp Spring... -
Page 16: Disclaimer
DISCLAIMER DISCLAIMER PLEASE READ THE FOLLOWING CAREFULLY The manufacturer and/or distributor have provided the parts list and assembly diagram in this manual for reference purposes only. They do not make any representation or warranty to the buyer that they are qualified to make repairs to the product or replace any parts of the product. In fact, the manufacturer and/or distributor expressly state that all repairs and parts replacements should be undertaken by certified and licensed technicians, and not by the buyer.
