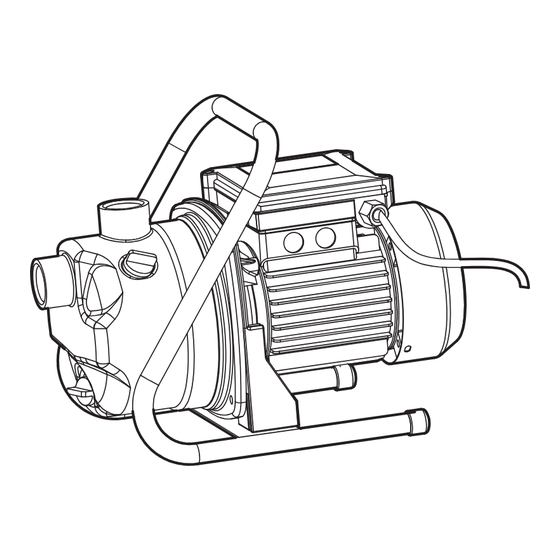

Garden Pump
SKU: 76091
Owner's Manual
76091
E248578
JGP-2JH-1000W
C
US
LISTED
26XZ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 76091 and is the answer not in the manual?

Questions and answers

Summary of Contents for XtremepowerUS 76091

  • Page 1 Garden Pump SKU: 76091 Owner's Manual 76091 E248578 JGP-2JH-1000W LISTED 26XZ...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION AND SAFETY COMMISSIONING OPERATION MAINTENANCE FAULT AND REMEDIAL MEASURES TECHNICAL DATA PARTS LIST...
  • Page 3: Introduction And Safety

    INTRODUCTION AND SAFETY Thank you for purchasing this product. This tool is an electric pump. It is used for pumping water and other similar water applications. After opening the package, please ensure that the products are complete. If the products are damaged or there is something missing, please do not use it and bring it back to your dealer.
  • Page 4 INTRODUCTION AND SAFETY 9.When the components which fail to be tested and recognized by manufacturers are improperly used, the equipment is likely to suffer from the unforeseen damage. 10.Any application which deviates from the intended purpose as specified in the instructions will be considered as the unautho- rized application, as a result, the generated problems are inde- pendent of the manufacturers.
  • Page 5: Commissioning

    COMMISSIONING As for the fixed application, please apply four screws to tighten the equipment on the foundation support firmly. When the equipment is used for the pound and swimming pool in the garden, the equipment shall be subject to the special setup to avoid the overflow and falling.
  • Page 6 COMMISSIONING All interfaces which are connected to the suction pipeline shall be sealed by hemp and thick slurry or sealing tape. The leak- age will reduce the air exhaust. The interface of metal pipe thread shall be sealed by sealing tape.
  • Page 7: Operation

    OPERATION The equipment can be firmly connected to the pipeline system (such as, internal water supply in families). In such case, the equipment shall apply the highly flexible hose to connect to the pipeline system to avoid the vibration. Risk for injury! When the components are unable to withstand the compression or the installation is incorrect, the pressure pipeline is likely to burst during the...
  • Page 8 OPERATION Risk for equipment damage! The pump shall be filled with water when the new equipment is connected. It is unnecessary to make up additional water during the extension operation. Attention! The dry running of equipment is likely to damage the equipment during the unmanned supervision.
  • Page 9: Maintenance

    MAINTENANCE 1.Please disconnect the power supply before any operation of maintenance. 2.The equipment will only fulfill the maintenance and trouble removal tasks as specified in the instructions. Other faults shall be removed by experts. 3.Please apply the original components. Only these replaceable components are specifically designed and produced for the equipment.
  • Page 10: Fault And Remedial Measures

    FAULT AND REMEDIAL MEASURES In most cases, you will be able to troubleshoot problems easily by yourself. Before you contact us, please refer to the following table for technical support. This will help you save a lot of work and possible expenses.
  • Page 11 FAULT AND REMEDIAL MEASURES Error shooting Reasons Response measures Excessively 1.Whether the 1.Satisfy the maximum low hydraulic hydraulic head has hydraulic head height. head . excessively large 2.Please apply the height? pressure pipe which 2.Whether the pres- has large diameter. sure pipeline has 3.Remove blockage.
  • Page 12: Technical Data

    TECHNICAL DATA Technical data Model 76091 115 V / 60 Hz Nominal voltage Horsepower Protection type IPX4 Max. Lift 26FT Max. Flow Rate 930GPH Max. Head 145FT This Pump Has Been Evaluated for Use With Water Only WARNING -“Risk of electric shock - This pump is...
  • Page 13: Parts List

    PARTS LIST PARTS LIST...
  • Page 14 PARTS LIST PARTS LIST...
  • Page 15 DISCLAIMER PLEASE READ THE FOLLOWING CAREFULLY The manufacturer and/or distributor have provided the parts list and assembly diagram in this manual for reference purposes only. They do not make any representation or warranty to the buyer that they are qualified to make repairs to the product or replace any parts of the product.
