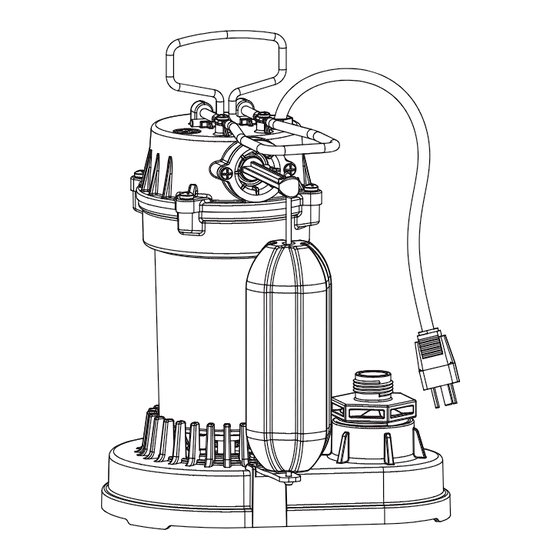

- Page 1 Submersible Pump SKU: 76051 Owner's Manual 76051 E248578 Q500213M LISTED 26XZ...
-
Page 2: Table Of Contents
TABLE OF CONTENTS BOX CONTENT AND TOOLS NEEDED START GUIDE INTRODUCTION AND SAFETY INSTALLATION AND COMMISSIONING OPERATION TROUBLESHOOTING MAINTENANCE TECHNICAL DATA PARTS LIST This Pump Has Been Evaluated for Use With Water Only WARNING -“Risk of electric shock - This pump is supplied with a grounding conductor and ground- ing CAUTION ! type attachment plug. -
Page 3: Box Content And Tools Needed
BOX CONTENT AND TOOLS NEEDED 30’... -
Page 4: Start Guide
START GUIDE Attention danger Not connected Power up Observez Clean Water Maintenance Stop Connected Environment... -
Page 5: Introduction And Safety
INTRODUCTION AND SAFETY Thank you for purchasing this product.Please read these instructions, and keep them for future reference. This tool is an electric pump. It is used for pumping water and other similar water applications. After opening the package, please ensure that the products are complete (if any). - Page 6 INTRODUCTION AND SAFETY 9.The device is suitable for children at eight or older. People with sensory or physical disabilities or deficiencies are required to use under supervision or knowledge of safety, use and danger. Children are not allowed to wash or maintain equipment without supervision.
-
Page 7: Installation And Commissioning
INSTALLATION AND COMMISSIONING Long enough and strong ropes should be attached to thehandle before the first use. When the pump is immersed into the liquid, the rope along with a handle can be used to balance the pump. Installation The equipment requires an area of at least 60x60cm. Depth of equipment immersed in technical parameters. - Page 8 INSTALLATION AND COMMISSIONING Before The Start...
- Page 9 INSTALLATION AND COMMISSIONING Start Up Grain size 1/5 INCH...
-
Page 10: Operation
OPERATION Connecting pressure pipe -screw the pressure pipe onto the pressure connector. All joint connections must be sealed with a threaded sealing stripe. -When using the hose, screw the right hose adapter into the pressure connector. -Secure the hose firmly to the hose adapter and secure it with a hose clamp. -
Page 11: Troubleshooting
TROUBLESHOOTING In most cases, you will be able to troubleshoot problems easily by yourself. Before you contact us, please refer to the following table for technical support. This will help you save a lot of work and possible expenses. Error Reasons Errorshooting The pump 1.Unconnected power. -
Page 12: Maintenance
MAINTENANCE Clean the equipment from the outside. Flush with clean water. Use brush and detergent to remove stubborn pollution. Immerse the pump into a container with clean water, open it for running a while, and flush it in the pump. Attention: Before using the pump again, first "clean"... -
Page 13: Technical Data
TECHNICAL DATA Technical data Model 76051 Voltage & Hz 115 V / 60 Hz Current Horsepower 1/2 HP Max. Pump Rate 3800 GPH Max. Height 30 FT Max. Grain Size 1/5 INCH Dia. Of Pipe NPT 1-1/2 INCH Water Temperature 95°F / 35°C... -
Page 14: Parts List
PARTS LIST... - Page 15 PARTS LIST...
- Page 16 DISCLAIMER PLEASE READ THE FOLLOWING CAREFULLY The manufacturer and/or distributor have provided the parts list and assembly diagram in this manual for reference purposes only. They do not make any representation or warranty to the buyer that they are qualified to make repairs to the product or replace any parts of the product.
