- Page 2 Water temperature in excess of 100° F (37.7° C) may be hazardous to your health. Prolonged immersion in hot water may induce hypothermia. Hypothermia occurs when the internal temperature of the body reaches a level several degrees above normal body temperature of 98.6° F (37° C.). Effects of hypothermia include: (1) Unawareness of impending danger.
-
Page 3: General Safety Rules
Hair Entanglement – When the hair tangles or knots in the drain cover, trapping the swimmer underwater. This hazard present when flow rating cover small pump pumps. Limb Entrapment – When a limb is sucked or inserted into an opening resulting in a mechanical bind or swelling. This hazard is present when a drain cover is missing, broken, loose, cracked or not properly secured. -
Page 5: Brief Introduction

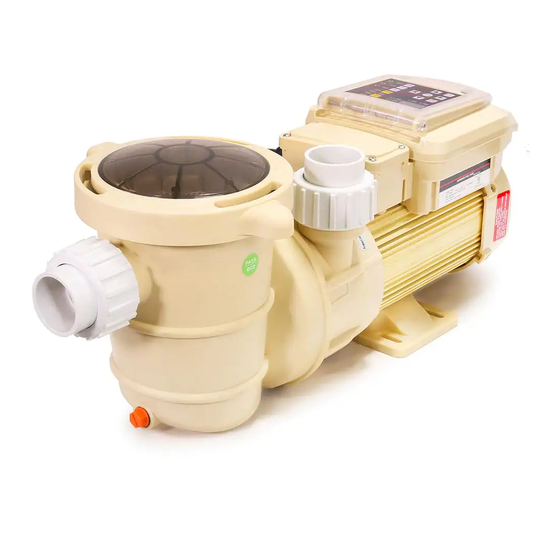

Brief Introduction This variable speed pump is designed to operate your swimming pool filtration system as well as your spa, waterfall, cleaner, heater, salt chlorine system and other water applications. Using the control panel, you can run your pump on one of three scheduled programs: 1. - Page 6 Introduction of LED Control Panel ECO: Press to select and run on default speed 1500RPM, can be adjusted from 1000 to 2400RPM ! CLEAN: Press to select and run on default speed 2400RPM, can be adjusted from 2400 to 2850RPM "...
- Page 7 Stopping and Running The Pump 3.1 Start The Pump 1) Make sure the pump is connected with power. When power is on, the display screen will display the time. Press one of ECO/CLEAN/BOOST, the pump will run. The light on the corresponding program will shine.
- Page 8 4. Pump Run Under MODE1/MODE2 4.2 How to Set and Change Specification of MODE1/MODE2 Indicator Light 1) Make sure STOP button is pressed before set up, and pump is not working. Press MENU, LED CLEAN BOOST CLEAN BOOST screen will display the current time (time will not count during set-up), use arrow buttons to adjust the time.
-
Page 10: Control Panel Menu Structure
Control Panel Menu Structure... -
Page 11: Parts Breakdown
7. Parts Breakdown 647252772000 Strainer Cover 5431042080 Strainer Cover O-Ring 47252704001 Basket 47252703080 Strainer Housing 47252705080 Clip 5431029080 Strainer Housing O-Ring 5212016000 Screw ST5.5*25 47252702080 Diffuser 64727297130 Impeller 5431040080 Housing O-Ring 5028003000 Seal Assembly 47252701080 Pump Housing 47252708080 Motor Mounting Plate 5023410000 Motor 41038005... -
Page 12: Performance Curve
8. Performance Curve 9.Alert and Warnings The pump displays all alerts and warnings on the control panel. When an alarm or warning condition exists, the corresponding LED will shine and the error code will be displayed on the screen.All control panel buttons are disabled until the alarm or warning is acknowledged by press the ENTER button. - Page 13 the water pump and observe the error. Please contact the supplier,if the error is still exist. 1024 4001 4002 4096 After power off, it will takes more than ten seconds to restart, as the internal energy storage elements need to be discharged. The pump may work abnormally,if the circuit board is restarted before the power is discharged.
