Summary of Contents for XtremepowerUS 76061

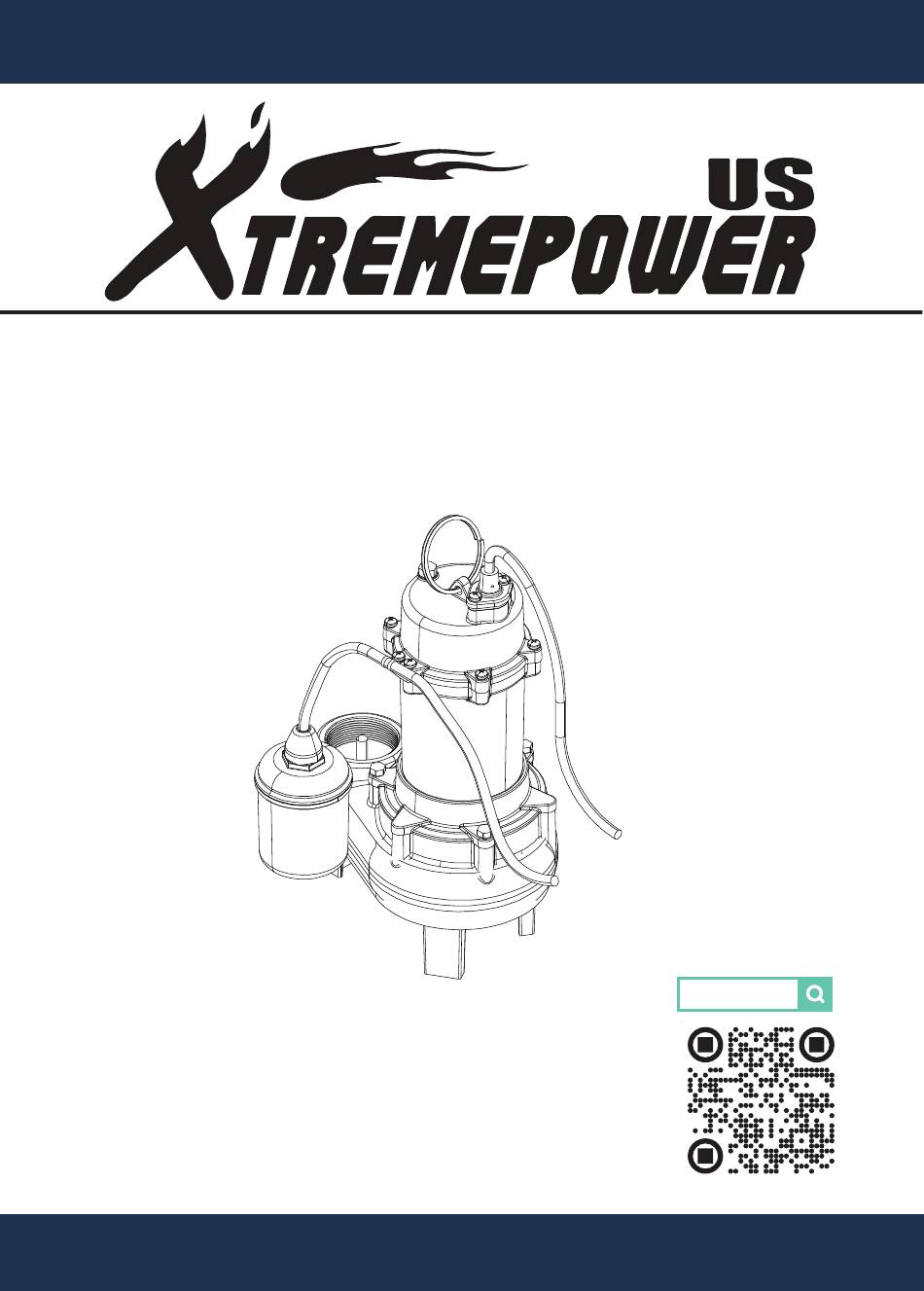

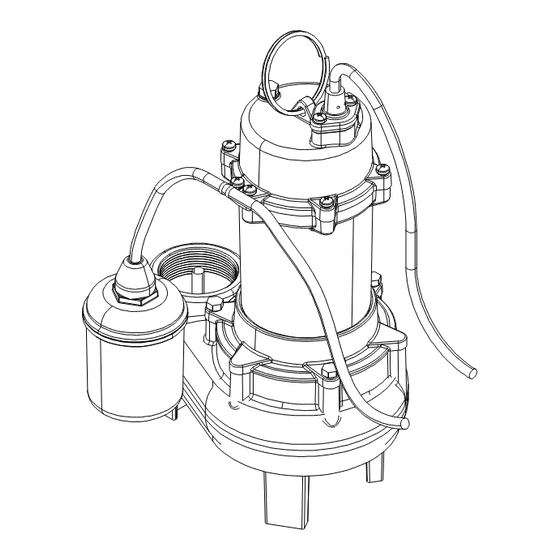

- Page 1 SUBMERSIBLE SEWAGE PUMP 1/2HP CAST IRON SUMP 4860GPH MAX HTH 23FT SKU: 76061 76061 ASSEMBLY AND USER’S GUIDE...
-
Page 3: Table Of Contents
TABLE OF CONTENT TABLE OF CONTENTS QUICK START INTRODUCTION AND SAFETY INTRODUCTION AND COMMISSIONING OPERATION TROUBLE SHOOTING MAINTENANCE SPECIFICATION PARTS DIAGRAM PARTS LIST DISCLAIMER CUSTOMER SERVICE... -
Page 4: Quick Start
QUICK START 30’... - Page 5 QUICK START Attention danger Not connected Power up Observez Clean Water Maintenance Connected Stop Environment...
- Page 6 QUICK START...
- Page 7 QUICK START Grain Size 2 INCH...
-
Page 8: Introduction And Safety
INTRODUCTION AND SAFETY Thank you for purchasing this product.Please read these instructions, and keep them for future reference. This tool is an electric pump. It is used for pumping water and other similar water applications. After opening the package, please ensure that the products are complete (if any). - Page 9 INTRODUCTION AND SAFETY 9.The device is suitable for children at eight or older. People with sensory or physical disabilities or deficiencies are required to use under supervision or knowledge of safety, use and danger. Children are not allowed to wash or maintain equipment without supervision.
-
Page 10: Introduction And Commissioning
INSTALLATION AND COMMISSIONING Long enough and strong ropes should be attached to thehandle before the first use. When the pump is immersed into the liquid, the rope along with a handle can be used to balance the pump. Installation The equipment requires an area of at least 2 x 2 FT. Depth of equipment immersed in technical parameters. -
Page 11: Operation
OPERATION Connecting pressure pipe - screw the pressure pipe onto the pressure connector. All joint connections must be sealed with a threaded sealing stripe. -When using the hose, screw the right hose adapter into the pressure connector. -Secure the hose firmly to the hose adapter and secure it with a hose clamp. -
Page 12: Trouble Shooting
TROUBLE SHOOTING In most cases, you will be able to troubleshoot problems easily by yourself. Before you contact us, please refer to the following table for technical support. This will help you save a lot of work and possible expenses. Error Reasons Errorshooting... -
Page 13: Maintenance
MAINTENANCE Clean the equipment from the outside. Flush with clean water. Use brush and detergent to remove stubborn pollution. Immerse the pump into a container with clean water, open it for running a while, and flush it in the pump. Attention: Before using the pump again, first "clean"... -
Page 14: Specification
SPECIFICATION Model 76061 Nominal Voltage 115 V / 60 HZ Horsepower 1/2 HP Protection Type IPX 8 Max. Head 30 FT Max. Flow Rate 4861 GPH Max.Grain Size 2 INCH Max.Medium 95 °F Temperature Risk for equipment damage! The particle size mentioned cannot be used for... -
Page 15: Parts Diagram
PARTS DIAGRAM... -
Page 16: Parts List
PARTS INFORMATION Parts No. Description Qty. Item GB818 M4×15-201 Cross Head Tapping Screw 0010 0020 JHCT087.48.043 Power Cord 0030 JHCT077.03.009 JHCT002.11.009 Ring Handle 0040 JHCT077.01.020 Sealing Bolt 0050 0060 JHCT051.01.224 O-Ring 0070 GB/T9074.3-M5×20.0- Screw Assembly Spring Washer 0080 GB93 5-201 GB818 M4*10-201 Cross Head Tapping Screw 0090... -
Page 17: Disclaimer
DISCLAIMER DISCLAIMER PLEASE READ THE FOLLOWING CAREFULLY The manufacturer and/or distributor have provided the parts list and assembly diagram in this manual for reference purposes only. They do not make any representation or warranty to the buyer that they are qualified to make repairs to the product or replace any parts of the product.
