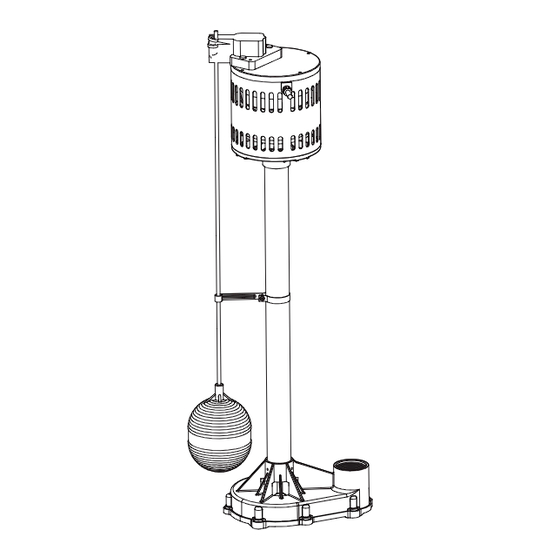

- Page 1 Submersible Pump SKU: 76081 Owner's Manual 76081 E248578 QSB-2JH-SS025 LISTED 26XZ...
-
Page 3: Table Of Contents
TABLE OF CONTENTS ITEM DIAGRAM SPECIFICATIONS AND SAFETY FLOAT SWITCH INSTALLATION OPERATION COMPONENT DIAGRAM TROUBLESHOOTING PARTS LIST... -
Page 4: Item Diagram
ITEM DIAGRAM... -
Page 5: Specifications And Safety
Pump water only with this pump. Do not use where water recirculates. Not designed for use as a swimming pool. Technical data Model 76081 Nominal voltage 115 V / 60 Hz Horsepower 1/3HP Protection type IPX4 Current rating Max. - Page 6 SPECIFICATIONS AND SAFETY the pump, etc.) may prevent your pump from functioning normally. To prevent possible water damage due to flooding, consult your retailer about a secondary AC sump pump, a CD backup sump pump, and/ or a high water alarm. See the “ Trouble shooting Chart” in this manual for information about common sump pump problems and remedies.
-
Page 7: Float Switch Installation
FLOAT SWITCH INSTALLATION FLOAT SWITCH INSTALLATION Models equipped with vertical switches require some assembly. See the Switch Assembly instructions on Page4. Models with tethered float switches are ready for use. INSTRUCTION 1. Install pump in sump pit with minimum diameter of 10” (254mm) for models equipped with vertical switches and 14”... - Page 8 FLOAT SWITCH INSTALLATION...
-
Page 9: Operation
OPERATION OPERATION Risk of electric shock. Do not handle a pump or pump motor with wet hands or WARNING when standing on wet or damp surface, or in water. 1. Shaft seal depends on water for lubrication. Do not operate pump unless it is submerged in water as seal may be damaged if allowed to run dry. -
Page 10: Component Diagram
COMPONENT DIAGRAM... -
Page 11: Troubleshooting
TROUBLESHOOTING... -
Page 12: Parts List
PARTS LIST... - Page 13 PARTS LIST...
