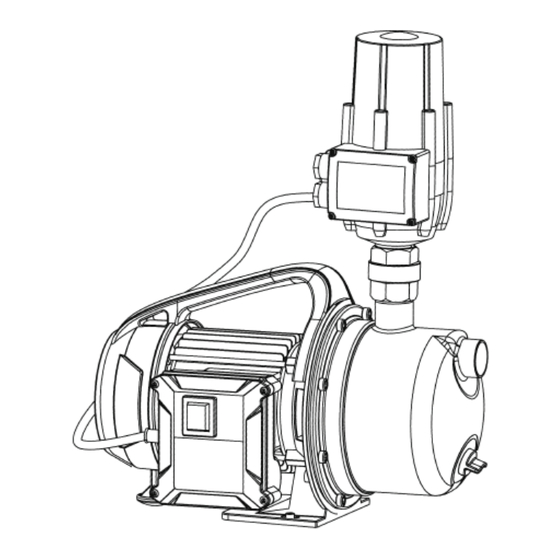

GARDEN IRRIGATION SHALLOW WELL PUMP
1268 GPH 1.6 HP W/ CONTROLLER
SKU: 71045
ASSEMBLY AND USER'S GUIDE
71045
IMPORTANT
:
This Pump Has Been Evaluated for Use With Water Only
WARNING -"Risk of electric shock - This pump is supplied with a grounding
conductor and grounding type attachment plug. To reduce the risk of electric shock,
be certain that it is connected only to properly grounded, grounding-type receptacle".
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for XtremepowerUS 71045
Summary of Contents for XtremepowerUS 71045
- Page 1 GARDEN IRRIGATION SHALLOW WELL PUMP 1268 GPH 1.6 HP W/ CONTROLLER SKU: 71045 ASSEMBLY AND USER’S GUIDE 71045 IMPORTANT This Pump Has Been Evaluated for Use With Water Only WARNING -“Risk of electric shock - This pump is supplied with a grounding conductor and grounding type attachment plug.
- Page 3 TABLE OF CONTENTS TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS Legends and Symbols OVERVIEW (PRODUCT INFORMATION) PRODUCT INTRODUCTION PRODUCT OVERVIEW SPECIFICATIONS INSTALLATION PRESS CONTROL INSTALLATION PUMP PLACEMENT PIPING OPERATION PRIMING OPERATING TROUBLESHOOTING MAINTENANCE MOTOR PROTECTION WEARABLE PARTS CLEANING STORAGE ADDITIONAL TIPS DISPOSAL ENVIRONMENTALLY RESPONSIBLE DISPOSAL REPLACEMENT PARTS...
- Page 4 NOTICE: This label indicates important special instructions that are not directly related to hazards. USE OF NON-XTREMEPOWERUS REPLACEMENT PARTS VOIDS WARRANTY ATTENTION INSTALLER: This manual contains vital information regarding the installation, operation, and safe use of this pump. It is essential to provide this manual to the end user of the product. Failure to read and follow all instructions could lead to severe injuries.
- Page 5 IMPORTANT SAFETY INSTRUCTIONS WARNING Electrical Safet: • Wiring and electrical connections must be performed by a licensed electrician. • Install the pump and electrical components above the water level for indoor use to reduce the risk of electrical shock. • Keep the motor area as dry as possible and avoid washing or immersing the motor.
- Page 6 OVERVIEW (PRODUCT INFORMATION) OVERVIEW (PRODUCT INFORMATION) PRODUCT INTRODUCTION This versatile shallow well jet pump is ideal for a range of freshwater supply needs, including rural homes, cabins, farms, and more. It's designed for installations where the vertical distance from the pump to the water level doesn't exceed 26 FT.
- Page 7 OVERVIEW (PRODUCT INFORMATION) SPECIFICATIONS Model 71045 120 V / 60 HZ Mains Voltage / Frequency 1.6 HP Rated Power 1268 GPH Max. Pump Capacity 157 FT Max. Lift 26 FT Maximum Suction Level 95 °F Max. Water Temperature 1 INCH NPT...
- Page 8 INSTALLATION INSTALLATION NOTE • Switch off power during pump installation. • Keep equipment dry and ventilated at below 104°F. • User-caused flooding needs protective measures. • Inspect pump for cable or plug damage before use. PRESS CONTROL INSTALLATION • Attach the Press Control on the discharge outlet's top. •...
- Page 9 INSTALLATION NOTE Always use sealant tape on threaded connections. PIPING Use new, clean piping that matches flow rates, pressure, and water quality. • Remove and store sealing cap (3a) from suction inlet (3). • Connect hose adapters to suction inlet (3). •...
- Page 10 OPERATION OPERATION WARNING Ensure the pump is filled with water before use. Running the pump dry can damage the shaft seal and void the warranty. PRIMING • Confirm the suction line is connected to prevent water leakage. • If a service line is in place, open the discharge valve; if not, open a tap to release air from the suction line.
- Page 11 TROUBLE SHOOTING ISSUE CASE CORRECTIVE ACTION The electric motor Once the pump starts, it Prime the pump with water. doesn't fill with water. runs, but the pump The suction hose isn't doesn't draw water. Ensure proper sealing of pump components tightly sealed.
- Page 12 TROUBLE SHOOTING ISSUE CASE CORRECTIVE ACTION The heat-sensitive Electric motor Clean the pump's shell with pressurized overload due to switch can't turn off the water. pump. friction from impurities entering the motor. The pump's switch Absence of a Verify the presence of a valve on the suction non-return valve on remains either OFF or hose.
- Page 13 MAINTENANCE MAINTENANCE MOTOR PROTECTION WARNING • Prevent water from entering the motor. • Avoid spraying or cleaning the product with running water to prevent electric shock and damage. WEARABLE PARTS NOTE • The seals, pre-filter, flow sensor wheel, and non-return valve are subject to natural wear. •...
- Page 14 MAINTENANCE ADDITIONAL TIPS WARNING • Avoid exposing the pump to rain, humidity, dirt, or freezing conditions. • Prevent freezing, idling, or blockage by impurities. • In case of power cable damage, seek professional replacement, as short-circuit damage is not covered by the warranty. •...
- Page 15 DISPOSAL DISPOSAL ENVIRONMENTALLY RESPONSIBLE DISPOSAL NOTE • When replacing your appliance, don't discard it with household waste. Dispose of it in an environmentally safe manner. Electrical waste requires special handling and recycling, not standard disposal. Use recycling facilities where available, or consult your Local Authority or retailer for guidance.
- Page 16 REPLACEMENT PARTS REPLACEMENT PARTS PARTS DIAGRAM Item Description Item Description Item Description Screw Cover Stator Switch Box-Basic O-Ring Bearing Cable Buckle Plastic Cover Rotor Screw Screw Cover Main Body Screw O-Ring Wave Gasket Screw& Gasket Screw Motor Back Cover Switch Buckle Pump Head-SS Body Screw Switch...
- Page 17 DISCLAIMER DISCLAIMER PLEASE READ THE FOLLOWING CAREFULLY The manufacturer and/or distributor have provided the parts list and assembly diagram in this manual for reference purposes only. They do not make any representation or warranty to the buyer that they are qualified to make repairs to the product or replace any parts of the product. In fact, the manufacturer and/or distributor expressly state that all repairs and parts replacements should be undertaken by certified and licensed technicians, and not by the buyer.
