Coleman REVOLUTION II Safe Use & Care Manual page 13

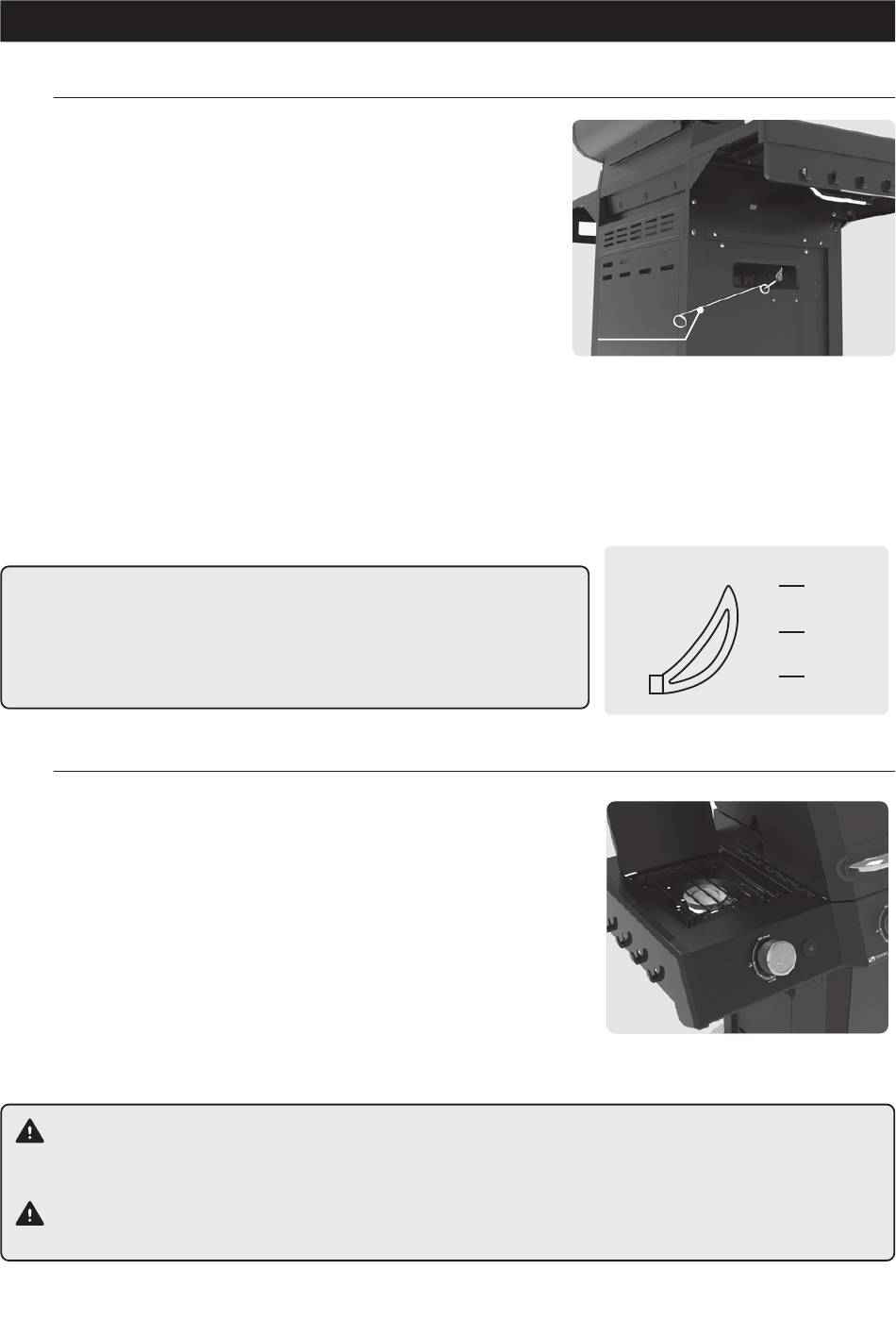

LIGHTING INSTRUCTIONS
Match lighting the main burner
1. Open the lid before lighting the burner.
2. Make sure all control knobs and the LP gas cylinder shut-off valve
are "OFF".
3. SLOWLY turn the LP gas cylinder shut-off valve counterclockwise to
open. Wait 30 seconds for the pressure to stabilize.
4. Position a barbecue lighter or a match inserted into the match holder
provided with your barbecue, through the lighting hole on the left
side of the burner box (see image A).
5. Push in and turn the far left burner control knob to the "HI" position.
The burner should light within 5 seconds.
6. If the burner does not light, turn the control knob to "OFF" and wait 5 minutes for the gas to dissipate. Repeat
the lighting procedure.
7. Once lit, push and turn the nearest control knob to the "HI" position. The flame will track around the burner and
light via the carryover tubes.
8. If the burner does not light within the first few attempts of match lighting, there may be a problem with the gas
supply. Turn off the gas at the burner and cylinder. DO NOT attempt to operate the barbecue until the problem is
found and corrected.
NOTE
: If burner does not light or flame is too low, see Troubleshooting
section of the owners manual.
NOTE
:
Observe flame height when lit: Flame should be
a blue / yellow colour between 1˝–2˝ when burner is on "HI" .
Lighting the side burner / sear burner (if applicable)
1. Open the side burner lid.
2. Check that the side burner control knob is turned "OFF".
3. Slowly, turn the LP gas cylinder shut-off valve counterclockwise to open.
Wait for pressure to stabilize.
4. Push in and turn the side burner knob to the "HI" position (see image B).
5. Push and hold the INSTASTART™ IGNITION button. You will hear a
clicking sound.
6. Check that the burner is lit. If the burner fails to light properly
within 3-5 seconds, turn the burner control knob "OFF". Wait five minutes
before attempting to light again. This will allow time for the released gas
to disperse.
CAUTION
The side burner flame is difficult to see in daylight. The side burner lid is for storage, close only after the side burner
has cooled.
ATTENTION
Not following the correct lighting and shut down procedure can activate the flow limiting device in the regulator.
A
Match Holder
B
13
2˝
1˝
0˝
