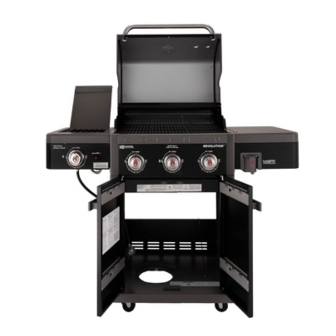

Coleman REVOLUTION RV-601BBQ-3-KIT Manual
  1. Manuals
  2. Brands
  3. Coleman Manuals
  4. Grill
  5. REVOLUTION RV-601BBQ-3-KIT
  6. Manual
Coleman REVOLUTION RV-601BBQ-3-KIT Manual

Coleman REVOLUTION RV-601BBQ-3-KIT Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WARRANTY
Do not re t ur n t h is p ro d u ct to t h e store.
IF YOU NEED HELP OR PARTS, CALL THE COLEMAN® HOTLINE
HOURS: 10AM-7PM EST Mon-Fri, CLOSED Saturday and Sunday
MISSING/DAMAGED PARTS • ASSEMBLY • TROUBLESHOOTING
TIP: ASSEMBLE YOUR GRILL IMMEDIATELY. MISSING OR DAMAGED PARTS MUST BE
Grill SAFETY CHECK-LIST
For your family's safety, please check the following:
READ and UNDERSTAND the owner's manual and safety instructions.
DO NOT position or operate grill under overhang or unprotected construction, against a wall,
near aluminum siding, windows, or fencing.
CHECK that the regulator nipple is centered into the LP tank valve. Do NOT cross thread this
connection. Cross threading may result in a fire, or explosion at the tank connection.
PERFORM LEAK TEST on all connections as specified in this user manual. Leak Checks should
be performed on all new grill's even if assembled by an assembler or gas technician. Leak
checks should be performed frequently thereafter.
BEFORE OPENING THE GAS SUPPLY, ensure the lid is open, control knobs are in "OFF"
position, gas is turned off, and the regulator is attached to tank correctly. Then follow the
PROPER LIGHTING PROCEDURE as shown in the manual. If above steps are not followed, you
may experience low flames, or other performance issues.
Beware HOT SURFACES including lid, lid handle, side tables, and control panel.
protective gloves while grilling.
Remove and clean the grease channel, front grease cup, side grease cup, and the heat
distribution plates, to avoid grease fires and flare ups.
Remove and clean the burners to avoid flash fires caused by spider webs and blockages.
Ensure that the grill is level.
1 -8 0 0 -249- 25 0 6
GE T H E L P F O R:
• WARRANTY ASSISTANCE • PRODUCT INFORMATION
CLAIMED WITHIN 30 DAYS OF PURCHASE.
REVOLUTION
STO P
1
TM
Wear

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REVOLUTION RV-601BBQ-3-KIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coleman REVOLUTION RV-601BBQ-3-KIT

Summary of Contents for Coleman REVOLUTION RV-601BBQ-3-KIT

  • Page 1 STO P Do not re t ur n t h is p ro d u ct to t h e store. IF YOU NEED HELP OR PARTS, CALL THE COLEMAN® HOTLINE 1 -8 0 0 -249- 25 0 6 HOURS: 10AM-7PM EST Mon-Fri, CLOSED Saturday and Sunday GE T H E L P F O R: MISSING/DAMAGED PARTS •...
  • Page 2 SAFE U S E & CARE MAN UAL THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES CAUTION DANGER Read and follow all safety statements, 1. If you smell Gas: assembly instructions, use and care a. Shut off gas to the appliance. directions before attempting to b.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Installation / Additional warnings Gas Hook-Ups and Warnings LP cylinder requirements LP cylinder removal, transport and storage LP cylinder filling Safety Hose and Regulator: Connecting regulator to LP cylinder Regulator flow limiting device (Propane) Resetting the regulator flow limiting feature Leak Testing Natural Gas Models Resetting flow limiting device (Natural Gas)

  • Page 4: Installation / Additional Warnings

    INSTALLATION Installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling for Recreational Vehicles, ANSI A 119.2/NFPA 1192, and CSA Z240 RV Series, Recreational Vehicle Code, as applicable.

  • Page 5: Gas Hook-Ups And Warnings

    GAS HOOK-UP’S AND WARNINGS What is liquid petroleum (LP) gas? • Liquefied petroleum gas, also called LP gas, liquid propane or propane is non-toxic, odorless and colorless when produced. For your safety, LP gas has been given an odor (similar to rotten cabbage) so that it can be detected.

  • Page 6: Lp Cylinder Removal, Transport And Storage

    DANGER • NEVER store a spare LP cylinder, empty or full, under or near the appliance. • Never fill a cylinder beyond 80% full. • An over filled or improperly stored cylinder is a hazard due to possible gas release from the safety relief valve. This could cause an intense fire or explosion with risk of property damage, serious injury or death.

  • Page 7: Safety Hose And Regulator

    SAFETY HOSE AND REGULATOR PROPANE MODELS: Regulator Your grill is designed to operate on LP gas at a pressure of 2.74Kpa Heat sensitive hand wheel (11” water column). A regulator preset to this pressure is supplied with your grill. QCC-1 QUICK CLOSING COUPLING Nipple has to be centered into the LP cylinder valve.

  • Page 8: Leak Testing

    7. Slowly turn “ON” the propane gas supply, 1/4 to 1/2 a turn. 8. Wait approximately 5 seconds for the hose and regulator pressure to stabilize (to prevent the flow limiting device feature from being re-activated). 9. Turn the ignition burner control knob, to the “HI” ( ) position.
  • Page 9 NATURAL GAS HOOK-UPS AND WARNINGS Natural gas requirements • Consult a Certified Gas Technician to ensure that the home supply line is suitable for a 3/8” natural gas supply line, capable of an input of up to 85,000 BTUs. • All gas supply plumbing must be carried out by a Certified Gas Technician, in accordance with the National Fuel Gas Code, ANSI Z223.1 in the United States.

  • Page 10: Operation - Lighting Instructions

    WARNING Most Coleman grill’s are sold Propane Ready, and are not convertible. Any attempt to convert a grill that does not have a convertible valve system will permanently damage the grill’s manifold and will be unusable. ONLY grill’s bearing the Convertible Valve System logo on the front of the grill’s control panel, are convertible from propane to natural gas.

  • Page 11: Operation - To Extinguish

    CAUTION Side stove flame may be difficult to see on a bright sunny day. CAUTION If side stove fails to light immediately, turn burner control knobs “OFF” and wait 5 minutes before re-lighting with a match. Match lighting the Side Stove / Sear Stove (if applicable) 1.

  • Page 12: Prevention

    PREVENTION ATTENTION Once lit, confirm that the burner is properly lit and that the flame pattern is as desired. If the flame pattern is other than normal, consult the troubleshooting guide for corrective action. Burner Flame Check Always do a visual check of all burners prior to lighting. Burners have been factory set for the correct air and gas mixture.

  • Page 13: Flash-Back Fires

    Flash-Back Fires Spiders and insects are attracted to the smell of gas, and often build nests inside your grill’s burners, causing the potential risk of a Flash-Back fire. Lighting your burners without first cleaning the venturi tubes, port holes, and interior of your burners, can lead to a serious Flash- Back fire resulting in property damage and/ or personal injury.

  • Page 14: Troubleshooting

    Press Ignition button and listen for rapid clicks. and index finger and push-in firmly, until you feel a ‘Click’. 4. Check that the main electrode and side stove electrode spark when the InstaStart™ Button is pressed. COLEMAN® REVOLUTION™ 3-BURNER / 4-BURNER PROBLEM IDENTIFYING THE CAUSE: Burners will not light •...
  • Page 15 PROBLEM IDENTIFYING THE CAUSE: Flame blows out on LOW PROPANE MODELS: • Flow limiting device in regulator has been activated either due to a leak or improper lighting. See page 4. • Low or out of propane. • High Wind condition – Adjust grill o shield from wind •...

  • Page 16: Care And Maintenace

    , prevent damage and deterioration due to moisture and humidity, and extend the life of your cooking grates. How to season your Coleman® Flare Free, Porcelain Cast Iron Top Grate: Wash cooking grates with soap and water. Do not submerge grates in water.
  • Page 17 Cleaning Flare-Free, Double-Stacked Cooking Grates During Preheat: Locate the grate cleaning tool that came with your grill. Use the tool to push debris to the back of the burner box (figure A-1). Use a grill brush to remove any remaining debris. Note: Using the cleaning tool to pull grease to the front of the cooking grates may clog the front grease channel and require more thorough cleaning of this Figure A-1...

  • Page 18: Regular Maintenance Regime

    CARE AND CLEANING ATTENTION: If you are experiencing any of the following performance or safety issues: 1) grill not reaching temperature potential, 2) yellow burner flames, 3) the smell gas, 4) popping noises, 5) delayed burner ignition, 6) uneven heat, 7) flash fires, or 8) grease fires, TURN “OFF” YOUR GRILL immediately and perform the following maintenance regime.

  • Page 19: Storing Your Grill

    Caring For Your Grills Exterior Surfaces ALL MATERIALS including stainless steel, porcelain, and painted steel parts can become stained, soiled and corroded by dirt, pollution, deposits from inappropriate cleaners and grease. Routine cleaning of exterior surfaces is necessary to remove contaminants and avoid permanent damage.

  • Page 20: Start Grilling

    • Always preheat the appliance on “HI” ( ) to the desired temperature before adding food. Coleman® Revolution™ Grills have been designed to offer a range of temperatures and unlike most grills , can quickly reach searing temperatures: • To Preheat: depending on the foods you are preparing, always preheat your grill to the temperature required.
  • Page 21 Grill Cooking Methods Direct Cooking — This is the most popular cooking method and involves cooking food directly over the flame, such as searing a steak. Indirect Cooking — Food is placed on the cooking grates, offset from the heat source. With the grill lid closed reflected heat surrounds the food cooking it more evenly and gently.

  • Page 22: General Side Stove / Sear Stove Tips

    General Side Stove Tips (if applicable) Your side stove will boil, sauté, stir fry and warm with ease. • For best results preheat your side stove for 10-15 minutes on “HI” ( • When boiling water or warming foods always ensure that you are using a covered pot or wok. •...
  • Page 23 WARNING: HOT SURFACES WARNING EXTERIOR SURFACES WILL BECOME VERY HOT. TO PREVENT BURNS, ALWAYS WEAR INSULATED PROTECTIVE GRILL MITTS WHEN WORKING AT THE GRILL. • KEEP AWAY FROM COMBUSTIBLE MATERIALS • KEEP CHILDREN AND PETS AWAY FROM THIS GAS FIRED APPLIANCE •...

  • Page 24: Warranty And Service

    1. Call the Coleman® Customer Care Hotline 1-800-249-2506. 2. Do not return to the store for replacement of damaged or defective parts. Coleman® Customer Care will ensure that all in-stock replacement parts arrive at your home within 3-10 business days.
  • Page 25 There are no other express warranties except as set forth herein and any applicable implied warranties of merchantability and fitness are limited in duration to the period of coverage of this express written limited warranty. ©2024 The Coleman Company, Inc. Coleman®, , and are registered trademarks of The Coleman Company, Inc. used under license.
