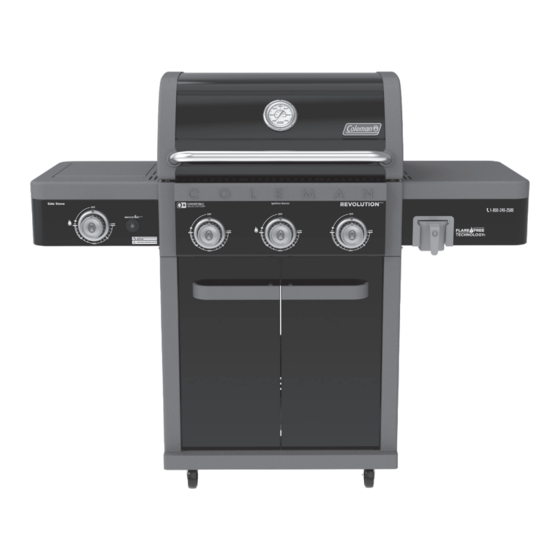

Coleman REVOLUTION RV-301BBQ Assembly Manual
  1. Manuals
  2. Brands
  3. Coleman Manuals
  4. Grill
  5. REVOLUTION RV-301BBQ
  6. Assembly manual

Coleman REVOLUTION RV-301BBQ Assembly Manual

3 burner
Hide thumbs

Advertisement

Quick Links

Download this manual
REVOLUTION
T M
3
BURNER
ASSEMBLY MANUAL
RV-301BBQ (G53261)
LIMITED 5-YEAR WARRANTY
Read and save manual for future reference.
Assemble your grill immediately. Missing or damaged parts
should be claimed within 30 days of purchase.
For product inquiries, parts, warranty and troubleshooting support,
please call 1-800-249-2506.
ANS Z21.58-2018 / CS
ANS Z21.58-2018 / CSA 1.6-2018
ANS Z21.58-2018 / CSA 1.6-2018
ANS Z21.58-2018 / CSA 1.6-2018
Master No. 211648
Manual Revision #: 2023.12.13 MK

Advertisement

loading
Need help?

Need help?

Do you have a question about the REVOLUTION RV-301BBQ and is the answer not in the manual?

Questions and answers

Related Manuals for Coleman REVOLUTION RV-301BBQ

Summary of Contents for Coleman REVOLUTION RV-301BBQ

  • Page 1 REVOLUTION BURNER ASSEMBLY MANUAL RV-301BBQ (G53261) LIMITED 5-YEAR WARRANTY Read and save manual for future reference. Assemble your grill immediately. Missing or damaged parts should be claimed within 30 days of purchase. For product inquiries, parts, warranty and troubleshooting support, please call 1-800-249-2506.

  • Page 2: Important Safety Warnings

    IMPORTANT SAFETY WARNINGS THIS MANUAL MUST REMAIN WITH THIS PRODUCT AT ALL TIMES CAUTION DANGER Read and follow all safety statements, 1. If you smell gas: assembly instructions, use and care directions a. Shut off gas to the appliance. before attempting to assemble and cook. b.

  • Page 3: Hardware Pack

    HARDWARE PACK TOOLS NEEDED FOR ASSEMBLY Description Part Number Qty. 1/4-20UNCx38 Screw 20120-13038-250 • #2 Phillips screwdriver (long and short) 1/4-20UNCx16 Screw 20120-13016-250 NO.10-24UNC x13 Screw 20124-10013-250 • 1/4” Slotted screwdriver (long and short) NO.8-32UNC x18 Screw 20132-08018-250 • Adjustable wrench NO.8-32 X 3/8, Philips Flat Head 20332-08010-250 •...
  • Page 4 PARTS LIST FOR RV-301BBQ (G53261) Item No. Qty. Description Part No. Item No. Qty. Description Part No. Top Lid Assembly G532-2000-02 Side Stove Side Shelf, Left G532-0900-01 Lid Handle G532-0004-01 Side Shelf Fascia, Left G532-J600-01 Thermometer G532-0007-01 Side Shelf Table Rear Brace, Thermometer Bezel G532-0006-01 G532-1300-01...
  • Page 5 EXPLODED DIAGRAM FOR RV-301BBQ (G53261) Extras Assembly Safe Use Manual & Care Hardware Manual Pack...
  • Page 6 ASSEMBLY INSTRUCTIONS 6 1 3...
  • Page 7 ASSEMBLY INSTRUCTIONS...
  • Page 8 ASSEMBLY INSTRUCTIONS...
  • Page 9 ASSEMBLY INSTRUCTIONS...
  • Page 10 ASSEMBLY INSTRUCTIONS...
  • Page 11 ASSEMBLY INSTRUCTIONS...
  • Page 12 ASSEMBLY INSTRUCTIONS...
  • Page 13 ASSEMBLY INSTRUCTIONS WARNING: WATCH YOUR HANDS!
  • Page 14 ASSEMBLY INSTRUCTIONS...
  • Page 15 ASSEMBLY INSTRUCTIONS...
  • Page 16 ASSEMBLY INSTRUCTIONS...
  • Page 17 ASSEMBLY INSTRUCTIONS TIP: Ensure that the rubber side of the rubberized washer makes contact with the burner box.
  • Page 18 ASSEMBLY INSTRUCTIONS...
  • Page 19 ASSEMBLY INSTRUCTIONS Front view...
  • Page 20 ASSEMBLY INSTRUCTIONS 6 10...
  • Page 21 ASSEMBLY INSTRUCTIONS 6 11...
  • Page 22 ASSEMBLY INSTRUCTIONS...
  • Page 23 ASSEMBLY INSTRUCTIONS Electronic Ignition Assembly: The electrode set for main burner (CF), side stove (DF) and Instastart button (CE3) are found under the control panel (CI) attached to the manifold (CA). Insert the electrode sets into the electronic ignition (CE1) (CE3) InstaStart Button...
  • Page 24 ASSEMBLY INSTRUCTIONS...
  • Page 25 ASSEMBLY INSTRUCTIONS...
  • Page 26 ASSEMBLY INSTRUCTIONS ATTENTION: EMPTY GREASE CUP AFTER EACH USE.
  • Page 27 ASSEMBLY INSTRUCTIONS...
  • Page 28 ASSEMBLY INSTRUCTIONS...
  • Page 29 ASSEMBLY INSTRUCTIONS ATTENTION: YOUR MODEL includes the CONVERTIBLE Before completing steps 19 to 23, follow VALVE SYSTEM™. If you would like the steps outlined in the CONVERTIBLE to convert your grill from PROPANE to VALVE SYSTEM™ instruction manual that NATURAL GAS, the following kit is required accompanied the kit.
  • Page 30 ASSEMBLY INSTRUCTIONS...
  • Page 31 ASSEMBLY INSTRUCTIONS ATTENTION: STACK GRATES BEFORE POSITIONING. Upper Cooking Grate: BF - Porcelain Cast Iron Cooking Grate Lower Cooking Grate: BK - Stamped Steel Cooking Grate...
  • Page 32 ASSEMBLY INSTRUCTIONS...
  • Page 33 ASSEMBLY INSTRUCTIONS FOR PROPANE MODEL ONLY. FOR NATURAL GAS MODEL, FOLLOW STEP 24. ATTENTION: DO NOT STORE EXTRA PROPANE TANK WITHIN GRILL CART.
  • Page 34 ASSEMBLY INSTRUCTIONS HOW TO CONVERT YOUR GRILL TO NATURAL GAS This grill is sold propane-ready. To convert it to natural gas, purchase the Coleman Convertible Valve System Kit.

  • Page 35: Additional Warnings

    ADDITIONAL WARNINGS You have now completed the assembly of your Coleman® Revolution™ grill. NEXT STEPS: 1. Position your Grill 2. Read Safe Use & Care Manual 3. Perform Grill Safety Check-list WARNING: WARNING HOT SURFACES: FOR YOUR FAMILIES SAFETY, DO NOT ATTEMPT TO LIGHT...
