Quick Installation Guide
2U4G-ROME-2T
Cable List
A
GPU Power Cable (Red & Orange /L=800mm ; Blue & Green /L=500mm)
B
MINISAS HD to SATA Cable (L=700mm)
C
SLIMSAS to OCULINK Cable (L=700mm)
D
RB Power Cable (L=500mm)
E
Power ATX Cable (8PIN) (L=350mm)
F
PMBus Cable (L=390mm)
G
Power ATX Cable (24 PIN TO 24 PIN ) (L=150mm)
H
HDD Power Cable (HDD PWR 2*4P TO 2*6P; L=800mm)
I
SLIMSAS Cables (L=700mm)
J
SLIMSAS Cables (L=700mm)
K
SLIMSAS Cables (L=600mm)
L
PCIE X16 Riser Cable (L=80mm)
M
USB Cable (USD 3.0(20P) TO 2*5P HEADER) (L=880mm)
N
Front Control Cable (2*10P(2.0) TO 2*10P+2*5P(2.54))
O
Fan Cables

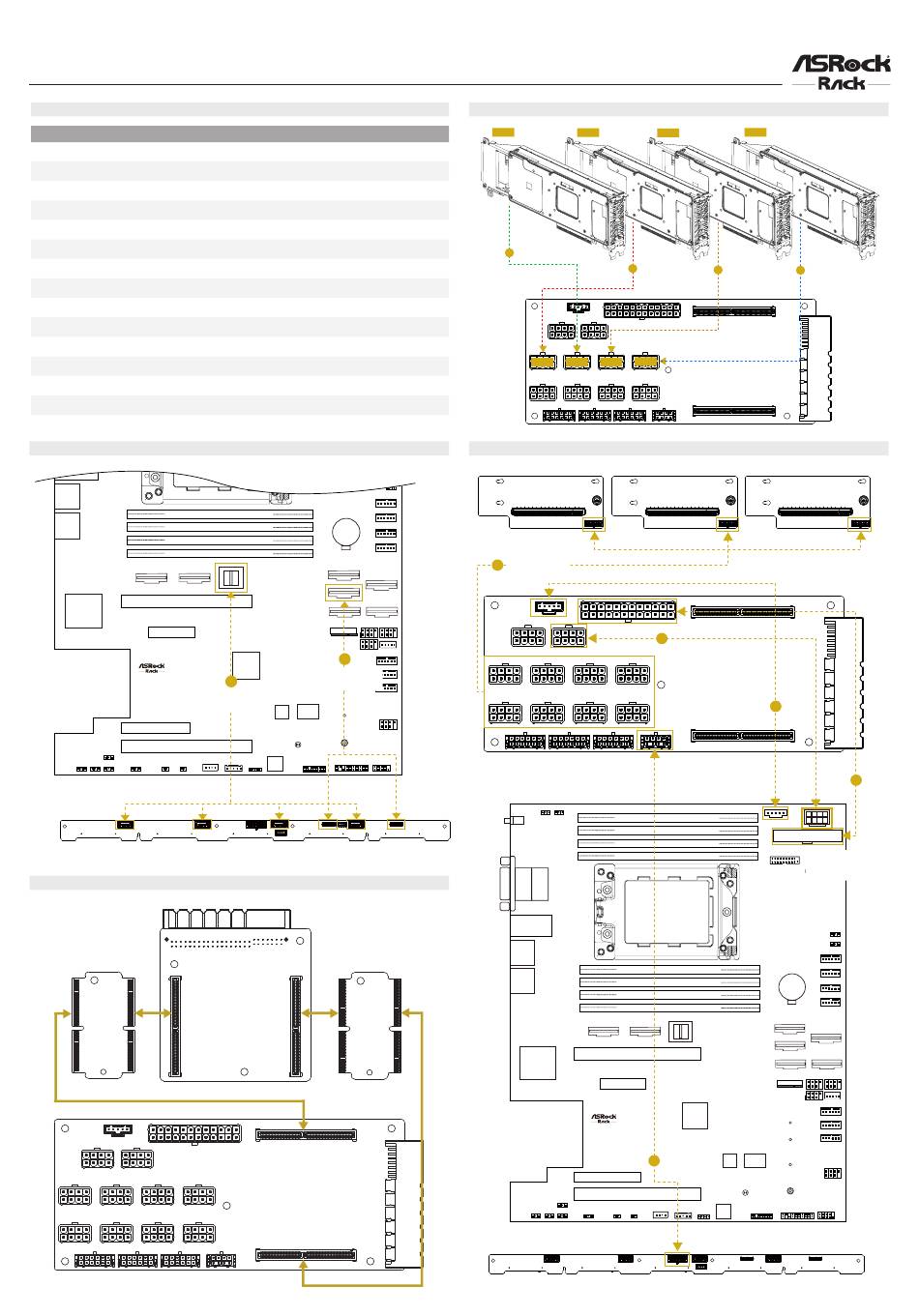

MINISAS HD to SATA / SLIMSAS to OcuLink Connection
ROMED8QM-2T
Motherbaord (MB)
HDD Backplane Board (BPB)
MNG Cable (L=960mm)
PDB Board Connection
Power Distribution Board (PDB_U)
Power Distribution Board (PDB_B)
Power Distribution Board (PDB)
Item
C
SLIMSAS to OCULINK
B
Cable (L=700mm)
MINISAS HD to SATA
Cable (L=700mm)
Power Distribution Board (PDB_B)
GPU Power Connection
GPU4
GPU3
GPU Power Cable
A
(Green / L=500mm)
A
GPU Power Cable
(Red / L=800mm)
GPU1
GPU3
GPU4
GPU2
Power Distribution Board (2U4G_PDB)
RB / MB / BPB Power Connection
Riser Board (G4_SL2P)
RB Power Cable
D
(L=500mm)
Power Distribution Board (2U4G_PDB)
ROMED8QM-2T
Motherbaord (MB)
HDD Backplane Board (BPB)
GPU1
GPU2
GPU Power Cable
GPU Power Cable
A
A
(Orange / L=800mm)
(Blue / L=500mm)
Riser Board (G4_SL2P)
Riser Board (G4_SL2P)
E
Power ATX Cable
(8PIN) (L=350mm)
F
PMBus Cable
(L=390mm)
Power ATX Cable
(24 PIN TO 24 PIN )
(L=150mm)
HDD Power Cable
H
(HDD PWR 2*4P TO 2*6P;
L=800mm)
G
