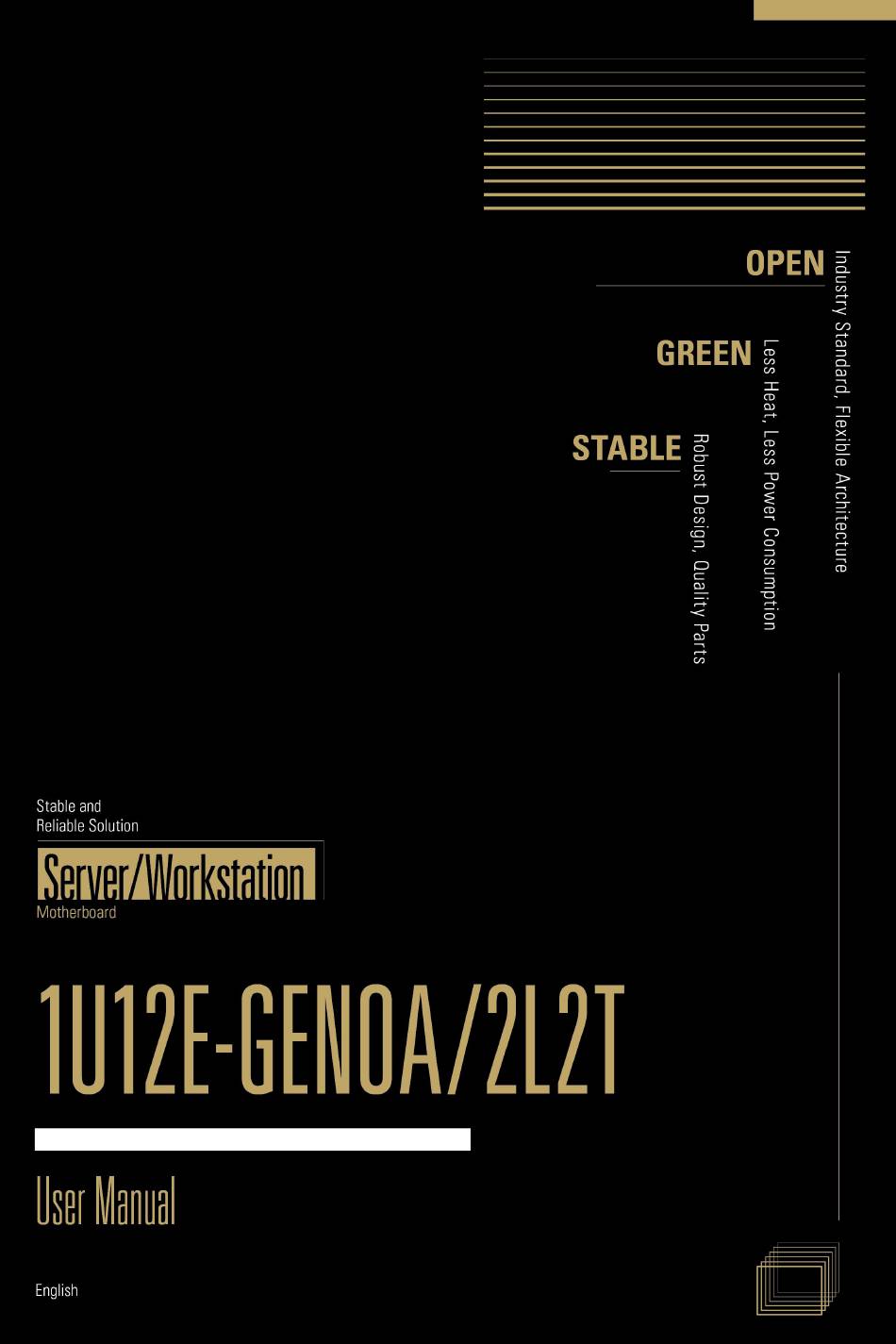

ASROCK Rack 1U12E-GENOA/2L2T User Manual

Server/workstation motherboard
Hide thumbs Also See for 1U12E-GENOA/2L2T:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1U12E-GENOA/2L2T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ASROCK Rack 1U12E-GENOA/2L2T

Summary of Contents for ASROCK Rack 1U12E-GENOA/2L2T

  • Page 2: Copyright Notice

    In no event shall ASRock Rack, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock Rack has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 3 “Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/ perchlorate” ASRock Rack’s Website: www.ASRockRack.com Setting up the Server in a Restricted Access Location/Restricted Access Area • Access can only be gained by service persons or by users who have been instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken.

  • Page 4: Replaceable Batteries

    Replaceable Batteries CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS Warning When removal of the chassis lid required for servicing: - Turn off power and unplug any power cords/cables, and - Reinstall the chassis lid before restoring power.

  • Page 5: Table Of Contents

    Contents Chapter 1 Introduction Shipping Box Contents Specifications Chapter 2 Server System Overview System Components Internal Features System Front Panel System Rear Panel Front Control Panel Buttons and LEDs Drive Tray LEDs Chapter 3 Hardware Installation and Maintenance Server Top Cover Hard Drive Install OCP System Fan...

  • Page 7: Chapter 1 Introduction

    Thank you for purchasing 1U12E-GENOA/2L2T, a reliable barebone system produced under ASRock Rack ’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock Rack’s commitment to quality and endurance. This guide provides the instructions of insertion and extraction of chassis components, such as chassis covers, system fans, power supplies, hard disk drive trays, and other main components this system supports.

  • Page 8: Shipping Box Contents

    1.1 Shipping Box Contents Item Quantity 1U12E-GENOA/2L2T Barebone (1U form factor) System Boards (MB)* Power Supply Units* System Fans* HDD Backplane (BPB)* Power Distribution Board (PDB)* Riser Cards* Accessory Box 1U Cooler Slide Rail Quick Installation Guide * The components are pre-installed.

  • Page 9: Specifications

    1U12E-GENOA/2L2T 1.2 Specifications 1U12E-GENOA/2L2T System Physical Status Form Factor 1U Rackmount Dimension 676.5 x 438 x 43.4 mm (26.6'' x 17.2'' x 1.7'') Support MB GENOAD24QM3-2L2T/BCM Front Panel Buttons • Power • Reset • ID buttons LEDs • Power • LAN 1/2 •...

  • Page 10: Chapter 2 Server System Overview

    Chapter 2 Server System Overview This chapter provides diagrams showing the location of important components of the server system. 2.1 System Components Riser Card Bracket 2 x Power Supply Units Riser Card Bracket 6 x System Fans Server Board Front Controls and Indicators 12 x 2.5”...

  • Page 11: Internal Features

    1U12E-GENOA/2L2T 2.2 Internal Features...
  • Page 12 Description Riser Card (PCIe x16) (RB1) Riser Card (PCIe x16) (RB2) Serverboard 2 x Power Supply Units (PSU) System Fan 1 System Fan 2 System Fan 3 System Fan 4 System Fan 5 System Fan 6 2.5" HDD Backplane Board (BPB) Front USB 3.2 Gent1 Port 12 x 2.5"...

  • Page 13: System Front Panel

    1U12E-GENOA/2L2T 2.3 System Front Panel HDD2 HDD10 HDD12 HDD4 HDD6 HDD8 HDD9 HDD11 HDD1 HDD3 HDD5 HDD7 Description 1 x USB 3.2 Gen1 Port 12 x 2.5" Hot-Swap HDD Trays (2.5" NVMe / SATA SSD / SAS HDD) Control Panel (depends on the specification of the server board) 2.4 System Rear Panel...

  • Page 14: Front Control Panel Buttons And Leds

    2.5 Front Control Panel Buttons and LEDs Front Control Panel LEFT SIDE RIGHT SIDE Description USB 3.2 Gen1 Port System Reset Button NMI (Nonmaskable Interrupt) Button Power Button and LED ID Button and LED HDD Status LED System Status LED LAN1 and Activity LED LAN2 and Activity LED *Please be noted that the functions are supported depending on the type of the server board.

  • Page 15: Status Led Definitions

    1U12E-GENOA/2L2T Status LED Definitions Power LED Status Description Green Power on Power off LAN1, LAN2 LED Status Description Amber Link between system and network or no access Blinking Amber Network access...

  • Page 16: Drive Tray Leds

    LEDs Hard Drive Tray Description Hard Drive Tray Status LED Hard Drive Tray Activity LED LED Definitions Activity (No.2) Status (No.1) Description Drive Not Present Drive Present(no active) Solid Green Solid Blue Drive Present(active) Green Blinking at 4Hz Solid Blue Locate Solid Green Blue Blinking at 4Hz...

  • Page 17: Chapter 3 Hardware Installation And Maintenance

    1U12E-GENOA/2L2T Chapter 3 Hardware Installation and Maintenance This chapter helps you assemble the chassis and install components. Before You Begin Before you work with the server, pay close attention to the “Important Safety Instructions” at the beginning of this manual.

  • Page 18: Server Top Cover

    3.1 Server Top Cover Removing the Server Top Cover 1. Before removing the top cover, power off the server and unplug the power cord. 2. The system must be operated with the chassis top cover installed to ensure proper cooling. 1.
  • Page 19 1U12E-GENOA/2L2T...

  • Page 20: Installing The Server Top Cover

    Installing the Server Top Cover 1. For installation, align both side latches with the cutouts. Lower and slide the top front cover toward the FRONT and secure it with screws to the chassis. 2. Lower and slide the top rear cover toward the FRONT and secure it with a rear thumbscrew and a top screw to the chassis.
  • Page 21 1U12E-GENOA/2L2T...

  • Page 22: Hard Drive

    3.2 Hard Drive Removing Hard Drive Trays from the Chassis 1. Press the locking lever latch to open the lever. 2. Pull the driver carrier out.
  • Page 23 1U12E-GENOA/2L2T Install 2.5” Hard Drive 1. Place the HDD into the carrier with printed circuit board side facing down. 2. Use the screws to secure the HDD. Slide the driver carrier into the HDD bay. Push in the locking lever to lock the HDD carrier into place.

  • Page 24: Install Ocp

    3.3 Install OCP Remove Slot Cover Release the thumbscrew that secures the slot cover to the chassis and remove the slot cover. Install OCP Card Install an OCP card into the slot. Make sure the card is well seated and hand-tighten the thumbscrew on the face plate.

  • Page 25: System Fan

    1U12E-GENOA/2L2T 3.4 System Fan Replace FAN Press and hold the fan clip on to replace the fan.

  • Page 26: Replace Psu

    3.5 Replace PSU Press the locking lever and hold on the handle to pull the Old PSU out. Slide the New PSU into the power supply...

  • Page 27: Add-In Card

    1U12E-GENOA/2L2T 3.6 Add-in Card Replace Add-in Card 1. Release the thumbscrew to lift up the riser-card bracket. 2. Remove the screw to slide the blanking plate out.

  • Page 28: Installing Add-In Card

    Installing Add-in Card 1. Install riser card to the bracket and secure it with screws. 2. Install the add-on card to the bracket assembly and secure it with a screw.
  • Page 29 1U12E-GENOA/2L2T Install the riser-card assembly to the chassis with the thumbscrew. The illustration is for references only. The actual location may be slightly differnet by models.

  • Page 30: Installing The Cpu

    Installing the CPU 1. Before you insert the CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found.
  • Page 31 1U12E-GENOA/2L2T...
  • Page 32 Carr ier Frame with CPU Rail Frame Please make sure that the carrier frame with CPU is closely attached to the rail frame while inserting it. Install the carrier frame with CPU. Don’t separate them.
  • Page 33 1U12E-GENOA/2L2T...
  • Page 34 Set your torque wrench to 1.54 in-lb. One fourth a turn each time. Tighten the screws in a sequential order 1 > 2 > 3 > 4 > 5 > 6. Loosen the screws in a reverse order. 10-4 10-2 10-5 10-6 10-1...

  • Page 35: Installation Of Memory Modules (Dimm)

    1U12E-GENOA/2L2T Installation of Memory Modules (DIMM) The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation. For more information about DIMM installation, please refer to the User Manual that...
  • Page 36 Type B (Two Clips)
  • Page 37 1U12E-GENOA/2L2T Block Diagram (GENOAD24QM3-2L2T/BCM) 2 x DDR5 LRDIMM/RDIMM 2 x DDR5 LRDIMM/RDIMM 2 x DDR5 LRDIMM/RDIMM 2 x DDR5 LRDIMM/RDIMM 2 x DDR5 LRDIMM/RDIMM 2 x DDR5 LRDIMM/RDIMM 2 x DDR5 LRDIMM/RDIMM 2 x DDR5 LRDIMM/RDIMM 2 x DDR5 LRDIMM/RDIMM...

  • Page 38: Contact Information

    Contact Information Contact ASRock Rack or want to know more about ASRock Rack, you’re welcome to visit ASRock Rack’s website at http://www.asrockrack.com; or contact the dealer for further information. For technical questions, please submit a support request form at https://event.
