*15G065321000AR*
P/N: 15G065321000AR V1.0

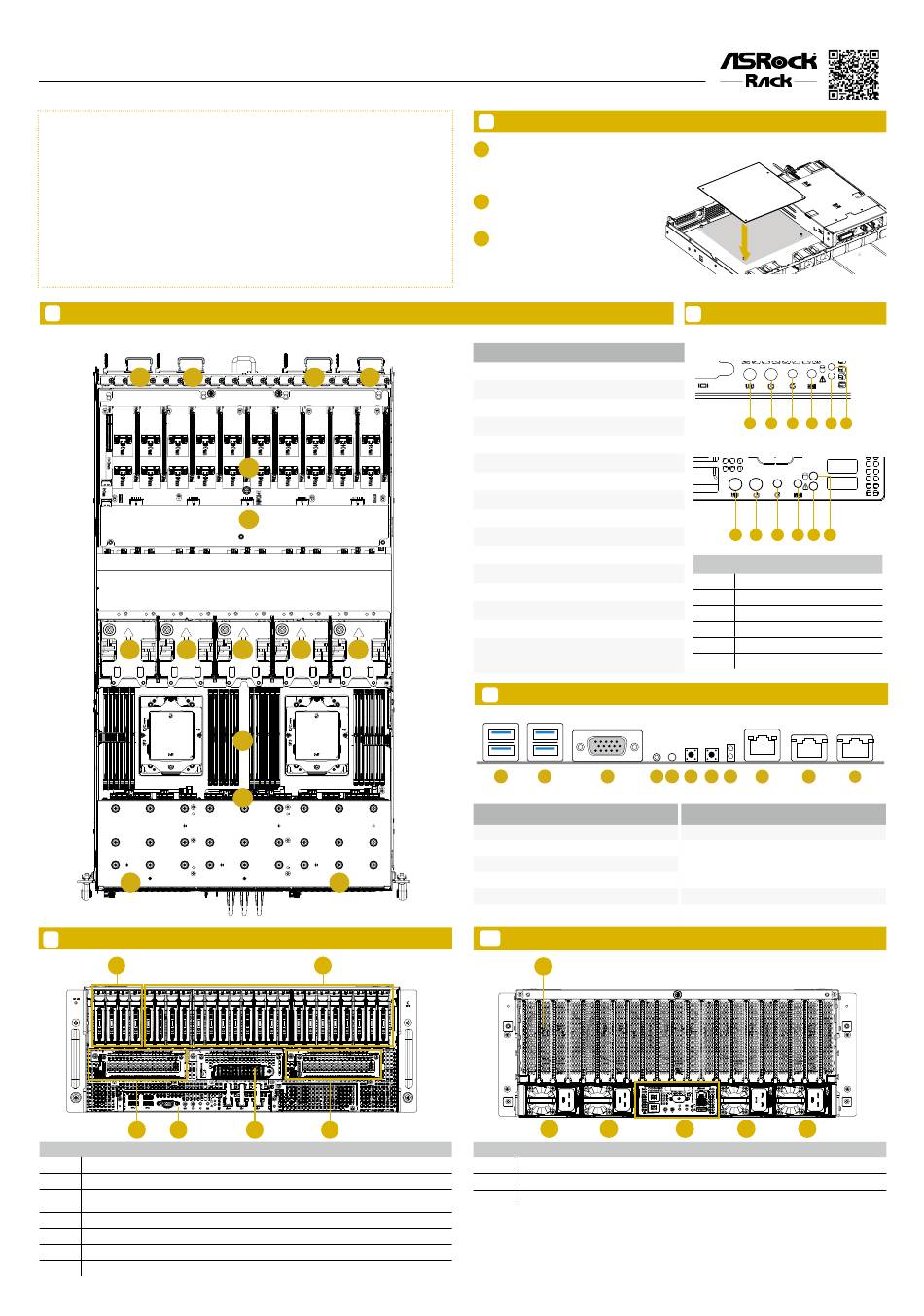

Quick Installation Guide
4U8G-EGS2
The User's Manual is available for download from the ASRock Rack's official website at http://
www.asrockrack.com.
Take note of the following precautions before installing the components or change any settings.
1.
Unplug the power cord from the wall socket before touching any components.
2.
To avoid damaging the components due to static electricity, NEVER place the components
directly on the carpet or the like. Also remember to use a grounded wrist strap or touch a safety
grounded object before installation.
3.
Hold components by the edges and do not touch the ICs.
4.
Whenever uninstalling any components, place them on a grounded anti-static pad or in the bag
that comes with the components.
5.
When placing screws into the screw holes to secure any components to the barebone, please
do not over-tighten the screws! Doing so may damage both components and barebone.
2
Top View
1
2
7
8
14
5
Front Panel
1
3
4
No.
Description
1
4 x Hot-Swap 2.5" NVMe (PCIe5.0 x4) drive bays
2
8 x Hot-Swap 2.5" SATA drive bays
12 Hot-swap 2.5" SATA/SAS* drive bays
3
*Additional RAID/HBA card required to support the 20 x 2.5" SATA/SAS drive bays.
4
1 x Add-in Card Slots (PCIe FHHL)
5
I/O Shield (depends on the specification of the server board)
6
1 x OCP NIC 3.0 (PCIe5.0 x8)
7
1 x Add-in Card Slots (PCIe FHHL) PCIe5.0 x8
3
4
5
6
9
10
11
12
13
15
2
5
6
1
Replace Server Board
Carefully unplug all cables and release
1
thumbscrews on the ser ver board to
remove them from the barebone.
Align the replaced server board with the
2
mounting holes
A f f i x t he screws clock w ise into t he
3
mounting holes in all of the corners of
the server board.
Do not over-tighten the screws
No.
From
1
Common Redundant Power Supply 1
2
Common Redundant Power Supply 2
3
Common Redundant Power Supply 3
4
Common Redundant Power Supply 4
5
Switch Board (SWB)
6
Power Distribution Board (PDB)
7
System Fan 1
8
System Fan 2
9
System Fan 3
10
System Fan 4
11
System Fan 5
12
Serverboard
13
Hard Drive Backplane Board (BPB)
14
4 x Hot-Swap 2.5" NVMe (PCIe5.0 x4) drive bays
15
8 x Hot-Swap 2.5" SATA drive bays
12 Hot-swap 2.5" SATA/SAS* drive bays
16
*Additional RAID/HBA card required to support the
20 x 2.5" SATA/SAS drive bays.
I/O Panel
4
1
2
3
No.
Description
1
USB 3.2 Gen1 Ports (USB3_1_2)
2
USB 3.2 Gen1 Ports (USB3_3_4)
3
VGA Header (VGA1)
4
UID Switch (UID1)
5
Power Switch/LED (PWR_BTN)
6
Reset Button (RST_BTN)
6
Rear Panel
1
2
2
No.
Description
1
Rear Vent
2
4 x Common Redundant Power Supply 3
3
I/O Shield
www.asrockrack.com
Control Panel
3
Front Control Panel
1
2
3
4
Rear Control Panel
1
2
3
4
5
6
No.
Description
1
UID Button and LED
2
Power Button and LED
3
System Reset Button
4
NMI (Nonmaskable Interrupt) Button
5
System Event LED
6
HDD Activity LED
4
5
6
7
8
9
10
No.
Description
7
NMI Button (NMI_BTN)
HDD/System Fault LED (HDD_SYS_
8
LED)
9
IPMI LAN Header (IPMI_LAN1)
10
1G LAN RJ-45 Port (LAN1, shared NIC)
11
1G LAN RJ-45 Port (LAN2)
3
2
2
5
6
11
