1U10E Series

1U8S2E Series

User Manual

Version 1.0

Published May 2022

Table of Contents

Need help?

Do you have a question about the 1U10E Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ASROCK Rack 1U10E Series

Page 2: Copyright Notice
In no event shall ASRock Rack, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock Rack has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
Page 3: Replaceable Batteries
Setting up the Server in a Restricted Access Location • Access can only be gained by service persons or by users who have been instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken. • Access is through the use of a tool or lock and key, or other means of security, and is controlled by the authority responsible for the location.
Page 4: Table Of Contents
Contents Chapter 1 Introduction Shipping Box Contents Specifications Chapter 2 Server System Overview System Components Internal Features System Front Panel System Rear Panel Front Control Panel Buttons and LEDs Drive Tray LEDs Chapter 3 Hardware Installation and Maintenance Server Top Cover Hard Drive System Fan Server Board...
Page 5 Appendix C Block Diagrm (ROMED8QM-2T) Block Diagrm (ROMED8U-2T) Block Diagrm (SPC621D8U-2T)
Page 7: Chapter 1 Introduction
In case any modifications of this documentation occur, the updated version will be available on ASRock Rack’s website without further notice. If you require technical support related to this product, please visit our website for specific information about the model you are using.
Page 8: Shipping Box Contents
1.1 Shipping Box Contents Quantity Item 1U10E- 1U8S2E- 1U8S2E- ROME/2T ROME/2T ICX/2T 1U8S2E Series Barebone System Boards (MB)* Power Supply Units* System Fans* HDD Backplane (BPB)* Front Panel Board (FPB)* Fan Board (FB)* Accessory Box 1U Cooler Riser Board Slide Rail * The components are pre-installed.
Page 9: Specifications
1U10E Series 1U8S2E Series 1.2 Specifications 1U10E / 1U8S2E Series System Physical Status Form Factor 1U Rackmount Dimension • 1U10E-ROME/2T: 625.0 mm x 430.0 mm x 43.5 mm (L/W/H) • 1U8S2E-ROME/2T / 1U8S2E-ICX/2T: 625.0 mm x 430.0 mm x 43.5 mm (L/W/H)
Page 10: Chapter 2 Server System Overview

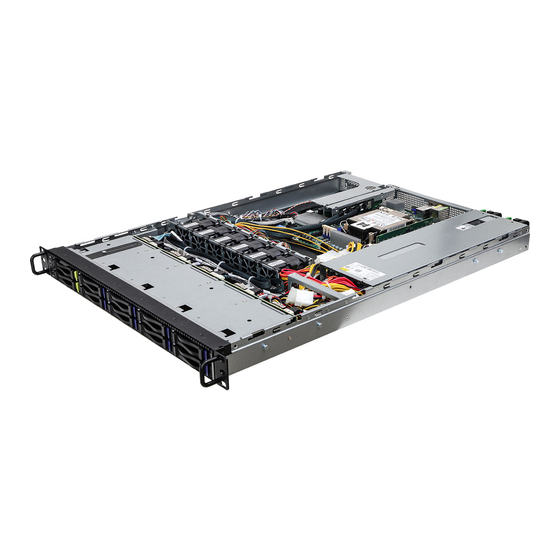

Chapter 2 Server System Overview This chapter provides diagrams showing the location of important components of the server system. 2.1 System Components 1U10E Series: 2 x Power Supply Units Riser Board 6 x System Fans Server Board 10 x 2.5” Hot-Swap HDD Trays...
Page 11 1U10E Series 1U8S2E Series 1U8S2E Series: 2 x Power Supply Units Riser Board (for BPB Slimline connections) Riser Board (PCIe x16) 6 x System Fans Server Board 10 x 2.5” Hot-Swap HDD Trays Front Controls and Indicators...
Page 12: Internal Features
2.2 Internal Features 1U10E Series: Description Server Board LAN Mezzanine Card Riser Board (PCIe x16) 2 x Power Supply Units System Fan1, 4056...
Page 13 1U10E Series 1U8S2E Series System Fan2, 4056 System Fan3, 4056 System Fan4, 4056 System Fan5, 4056 System Fan6, 4056 Power Distribution Board (PDB) Backplane Board (BPB) Front Panel Board (FPB) 10 x 2.5” HDD Trays...
Page 14 1U8S2E Series: Description Server Board Riser Board (PCIe x16) 1U8S2E-ICX/2T: Riser Board (for BPB SLIMLINE connections) 1U8S2E-ROME/2T: N/A 2 x Power Supply Units 1U8S2E-ICX/2T: Fan Board (FB) 1U8S2E-ROME/2T: N/A...
Page 15 1U10E Series 1U8S2E Series System Fan6, 4056 System Fan5, 4056 System Fan4, 4056 System Fan3, 4056 System Fan2, 4056 System Fan1, 4056 Power Distribution Board (PDB) Backplane Board (BPB) Front Panel Board (FPB) 10 x 2.5” HDD Trays...
Page 16: System Front Panel
2.3 System Front Panel 1U10E Series HDD10 HDD2 HDD4 HDD6 HDD8 NVME/SATA NVME/SATA NVME/SATA NVME/SATA NVME/SATA NVME/SATA NVME/SATA NVME/SATA NVME/SATA NVME/SATA HDD9 HDD1 HDD3 HDD5 HDD7 Description Control Panel Buttons and LEDs 1 x USB 3.2 Gen1 Port 10 x 2.5" Hot-Swap HDD Trays (10*2.5" NVME+SATA) : All ten drive trays (HDD1~HDD10) can support 2.5"...
Page 17: System Rear Panel
1U10E Series 1U8S2E Series 2.4 System Rear Panel Description 2 x Power Supply Units I/O Shield (The I/O shield varies depending on the specifications of the serverboard.) Rear Vent PCI Express Slot (for the riser card) Mezzanine Card Slot (The mezzaine card may not be supported depending on the serverboard of you system.)
Page 18: Front Control Panel Buttons And Leds
2.5 Front Control Panel Buttons and LEDs Front Control Panel Description System Reset Button Power Button NMI (Nonmaskable Interrupt) Button Power LED LAN1 Activity LED LAN2 Activity LED USB 3.2 Gen1 Port *Please be noted that the functions are supported depending on the type of the server board. NMI (Nonmaskable Interrupt) Button Press the NMI button with a paper clip or pin to generate a nonmaskable interrupt and to put the server in a halt state for examination.
Page 19: Status Led Definitions
1U10E Series 1U8S2E Series Status LED Definitions Power LED Status Description Green Power on Power off LAN1, LAN2 LED Status Description Amber Link between system and network or no access Blinking Amber Network access...
Page 20: Drive Tray Leds
2.6 Drive Tray LEDs Description HDD Activity LED HDD Status LED Status LED Definitions HDD Activity LED Status Description Solid Green HDD present, no activity Blinking Green HDD accessing / RAID rebuild (with HDD Status LED blinking Red alternatively) HDD not present HDD Status LED Status Description...
Page 21: Chapter 3 Hardware Installation And Maintenance
1U10E Series 1U8S2E Series Chapter 3 Hardware Installation and Maintenance This chapter helps you assemble the chassis and install components. Before You Begin Before you work with the server, pay close attention to the “Important Safety Instructions” at the beginning of this manual.
Page 22: Server Top Cover
3.1 Server Top Cover Removing the Server Top Cover 1. Before removing the top cover, power off the server and unplug the power cord. 2. The system must be operated with the chassis top cover installed to ensure proper cooling. 1.
Page 23 1U10E Series 1U8S2E Series Installing the Server Top Cover 1. Lower the top cover on the chassis, making sure the side latches align with the cutouts. Slide the top cover toward the front. 2. Press down on the latches and slide the top cover into place.
Page 24: Hard Drive
3.2 Hard Drive Removing Hard Drive Trays from the Chassis 1. Press the locking lever latch on the drive tray to unlock the retention lever. 2. Rotate the lever out and away from the module bay and pull the hard drive out of the HDD tray.
Page 25 1U10E Series 1U8S2E Series Installing a Hard Drive to the Hard Drive Tray 1. Engage two embossed pins into the side dimples on the tray. 2. Carefully push down the other side of the tray until the other two embossed pins and side dimples lock into place.
Page 26: System Fan
3.3 System Fan Replacing the Simple-Swap Fan 1. Unplug the fan connecter and remove the failed fan. 2. Align the mounting holes on the fan bar with the fan mounts on the replacement fan corners. 3. Gently place the fan on the fan bar. Make sure the fan is well seated. 4.
Page 27: Server Board
1U10E Series 1U8S2E Series 3.4 Server Board Follow the steps below to install the server board to the chassis. 1. Hold the server board only by the edges. 2. Gently place the server board into the chassis. Sit the server board on the server board tray.
Page 28: Add-On Card
3.5 Add-on Card 1. You can install an add-on card to the chassis only when you have a riser card installed on the server board. 2. Before installing the add-on card, power off the server and unplug the power cord. Removing the Blanking Plate from the Chassis 1.
Page 29: Installing The Add-On Card
1U10E Series 1U8S2E Series Installing the Add-on Card Before installing an add-on card, you need to install a mezzaine card and a riser card first. Please refer to the followings for instructions. 1. Install the add-on card to the assembly.
Page 30: Mezzanine Card
3.6 Mezzanine Card Before installing a Mezzanine card, please remove the riser-card assembly from the chassis first. 1. Remove the screws that secure the blanking plate on the chassis. Keep the screws for later use. . 2. Slide the blanking plate out sideways.
Page 31 1U10E Series 1U8S2E Series Install the four spacer supports into the server board around the mezzanine card slot. Note: Please contact the ASRockRack Technical Support Team for more information about the mezzanine adapter card and the supported mezzzaine cards. 4. Gently insert the mezzanine card into the mezzanine card slot.
Page 32: Installing The Cpu (Lga 4094)
Appendix A Installing the CPU (LGA 4094) 1. Before you insert the CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found.
Page 33 1U10E Series 1U8S2E Series...
Page 35 1U10E Series 1U8S2E Series...
Page 36: Installing The Cpu (Lga 4189)
Installing the CPU (LGA 4189) 1. Before you insert the CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found.
Page 37 1U10E Series 1U8S2E Series 1. Before you installed the heatsink, you need to spray thermal interface material between the CPU and the heatsink to improve heat dissipation. 2. Illustration in this documentation are examples only. Heatsink or fan cooler type may differ.
Page 39 1U10E Series 1U8S2E Series CPU Carrier...
Page 40 Heatsink CPU Carrier Socket...
Page 41 1U10E Series 1U8S2E Series...
Page 42: Installation Of Memory Modules (Single Clip)
Appendix B Installation of Memory Modules (single clip)
Page 43: Installation Of Memory Modules (Double Clips)
1U10E Series 1U8S2E Series Installation of Memory Modules (double clips)
Page 44 Appendix C Block Diagrm (ROMED8QM-2T) MAC1 Ethernet 1.1 & PCI-Express 10/100/1000 PCIE Gen2 x 1 DDR4 DDR4 DDR4 DDR4 USB2.0 x 2 PCI-E Gen4 DDR4 DDR4 DDR4 DDR4 SATA Gen3 x 1...
Page 45 1U10E Series 1U8S2E Series Block Diagrm (ROMED8U-2T) PCI-E Gen3 G1 Port4 MAC1 Video Ethernet 10/100/1000...
Page 46 Block Diagrm (SPC621D8U-2T)
