ASROCK Rack 1U4LW-B650/2L2T RPSU Quick Installation Manual

*15G065262000AR*
P/N: 15G065262000AR V1.0
Quick Installation Guide
1U4LW-B650/2L2T RPSU
Cable List
No. Description
1 SATA 7P 6G Cable (4 to 4); L=230/330/410/510mm
2 System Fan Cable (4028 H/S FAN W/1*4P); L=600mm
3 System Fan Cable (4028 H/S FAN W/1*4P); L=600mm
4 System Fan Cable (4028 H/S FAN W/1*4P); L=600mm
5 System Fan Cable (4028 H/S FAN W/1*4P); L=600mm
6 System Fan Cable (4028 H/S FAN W/1*4P); L=600mm

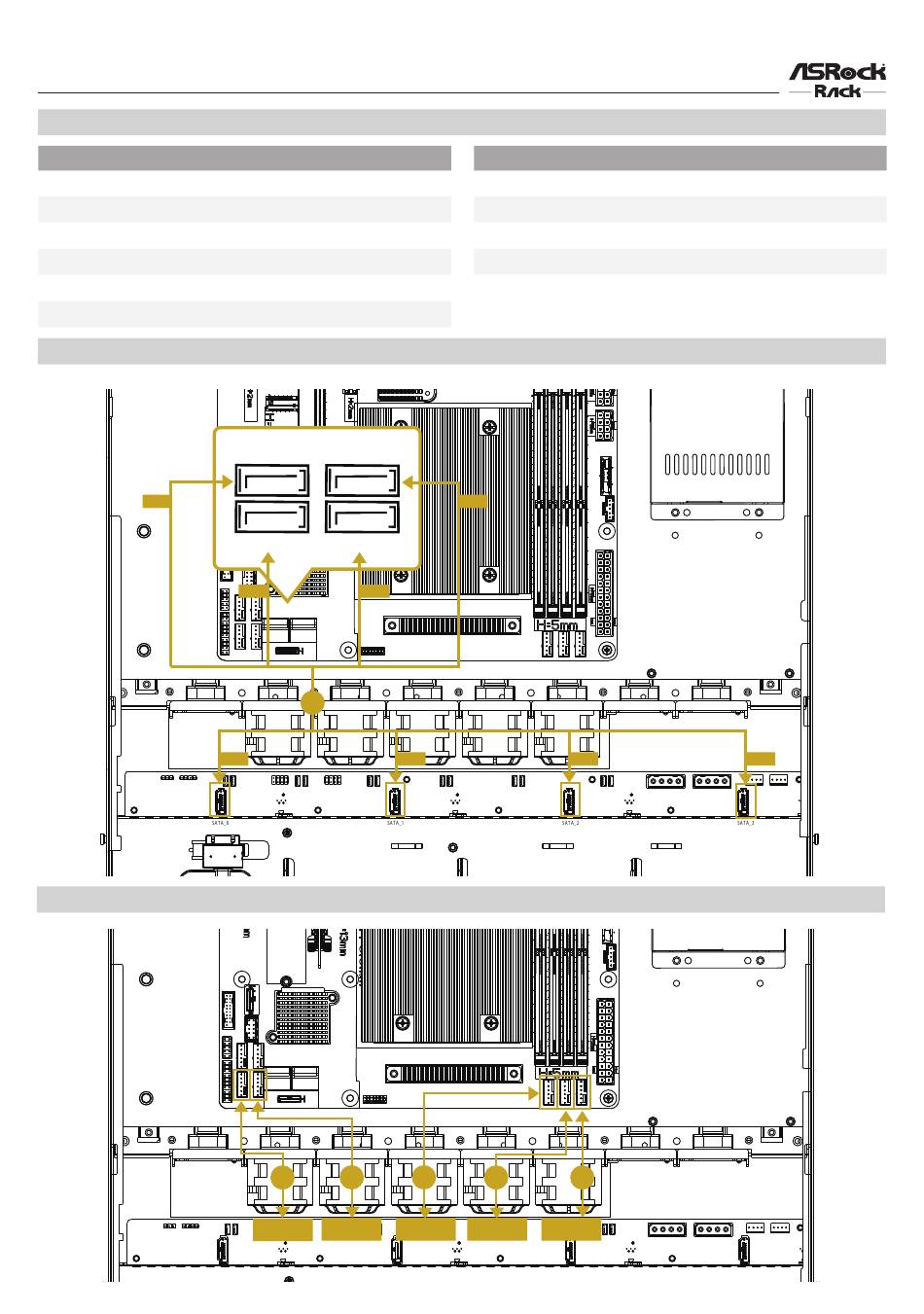

SATA Cable Connections
*The illustrations in this Quick Installation Guide are for references only. The actual product may be slightly different by SKU.
P8
Fan Cable Connections
SATA_3 SATA_1
SATA_2 SATA_0
P7 P5
1
P1
2 3
FAN5 FAN4
No. Description
7 USB 3.0 Cable; L=500mm
8 Front Panel Cable (PH2.54 2*13P to 4*CONN); L=400mm
9 ATX 8PIN Cable from PSU
10 ATX 24P Power Cable from PSU
11 Molex 4P Power Cable from PSU
P6
P2 P3
4 5 6
FAN3 FAN2 FAN1
P4
2.5" HDD3
BPB
