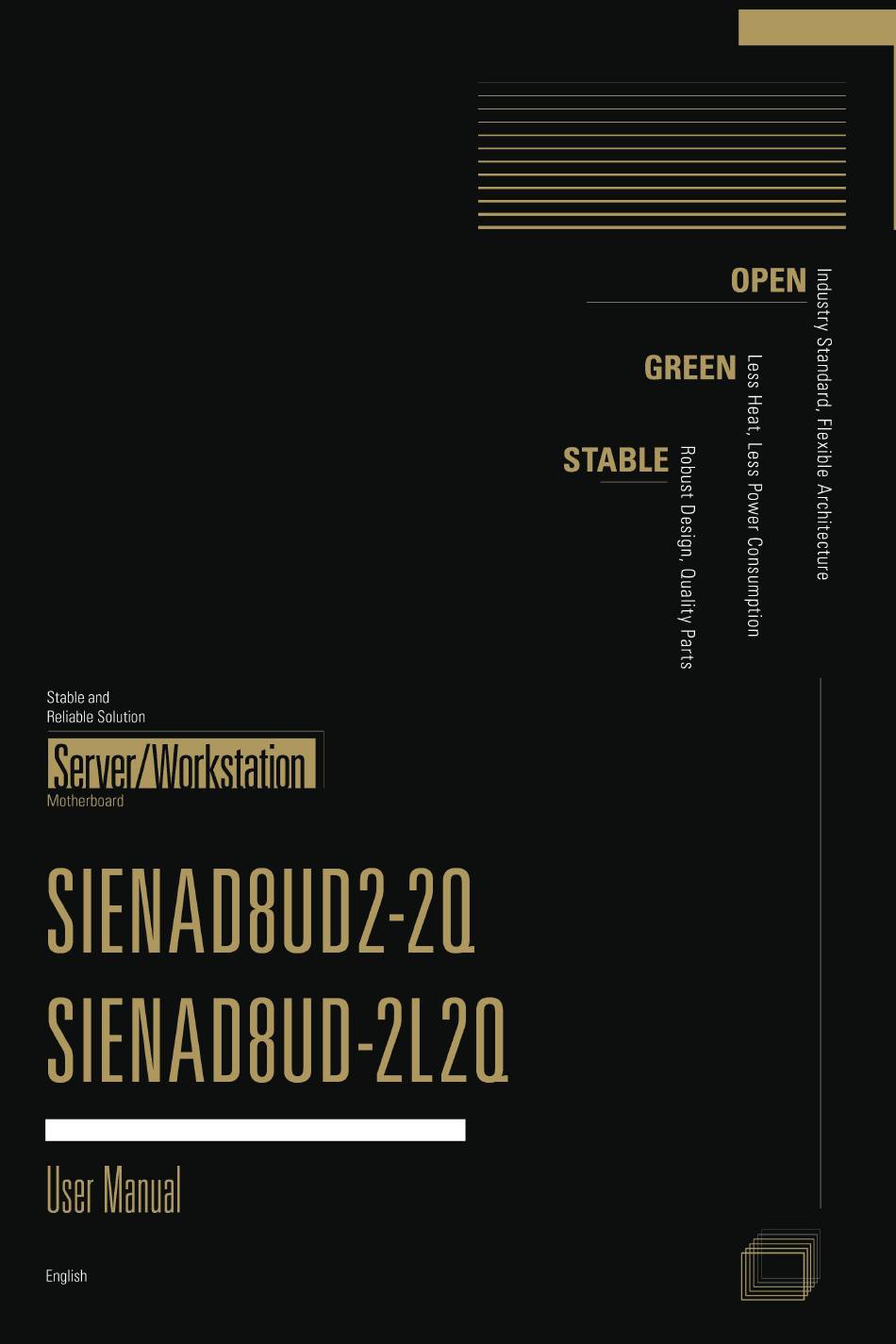

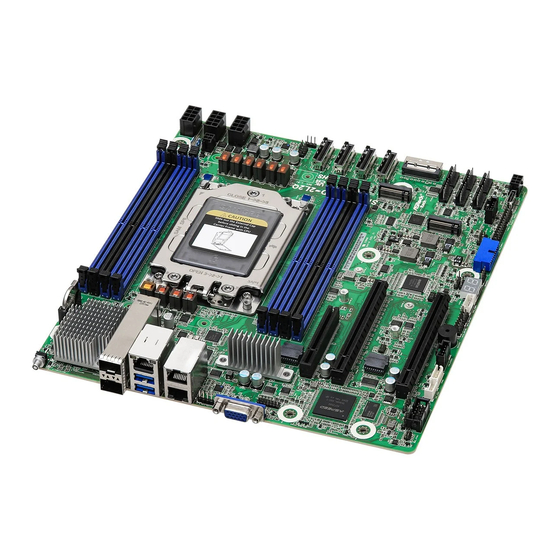

  • Page 1 SIENAD8UD2-2Q SIENAD8UD-2L2Q User Manual Version 1.0 Published December 2023 Copyright©2023 ASRock Rack INC. All rights reserved.

  • Page 2: Copyright Notice

    In no event shall ASRock Rack, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of...
  • Page 3 ASRock Rack follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASRock Rack product is in line with global environmental regulations. In addition, ASRock Rack disclose the relevant in- formation based on regulation requirements.

  • Page 4: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Specifications Unique Features Motherboard Layout Onboard LED Indicators I/O Panel Block Diagram Chapter 2 Installation Screw Holes Pre-installation Precautions Installing the CPU Installation of Memory Modules (DIMM) Expansion Slots (PCI Express Slots) Onboard Headers and Connectors Unit Identification purpose LED/Switch Dr.
  • Page 5 3.1.2 Navigation Keys Main Screen 3.2.1 Mother Board Information 3.2.2 Processor Information 3.2.3 Memory Information Advanced Screen 3.3.1 CPU Configuration 3.3.2 Chipset Configuration 3.3.3 Storage Configuration 3.3.4 NVMe Configuration 3.3.5 ACPI Configuration 3.3.6 USB Configuration 3.3.7 Super IO Configuration 3.3.8 Serial Port Console Redirection 3.3.9 H/W Monitor 3.3.10 PCI Subsystem Settings 3.3.11 AMD CBS...
  • Page 6 3.4.1 BMC Network Configuration 3.4.2 DNS Configuration 3.4.3 System Event Log 3.4.4 BMC Tools Event Logs Security 3.6.1 Key Management Boot Screen 3.7.1 CSM Parameters Exit Screen Chapter 4 Software Support Download and Install Operating System Download and Install Software Drivers Contact Information Chapter 5 Troubleshooting Troubleshooting Procedures...

  • Page 7: Chapter 1 Introduction

    In case any modifications of this manual occur, the updated version will be available on ASRock Rack website without further notice. Find the latest memory and CPU support lists on ASRock Rack website as well. ASRock Rack’s Website: www.ASRockRack.com About this motherboard technical support, please visit the website for specific information http://www.asrockrack.com/support/...

  • Page 8: Specifications

    1.2 Specifications SIENAD8UD2-2Q / SIENAD8UD-2L2Q MB Physical Status Form Factor Deep Micro-ATX Dimension 9.6” x 10.5’’(24.4cm x 26.7cm) Processor System Supports AMD EPYC™ 8004 series processors Socket 1 Socket SP6 (LGA4844) Thermal Design 70-225W Power (TDP) Chipset System on Chip...
  • Page 9 SIENAD8UD2-2Q SIENAD8UD-2L2Q Graphics Controller ASPEED AST2600 VRAM DDR4 512MB Rear I/O UID Button/ 1 UID button w/ LED VGA Port 1 DB15 (VGA) 2 Type-A (USB3.2 Gen1) RJ45 2 RJ45 (1GbE) ( , 1 dedicated IPMI for SIENAD8UD-2L2Q only) Other Network...
  • Page 10 System BIOS Type AMI UEFI BIOS; 256 Mb SPI Flash ROM Features ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP) Hardware Monitor Temperature CPU, MB, Card side, TR1 Temperature sensing...

  • Page 11: Unique Features

    . With this utility, press the <F6> key during the POST or the <F2> key to enter into the BIOS setup menu to access ASRock Rack Instant Flash. Just launch this tool and save the new BIOS file to the USB flash drive, floppy disk or hard drive, then update the BIOS only in a few clicks without preparing an additional floppy diskette or other complicated flash utility.

  • Page 12: Motherboard Layout

    1.4 Motherboard Layout 26.7 cm (10.5 in) DDR5_H2 BAT1 DDR5_H1 IPMI_LED1 ATX12V1 (for SIENAD8UD-2L2Q only) DDR5_F1 DDR5_E1 Broadcom BCM57414/57502 ATX12V2 ATX4PIN1 ATX12V3 SFP+1_2 CPU1 PWM_CFG1 REMOVE MCIO1 (for SIENAD8UD-2L2Q only) MCIO2 DDR5_A1 DDR5_B1 MCIO3 DDR5_D1 DDR5_D2 MCIO4 PCIE7 MCIO5 ® PCIE6 ASPEED AST2600...
  • Page 13 SIENAD8UD2-2Q SIENAD8UD-2L2Q Description IPMI LAN LED Header (IPMI_LED1) ( for SIENAD8UD-2L2Q only) 2 x 288-pin DDR5 DIMM Slots (DDR5_E1, DDR5_H1)* 2 x 288-pin DDR5 DIMM Slots (DDR5_F1, DDR5_H2)* Micro-Fit Power Connector (ATX4PIN1) ATX 12V Power Connector (ATX12V1) ATX 12V Power Connector (ATX12V2)
  • Page 14 Front LAN LED Connector (LED_LAN_3_4) ( for SIENAD8UD-2L2Q only) AMD Socket SP6 (LGA4844 ) (CPU1) IPMI LAN LED Header (IPMI_LED1) ( for SIENAD8UD2-2Q only) *For DIMM installation and configuration instructions, please see p.19 (Installation of Memory Modules (DIMM)) for more details.

  • Page 15: Onboard Led Indicators

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 1.5 Onboard LED Indicators The layout below is only for SIENAD8UD-2L2Q reference, all SIENAD8UD Series LED locations are the same.
  • Page 16 Item Status Description FAN_LED1 FAN1 failed FAN_LED4 FAN4 failed FAN_LED2 FAN2 failed FAN_LED5 FAN5 failed FAN_LED3 FAN3 failed FAN_LED6 FAN6 failed SB_PWR1 Green STB PWR ready BMC_LED1 Green BMC heartbeat LED...

  • Page 17: I/O Panel

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 1.6 I/O Panel No. Description No. Description UID Switch (UID1) LAN RJ-45 Port (IPMI_LAN)* 1G LAN RJ-45 Port 25G SFP28 (Fiber) (SFP1)*** (LAN1, shared NIC)** 25G SFP28 (Fiber) (SFP2)*** 1G LAN RJ-45 Port (LAN2)** USB 3.2 Gen1 Ports (USB3_1_2) VGA Port (VGA1) Note: LAN1 and LAN2 are for SIENAD8UD-2L2Q only.
  • Page 18 **There is an LED on each side of the 1G LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED SPEED LED LAN Port 1G LAN Port LED Indications (for SIENAD8UD-2L2Q only) Activity / Link LED Speed LED Status Description...

  • Page 19: Block Diagram

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 1.7 Block Diagram...

  • Page 20: Chapter 2 Installation

    Chapter 2 Installation This is a Deep Micro-ATX form factor (9.6’’ x10.5", 24.4cm x 26.7cm) motherboard. Before installing the motherboard, study the configuration of the chassis to ensure that the motherboard fits into it. Make sure to unplug the power cord before installing or removing the motherboard. Failure to do so may cause physical injuries and motherboard damages.

  • Page 21: Pre-Installation Precautions

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 2.2 Pre-installation Precautions Take note of the following precautions before installing motherboard components or change any motherboard settings. 1. Unplug the power cord from the wall socket before touching any components. 2. To avoid damaging the motherboard’s components due to static electricity, NEVER place the motherboard directly on the carpet or the like.

  • Page 22: Installing The Cpu

    2.3 Installing the CPU 1. Before inserting the CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found.
  • Page 23 SIENAD8UD2-2Q SIENAD8UD-2L2Q...
  • Page 24 Carr ier Frame with CPU Rail Frame Please make sure that the carrier frame with CPU is closely attached to the rail frame while inserting it. Install the carrier frame with CPU. Don’t separate them.
  • Page 25 SIENAD8UD2-2Q SIENAD8UD-2L2Q...

  • Page 26: Installation Of Memory Modules (Dimm)

    2.4 Installation of Memory Modules (DIMM) This motherboard provides eight 288-pin DDR5 (Double Data Rate 5) DIMM slots in two groups, and supports Single/Dual Channel Memory Technology. DIMM Count Channel Count DIMM Channel CPU1 The Symbol V indicates the slot is populated. FRONT_LED_LAN34 DDR5_H2 BAT1...
  • Page 27 SIENAD8UD2-2Q SIENAD8UD-2L2Q...

  • Page 28: Expansion Slots (Pci Express Slots)

    2.5 Expansion Slots (PCI Express Slots) There are 3 PCI Express slots on this motherboard. PCIE slots: PCIE4 (PCIE 5.0 x16 slot, from CPU) is used for PCI Express x16 lane width cards. PCIE6 (PCIE 5.0 x16 slot, from CPU) is used for PCI Express x16 lane width cards. PCIE7 (PCIE 5.0 x8 slot, from CPU) is used for PCI Express x8 lane width cards.

  • Page 29: Onboard Headers And Connectors

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. System Panel Header...
  • Page 30 Auxiliary Panel Header This header supports multiple (18-pin AUX PANEL1) functions on the front panel, (see p.6, No. 29) i nclud i ng t he f ront pa nel SMB, internet status indicator and chassis intrusion pin. A. Front panel SMBus connecting pin (6-1 pin FPSMB) This header allows user to connect SMBus (System Management Bus) equipment.
  • Page 31 SIENAD8UD2-2Q SIENAD8UD-2L2Q USB 3.2 Gen1 Header Besides two default USB 3.2 (19-pin USB3_3_4) Gen1 ports on the I/O panel, (see p.6, No. 30) there is one USB 3.2 Gen1 header on this motherboard. This USB 3.2 Gen1 header can support two USB 3.2 Gen1 ports.
  • Page 32 PWM Configuration This header is used for PWM Header configurations. (3-pin PWM_CFG1) (see p.6, No. 8) ATX 12V Power This motherboard provides Connectors three 8-pin ATX 12V power (8-pin ATX12V1) connectors. (see p.6, No. 5) (8-pin ATX12V2) (see p.6, No. 6) (8-pin ATX12V3) (see p.6, No.
  • Page 33 SIENAD8UD2-2Q SIENAD8UD-2L2Q System Fan Connectors Please connect fan cables to (6-pin FAN1) the fan connectors and match (see p.6, No. 19) the black wire to the ground FAN_VOLTAGE (6-pin FAN2) pin. All fans support Fan FAN_SPEED_SENSOR1 (see p.6, No. 21) Control.
  • Page 34 LILEDP LINK_LEDN (see p.6, No. 1) chassis. LINK_LEDP for SIENAD8UD-2L2Q only) (see p.6, No. 48) for SIENAD8UD2-2Q only) Front LAN LED Header This 4-pin connector is used LAN4_LED- (4-pin LED_LAN_3_4) for the front LAN status LAN4_LED+ (see p.6, No. 46) indicator.
  • Page 35 SIENAD8UD2-2Q SIENAD8UD-2L2Q MCIO1 Pin Definition Defeinition Pin Defeinition G3_RXP7 G3_TXP7 G3_RXN7 G3_TXN7 G3_RXP6 G3_TXP6 G3_RXN6 G3_TXN6 BP_TYPE WAKE# RST0_L PRSNT_N G3_RXP5 G3_TXP5 G3_RXN5 G3_TXN5 G3_RXP4 G3_TXP4 G3_RXN4 G3_TXN4 G3_RXP3 G3_TXP3 G3_RXN3 G3_TXN3 G3_RXP2 G3_TXP2 G3_RXN2 G3_TXN2 BP_TYPE WAKE# RST0_L PRSNT_N...
  • Page 36 MCIO2 Pin Definition Defeinition Pin Defeinition G3_RXP15 G3_TXP15 G3_RXN15 G3_TXN15 G3_RXP14 G3_TXP14 G3_RXN14 G3_TXN14 BP_TYPE WAKE# RST0_L PRSNT_N G3_RXP13 G3_TXP13 G3_RXN13 G3_TXN13 G3_RXP12 G3_TXP12 G3_RXN12 G3_TXN12 G3_RXP11 G3_TXP11 G3_RXN11 G3_TXN11 G3_RXP10 G3_TXP10 G3_RXN10 G3_TXN10 BP_TYPE WAKE# RST0_L PRSNT_N G3_RXP9 G3_TXP9 G3_RXN9 G3_TXN9 G3_RXP8...
  • Page 37 SIENAD8UD2-2Q SIENAD8UD-2L2Q MCIO3 Pin Definition Defeinition Pin Defeinition G2_RXP7 G2_TXP7 G2_RXN7 G2_TXN7 G2_RXP6 G2_TXP6 G2_RXN6 G2_TXN6 BP_TYPE WAKE# RST0_L PRSNT_N G2_RXP5 G2_TXP5 G2_RXN5 G2_TXN5 G2_RXP4 G2_TXP4 G2_RXN4 G2_TXN4 G2_RXP3 G2_TXP3 G2_RXN3 G2_TXN3 G2_RXP2 G3_TXP2 G2_RXN2 G3_TXN2 BP_TYPE WAKE# RST0_L PRSNT_N...
  • Page 38 MCIO4 Pin Definition Defeinition Pin Defeinition G2_RXP15 G2_TXP15 G2_RXN15 G2_TXN15 G2_RXP14 G2_TXP14 G2_RXN14 G2_TXN14 BP_TYPE WAKE# RST0_L PRSNT_N G2_RXP13 G2_TXP13 G2_RXN13 G2_TXN13 G2_RXP12 G2_TXP12 G2_RXN12 G2_TXN12 G2_RXP11 G2_TXP11 G2_RXN11 G2_TXN11 G2_RXP10 G2_TXP10 G2_RXN10 G2_TXN10 BP_TYPE WAKE# RST0_L PRSNT_N G2_RXP9 G2_TXP9 G2_RXN9 G2_TXN9 G2_RXP8...
  • Page 39 SIENAD8UD2-2Q SIENAD8UD-2L2Q MCIO5 Pin Definition Defeinition Pin Defeinition G0_RXP0 G0_TXP0 G0_RXN0 G0_TXN0 G0_RXP1 G0_TXP1 G0_RXN1 G0_TXN1 BP_TYPE WAKE# RST0_L PRSNT_N G0_RXP2 G0_TXP2 G0_RXN2 G0_TXN2 G0_RXP3 G0_TXP3 G0_RXN3 G0_TXN3 G0_RXP4 G0_TXP4 G0_RXN4 G0_TXN4 G0_RXP5 G0_TXP5 G0_RXN5 G0_TXN5 BP_TYPE WAKE# RST0_L PRSNT_N...

  • Page 40: Unit Identification Purpose Led/Switch

    2.7 Unit Identification purpose LED/Switch The UID button allows user to locate the server working on from behind a rack of servers. Unit Identification When the UID button on the purpose LED/Switch front or rear panel is pressed, (UID1) the front/rear UID blue LED indicator will be truned on.

  • Page 41: Dr. Debug

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 2.8 Dr. Debug Dr. Debug is used to provide code information, which makes troubleshooting even easier. Please see the diagrams below for reading the Dr. Debug codes. Code Description 0x10 PEI_CORE_STARTED 0x11 PEI_CAR_CPU_INIT 0x15 PEI_CAR_NB_INIT 0x19 PEI_CAR_SB_INIT 0x31...
  • Page 42 0x63 DXE_CPU_INIT 0x68 DXE_NB_HB_INIT 0x69 DXE_NB_INIT 0x6A DXE_NB_SMM_INIT 0x70 DXE_SB_INIT 0x71 DXE_SB_SMM_INIT 0x72 DXE_SB_DEVICES_INIT 0x78 DXE_ACPI_INIT 0x79 DXE_CSM_INIT 0x90 DXE_BDS_STARTED 0x91 DXE_BDS_CONNECT_DRIVERS 0x92 DXE_PCI_BUS_BEGIN 0x93 DXE_PCI_BUS_HPC_INIT 0x94 DXE_PCI_BUS_ENUM 0x95 DXE_PCI_BUS_REQUEST_RESOURCES 0x96 DXE_PCI_BUS_ASSIGN_RESOURCES 0x97 DXE_CON_OUT_CONNECT 0x98 DXE_CON_IN_CONNECT...
  • Page 43 SIENAD8UD2-2Q SIENAD8UD-2L2Q 0x99 DXE_SIO_INIT 0x9A DXE_USB_BEGIN 0x9B DXE_USB_RESET 0x9C DXE_USB_DETECT 0x9D DXE_USB_ENABLE 0xA0 DXE_IDE_BEGIN 0xA1 DXE_IDE_RESET 0xA2 DXE_IDE_DETECT 0xA3 DXE_IDE_ENABLE 0xA4 DXE_SCSI_BEGIN 0xA5 DXE_SCSI_RESET 0xA6 DXE_SCSI_DETECT 0xA7 DXE_SCSI_ENABLE 0xA8 DXE_SETUP_VERIFYING_PASSWORD 0xA9 DXE_SETUP_START 0xAB DXE_SETUP_INPUT_WAIT 0xAD DXE_READY_TO_BOOT 0xAE DXE_LEGACY_BOOT...
  • Page 44 0xAF DXE_EXIT_BOOT_SERVICES 0xB0 RT_SET_VIRTUAL_ADDRESS_MAP_BEGIN 0xB1 RT_SET_VIRTUAL_ADDRESS_MAP_END 0xB2 DXE_LEGACY_OPROM_INIT 0xB3 DXE_RESET_SYSTEM 0xB4 DXE_USB_HOTPLUG 0xB5 DXE_PCI_BUS_HOTPLUG 0xB6 DXE_NVRAM_CLEANUP 0xB7 DXE_CONFIGURATION_RESET 0xF0 PEI_RECOVERY_AUTO 0xF1 PEI_RECOVERY_USER 0xF2 PEI_RECOVERY_STARTED 0xF3 PEI_RECOVERY_CAPSULE_FOUND 0xF4 PEI_RECOVERY_CAPSULE_LOADED 0xE0 PEI_S3_STARTED 0xE1 PEI_S3_BOOT_SCRIPT 0xE2 PEI_S3_VIDEO_REPOST...
  • Page 45 SIENAD8UD2-2Q SIENAD8UD-2L2Q 0xE3 PEI_S3_OS_WAKE 0x50 PEI_MEMORY_INVALID_TYPE 0x53 PEI_MEMORY_NOT_DETECTED 0x55 PEI_MEMORY_NOT_INSTALLED 0x57 PEI_CPU_MISMATCH 0x58 PEI_CPU_SELF_TEST_FAILED 0x59 PEI_CPU_NO_MICROCODE 0x5A PEI_CPU_ERROR 0x5B PEI_RESET_NOT_AVAILABLE 0xD0 DXE_CPU_ERROR 0xD1 DXE_NB_ERROR 0xD2 DXE_SB_ERROR 0xD3 DXE_ARCH_PROTOCOL_NOT_AVAILABLE 0xD4 DXE_PCI_BUS_OUT_OF_RESOURCES 0xD5 DXE_LEGACY_OPROM_NO_SPACE 0xD6 DXE_NO_CON_OUT 0xD7 DXE_NO_CON_IN...
  • Page 46 0xD8 DXE_INVALID_PASSWORD 0xD9 DXE_BOOT_OPTION_LOAD_ERROR 0xDA DXE_BOOT_OPTION_FAILED 0xDB DXE_FLASH_UPDATE_FAILED 0xDC DXE_RESET_NOT_AVAILABLE 0xE8 PEI_MEMORY_S3_RESUME_FAILED 0xE9 PEI_S3_RESUME_PPI_NOT_FOUND 0xEA PEI_S3_BOOT_SCRIPT_ERROR 0xEB PEI_S3_OS_WAKE_ERROR...

  • Page 47: Atx Psu / Dc-In Power Connections

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 2.9 ATX PSU / DC-IN Power Connections This motherboard supports both +12V DC and ATX power input. Please refer to the table below for the required connections between the motherboard and the power supply. Connector DC-IN ATX PSU...

  • Page 48: Dual Lan And Teaming Operation Guide

    2.10 Dual LAN and Teaming Operation Guide Dual LAN with Teaming enabled on this motherboard allows two single connections to act as one single connection(s) for twice the transmission bandwidth, making data transmission more effective and improving the quality of transmission of distant images. Fault tolerance on the dual LAN network prevents network downtime by transferring the workload from a failed port to a working port.

  • Page 49: M.2_Ssd Module Installation Guide

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 2.11 M.2_SSD Module Installation Guide The M.2 Socket (M2_1/M2_2, Key M) supports type 2280/22110 M.2 SATA 6.0 Gb/s module or M.2 PCI Express module up to Gen5 x4 (32GT/s x4). Installing the M.2_SSD Module Step 1 Prepare a M.2 SSD module and the screw.
  • Page 50 Step 3 Move the standoff based on the module type and length. Skip Step 3 and 4 and go straight to Step 5 if using the default nut. Otherwise, release the standoff by hand. Step 4 Peel off the yellow protective film on the nut to be used.

  • Page 51: Chapter 3 Uefi Setup Utility

    SIENAD8UD2-2Q SIENAD8UD-2L2Q Chapter 3 UEFI Setup Utility 3.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure the system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. Run the UEFI SETUP UTILITY when starting up the computer. Please press <F2> or <Del> during the Power- On-Self-Test (POST) to enter the UEFI SETUP UTILITY;...

  • Page 52: Navigation Keys

    3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items <Tab>...

  • Page 53: Main Screen

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 3.2 Main Screen Once entering the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. The Main screen provides system overview information and allows user- to set the system time and date. The screenshots in this user manual are examples and for references only. The actual im-...

  • Page 54: Mother Board Information

    3.2.1 Mother Board Information Press <Enter> to view the information of the motheboard. 3.2.2 Processor Information Press <Enter> to view the information of the processor.

  • Page 55: Memory Information

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 3.2.3 Memory Information Press <Enter> to view the information of the memory.

  • Page 56: Advanced Screen

    3.3 Advanced Screen In this section, set the configurations for the following items: CPU Configuration, Chipset Configuration, Storage Configuration, NVMe Configuration, ACPI Configuration, USB Configuration, Super IO Configuration, Serial Port Console Redirection, H/W Monitor, PCI Subsystem Settings, AMD CBS, AMD PBS, PSP Firmware Versions, Network Stack- Configuration, Driver Health, Tls Auth Configuration and Instant Flash.

  • Page 57: Cpu Configuration

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 3.3.1 CPU Configuration SVM Mode Enable or disable CPU Virtualization.

  • Page 58: Chipset Configuration

    3.3.2 Chipset Configuration Onboard VGA Use this to enable or disable the Onboard VGA function. Onboard LAN (BCM57414) / (BCM57502) for SIENAD8UD-2L2Q only) for SIENAD8UD2- 2Q only) Use this item to enable or disable the Boot From Onboard LAN feature. Onboard LAN (I210 LAN1) for SIENAD8UD-2L2Q only) Use this item to enable or disable the Boot From Onboard LAN feature.
  • Page 59 SIENAD8UD2-2Q SIENAD8UD-2L2Q MCIO1/MCIO2 Mode Selection Select SATA or PCIE work in MCIO port. PCIE Link Width This displays the PCIE Link Width. PCIE4/PCIE6/PCIE7, MCIO1/MCIO2/MCIO3/MCIO4/MCIO5 Link Width The default values for PCIE4/PCIE6 are [x16], PCIE7 is [x8], MCIO1/MCIO2/MCIO3/ MCIO4/MCIO5 are [x4x4].

  • Page 60: Storage Configuration

    3.3.3 Storage Configuration Hard Disk S.M.A.R.T. S.M.A.R.T stands for Self-Monitoring, Analysis, and Reporting Technology. It is a monitoring system for computer hard disk drives to detect and report on various indicators of reliability. SATA Hot Plug Use this item to enable or disable the SATA Hot Plug Function.

  • Page 61: Nvme Configuration

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 3.3.4 NVMe Configuration The NVMe Configuration displays the NVMe Drive Options Settings. Launch NVMe driver Select this item to enable or disable launch NVMe driver.

  • Page 62: Acpi Configuration

    3.3.5 ACPI Configuration PCIE Devices Power On Allow the system to be waked up by a PCIE device and enable wake on LAN. Ring-In Power On Allow the system to be waked up by onboard COM port modem Ring-In Singals. RTC Alarm Power On Allow the system to be waked up by real time clock alarm.

  • Page 63: Usb Configuration

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 3.3.6 USB Configuration This displays the USB Module Version, Controllers and USB Devices information.

  • Page 64: Super Io Configuration

    3.3.7 Super IO Configuration Serial Port 1 Configuration Use this item to set parameters of Serial Port 1 (COMA). Serial Port Use this item to enable or disable the Serial Port (COM). Change Settings Use this item to select an optimal setting for Super IO device. SOL Configuration Use this item to set parameters of Serial Port 2 (COMB).

  • Page 65: Serial Port Console Redirection

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 3.3.8 Serial Port Console Redirection COM1 / SOL Console Redirection Use this option to enable or disable Console Redirection. If this item is set to Enabled, user can select a COM Port to be used for Console Redirection.

  • Page 66: Flow Control

    Bits Per Second Use this item to select the serial port transmission speed. The speed used in the host computer and the client computer must be the same. Long or noisy lines may require lower transmission speed. The options include [9600], [19200], [38400], [57600] and [115200]. Data Bits Use this item to set the data transmission size.
  • Page 67 SIENAD8UD2-2Q SIENAD8UD-2L2Q Out-of-Band Mgmt Port Microsof t Windows Emergency Management Services (EMS) allows for remote management of a Windows Server OS through a serial port. Terminal Type EMS Use this item to select the preferred terminal emulation type for out-of-band management.

  • Page 68: H/W Monitor

    3.3.9 H/W Monitor In this section, it allows user to monitor the status of the hardware on the system, includ- ing the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage.

  • Page 69: Pci Subsystem Settings

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 3.3.10 PCI Subsystem Settings Re-Size BAR Support If the system has Resizable BAR capable PCIe Devices, this option enalbes or disables the Resizable BAR Support. SR-IOV Support If the system has SR-IOV capable PCIe Devices, this option enalbes or disables the Single...

  • Page 70: Amd Cbs

    3.3.11 AMD CBS CPU Common Options Use this item to configure CPU Common options. DF Common Options Use this item to configure DF Common options. UMC Common Options Use this item to configure UMC Common options. NBIO Common Options Use this item to configure NBIO Common options. FCH Common Options Use this item to configure FCH Common options.

  • Page 71: Amd Pbs

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 3.3.12 AMD PBS Use this item to configure AMD CPM RAS related settings. RAS Periodic SMI Control Use this to enable or disable Periodic SMI for polling [MCA Threshold] error. SMI Threshold This limits the number of [MCA Threshold and Deferred Error SMI source] per a unit time.
  • Page 72 PCIe UnCorr GHES Notify Type This specifies the notification type for PCIe uncorrected errors. PCIe Root Port Corr Err Mask Reg Use this to initialize the PCIe AER Corrected Error Mask register of root port. PCIe Root Port UnCorr Err Mask Reg Use this to initialize the PCIe AER Uncorrected Error Mask register of root port.

  • Page 73: Psp Firmware Versions

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 3.3.13 PSP Firmware Versions The PSP Firmware Verions displays the version information of ABL, PSP BootLoader, SMU FW, SEV FW, PHY FW, MPIO FW, TF MPDMA FW, PM MPDMA FW, GMI FW, RIB FW, SEC FW, PMU FW, EMCR FW and uCode A2.

  • Page 74: Network Stack Configuration

    3.3.14 Network Stack Configuration Network Stack Use this to enable or disable UEFI Network Stack. IPv4 PXE Support Use this to enable or disable IPv4 PXE boot support. If disabled, IPv4 PXE boot support will not be available. IPv4 HTTP Support Use this to enable or disable IPv4 HTTP boot support.
  • Page 75 SIENAD8UD2-2Q SIENAD8UD-2L2Q Media detect count Number of times the presence of media will be checked. Use either +/- or numeric keys to set the value.

  • Page 76: Driver Health

    3.3.15 Driver Health Inter (R) PRO/1000 6.5.01 PCI-E Healthy for SIENAD8UD-2L2Q only) Provides Health Status for the Drivers/Controllers Broadcom NXE Gigabit Ethernet Driver Healthy Provides Health Status for the Drivers/Controllers.

  • Page 77: Tls Auth Configuration

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 3.3.16 Tls Auth Configuration Server CA Configuration Press <Enter> to configure Server CA. Client Cert Configuration Enroll Cert Press <Enter> to enroll cert. Delete Cert Press <Enter> to delete cert.

  • Page 78: Instant Flash

    3.3.17 Instant Flash Instant Flash is a UEFI flash utility embedded in Flash ROM. This convenient UEFI up- datetool allows user to update system UEFI without entering operating systems first like MSDOS or Windows®. Just save the new UEFI file to the USB flash drive, floppy disk or hard drive and launch this tool, then update the UEFI only in a few clicks without prepar- ing an additional floppy diskette or other complicated flash utility.

  • Page 79: Server Mgmt

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 3.4 Server Mgmt Wait For BMC Wait For BMC response for specified time out. BMC starts at the same time when BIOS starts during AC power ON. It takes around 255 seconds to initialize Host to BMC interfaces.
  • Page 80 OS Wtd Timer Policy Configure how the system should respond if the OS Boot Watchdog Timer expires. If the OS Boot Watchdog Timer is disabled, this item is not available. BMC Network Configuration Use this to configure BMC network parameters. DNS Configuration Use this to configure DNS parameters.

  • Page 81: Bmc Network Configuration

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 3.4.1 BMC Network Configuration Bonding Setting Select this item to enabled or disabled bonding. Please enable all lan channel first when want to enable bonding. Manual Setting IPMI LAN If [No] is selected, the IP address is assigned by DHCP. If using a static IP address, toggle to [Yes], and the changes take effect after the system reboots.

  • Page 82: Ipv6 Support

    The default login information for the IPMI web interface is: Username: admin Password: admin For more instructions on how to set up remote control environment and use the IPMI man- agement platform, please refer to the IPMI Configuration User Guide or go to the Support website at: http://www.asrockrack.com/support/faq.asp VLAN Enable or disable Virtual Local Area Network.

  • Page 83: Dns Configuration

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 3.4.2 DNS Configuration Manual DNS Configuration Select this item to manual configure DNS. If [YES] is selected, configure the items below. DNS Service Select this item to enable or disable DNS Service Configuration. Host Name Settings Select this item to automatic or manual Host Name Settings.

  • Page 84: Domain Name Server Setting

    Domain Name Server Setting Select this item to configure DNS Server Settings. IP Priority Select this item to configure IP Priority.

  • Page 85: System Event Log

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 3.4.3 System Event Log SEL Components Change this to enable or disable event logging for error/progress codes during boot. Erase SEL Use this to choose options for earsing SEL. When SEL is Full Use this to choose options for reactions to a full SEL.

  • Page 86: Bmc Tools

    3.4.4 BMC Tools KCS Control Select this KCS interface state after POST end. If [Enabled] us selected, the BMC will remain KCS interface after POST stage. If [Disabled] is selected, the BMC will disable KCS interface after POST stage Restore AC Power Loss This allows user to set the power state after an unexpected AC/power loss.

  • Page 87: Event Logs

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 3.5 Event Logs Change Smbios Event Log Settings Use this item to configure the Smbios Event Log Settings. When entering the item, the screen displays following sub-items: Smbios Event Log Use this item to enable or disable all features of the SMBIOS Event Logging during system boot.

  • Page 88: Security

    3.6 Security This section allows user to set or change the supervisor/user password for the system. For the user password item is allowed user to clear it. Supervisor Password Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility.

  • Page 89: Key Management

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 3.6.1 Key Management In this section, expert users can modify Secure Boot Policy variables without full authenti- cation. Factory Key Provision Install factory default Secure Boot keys after the platform reset and while the System is in Setup mode.
  • Page 90 Platform Key (PK) Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHAXXX 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256) Key Source: Factory, Modified, Mixed Key Exchange Keys (KEK) Enroll Factory Defaults or load certificates from a file: 1.
  • Page 91 SIENAD8UD2-2Q SIENAD8UD-2L2Q 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256) Key Source: Factory, Modified, Mixed Forbidden Signatures (dbx) Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHAXXX 2.
  • Page 92 b) EFI_CERT_X509 (DER) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHAXXX 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256) Key Source: Factory, Modified, Mixed...

  • Page 93: Boot Screen

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 3.7 Boot Screen In this section, it will display the available devices on the system for user to configure the boot settings and the boot priority. Boot Option #1/#2/#3/#4/#5/#6 Use this to set the system boot order. UEFI USB Drive BBS Priorities Specifies the Boot Device Priority sequence from available UEFI USB Drives.
  • Page 94 Full Screen Logo Enable to display the boot logo or disable to show normal POST message.

  • Page 95: Csm Parameters

    SIENAD8UD2-2Q SIENAD8UD-2L2Q 3.7.1 CSM Parameters CSM (Compatibility Support Module) CSM Support Select this item to enable or disable the Compatibility Support Module. Please do not disable unless running a WHCK test. For faster boot speed, it may also disable CSM. To enabled CSM, please install an external graphics card which supports legacy mode.

  • Page 96: Exit Screen

    3.8 Exit Screen Save Changes and Exit When selecting this option, the following message “Save configuration changes and exit setup?” will pop-out. Press <F10> key or select [Yes] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When selecting this option, the following message “Discard changes and exit setup?”...

  • Page 97: Chapter 4 Software Support

    4.3 Contact Information Contact ASRock Rack or want to know more about ASRock Rack, welcome to visit ASRock Rack’s website at http://www.ASRockRack.com; or contact the dealer for further information.

  • Page 98: Chapter 5 Troubleshooting

    Chapter 5 Troubleshooting 5.1 Troubleshooting Procedures Follow the procedures below to troubleshoot the system. Always unplug the power cord before adding, removing or changing any hardware components. Failure to do so may cause physical injuries and damages to motherboard components. 1.
  • Page 99 1. Verify if the battery on the motherboard provides ~3VDC. Install a new battery if it does not. 2. Confirm whether the power supply provides adaquate and stable power. Other problems... 1. Try searching keywords related to the related problem on ASRock Rack’s FAQ page: http://www.asrockrack.com/support...

  • Page 100: Technical Support Procedures

    5.2 Technical Support Procedures If the problems are still unsolved, please contact ASRock Rack’s technical support with the following information: 1. Contact information 2. Model name, BIOS version and problem type. 3. System configuration. 4. Problem description. Contact ASRock Rack’s technical support at: http://www.asrockrack.com/support/tsd.asp...
  • Page 101 SIENAD8UD-2L2Q Contact Information If it needs to contact ASRock Rack or want to know more about ASRock Rack, you’re welcome to visit ASRock Rack’s website at http://www.asrockrack.com; or contact the dealer for further information. For technical questions, please submit a support request form at https://event.asrockrack.com/tsd.asp...
