Key switches
Key switches
without protection against dismounting
Ref.-no.: 104.15, 106.15, 133.15, 134.15
with protection against dismounting
Ref.-no.: 104.28, 106.28, 133.18,
134.18, 138.18, 134.28
with protection against dismounting, IP44
Ref.-no.: CD 104.18 WU, CD 106.18 WU,
CD 133.18 WU, CD 134.18 WU
Operating instructions
1 Safety instructions
Electrical devices may only be installed and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow the instructions in full.
These instructions are an integral part of the product, and must remain with the end customer.

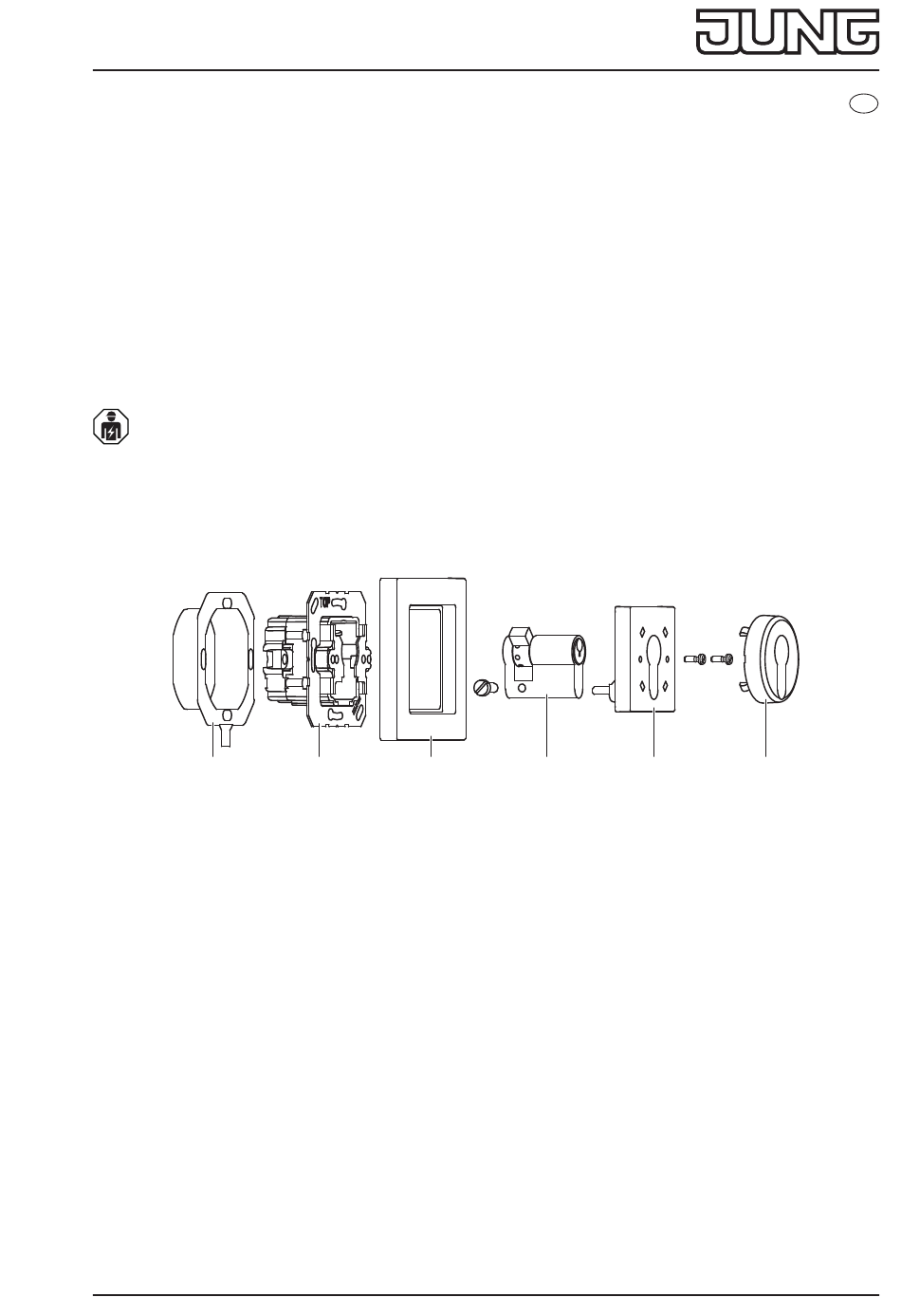

2 Device components
1
(1) Sealing gasket (see accessories)
(2) Insert
(3) Frame
(4) Profile half cylinder
(5) Centre plate
3 Function
Intended use
- for profile half cylinder with approx. 40 mm overall length (DIN 18252), e.g. art. no.: 28, 28 G1
- not suitable for installation in surface caps
0024096301
2
3
Abb. 1: Geräteaufbau
1 / 5
4
5
GB
5
20.11.2024
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jung 104.15
Summary of Contents for Jung 104.15
- Page 1 Key switches Key switches without protection against dismounting Ref.-no.: 104.15, 106.15, 133.15, 134.15 with protection against dismounting Ref.-no.: 104.28, 106.28, 133.18, 134.18, 138.18, 134.28 with protection against dismounting, IP44 Ref.-no.: CD 104.18 WU, CD 106.18 WU, CD 133.18 WU, CD 134.18 WU...
- Page 2 Key switches Designs Blind reversing switch, 1-pole (1 motor) 104.15, CD 104.18 WU Blind reversing push-button, 1-pole (1 motor) 134.15, 134.18, CD 134.18 WU Blind reversing switch, 2-pole (2 motors) 104.28 Blind reversing push-button, 2-pole (2 motors) 134.28 Push-button (2-way), 1-pole 133.15, 133.18, CD 133.18 WU...
-
Page 3: Operation
Key switches Installing the profile half cylinder See figure 1 • Fasten the locking cylinder (4) to the centre plate (5) using the included screw. i If other locking cylinders are used, these may only have an opening for keys on one side. Otherwise IP44 is not possible. -
Page 4: Connection Diagrams
Key switches 6 Connection diagrams 104.15, CD 104.18 WU 134.15, 134.18, CD 134.18 WU 104.28, 134.28 Fig. 5 and 6: Connection diagrams 133.15, 133.18, CD 133.18 WU 138.18 Fig. 7 and 8: Connection diagrams 106.15, CD 106.18 WU 106.28 Fig. 9 and 10: Connection diagrams... -
Page 5: Technical Data
Key switches 7 Technical data Rated voltage AC 250 V ~ Rated current 104.xx, CD 104.18 WU 10 AX 133.1x, 134.1x, 134.28, 138.18, CD 13x.18 WU 10 A 106.15, 106.28, CD 106.18 WU 16 AX Connection screw terminals rigid and flexible wires up to 2.5 mm²...
