Jung 1701 SE Operating Instructions

LB management

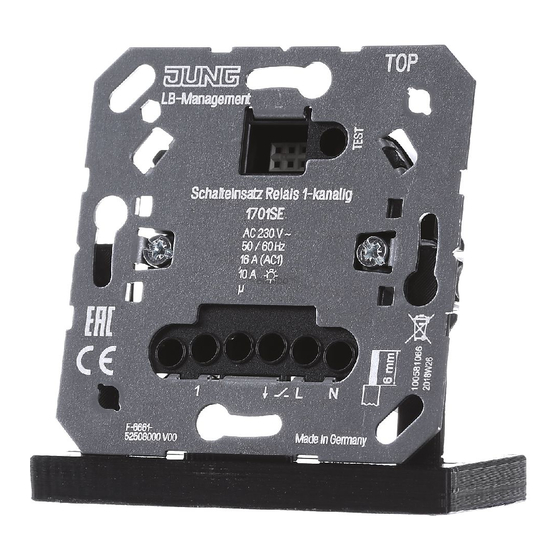

Relay switch insert 1-channel
Relay switch insert 1-channel
Art. no.: 1701 SE
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the device or load. In
so doing, take all the circuit breakers into account, which support dangerous voltages to the
device and or load.
These instructions are an integral part of the product, and must remain with the end customer.
2 Intended use
– Switching of lighting and motors
– Operation with suitable cover from LB management
– Controlling of electric underfloor heating systems and electrothermal valve drives in com-
bination with a room temperature controller cover
– Mounting in appliance box according to DIN 49073
Product characteristics
– Connection of extensions possible
– Run-on times adjustable
3 Operation
These instructions describe operation with a button cover. Operation with a different cover is de-
scribed in the instructions for the cover in question. The operation on the main device and the 2-
wire extension is identical.
Switch load
￭ Press the button.
The load switches on or off.
4 Information for electrically skilled persons
DANGER!
Mortal danger of electric shock.
Disconnect the device. Cover up live parts.
82597433
J0082597433
1 / 4
20.05.2020
