MWC25M-L2M-B20 series

Commissioning

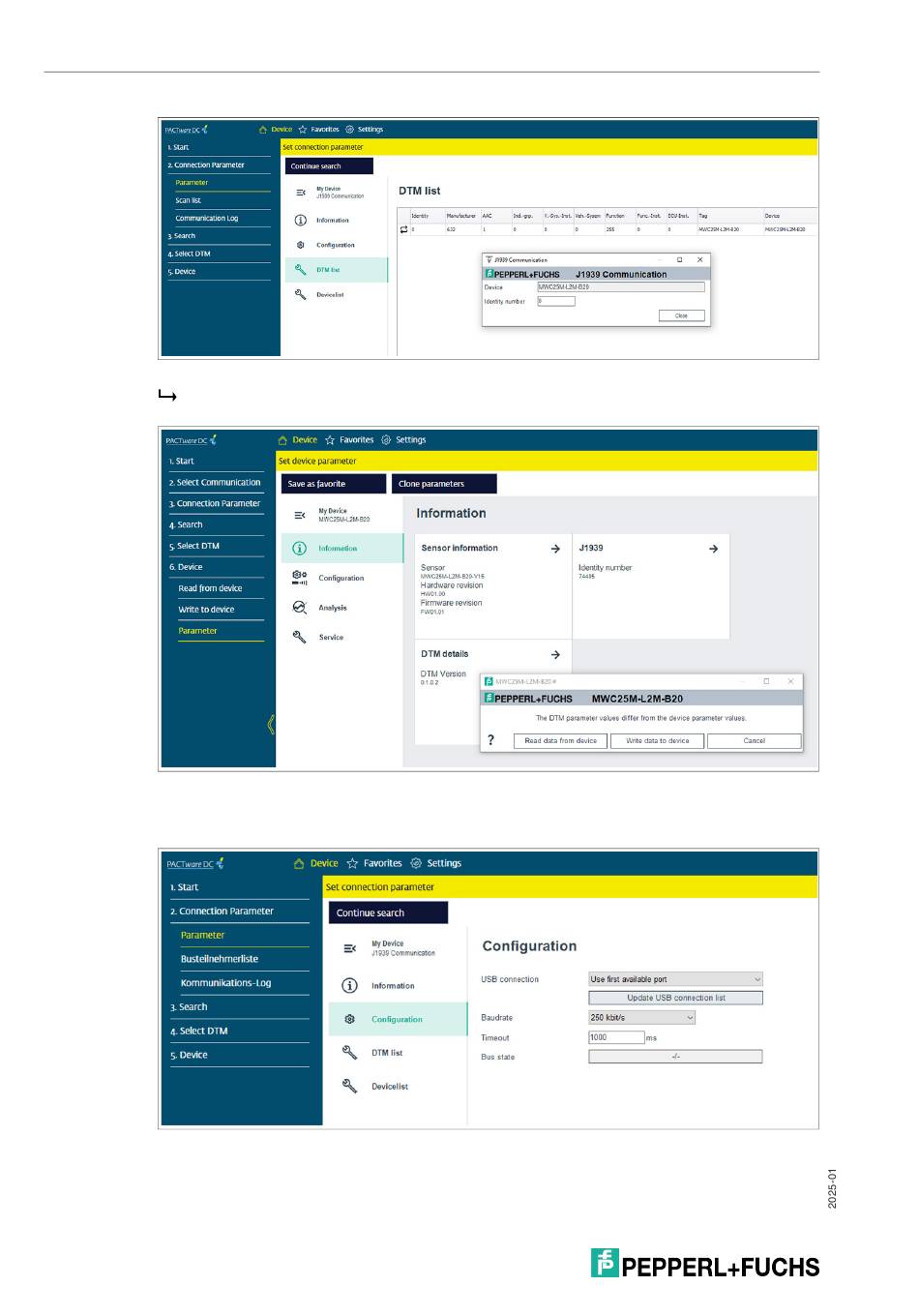

Figure 6.4

PACTwareDC establishes a connection to the sensor, allowing you to then access the sen-

sor.

Figure 6.5

To set the baud rate, select the "Connection Parameter" menu item and then the

"Configuration" display. Check the setting or set the baud rate to 250 kbit/s or 500 kbit/s.

Figure 6.6
