Connection

Note
Use a shielded 5-wire sensor connection cable to connect the sensor to a J1939 bus. Pay
attention to the pin assignment as the standard pin assignment (A-coded M12 plug) differs
from the pin assignment in the J1939 specification.

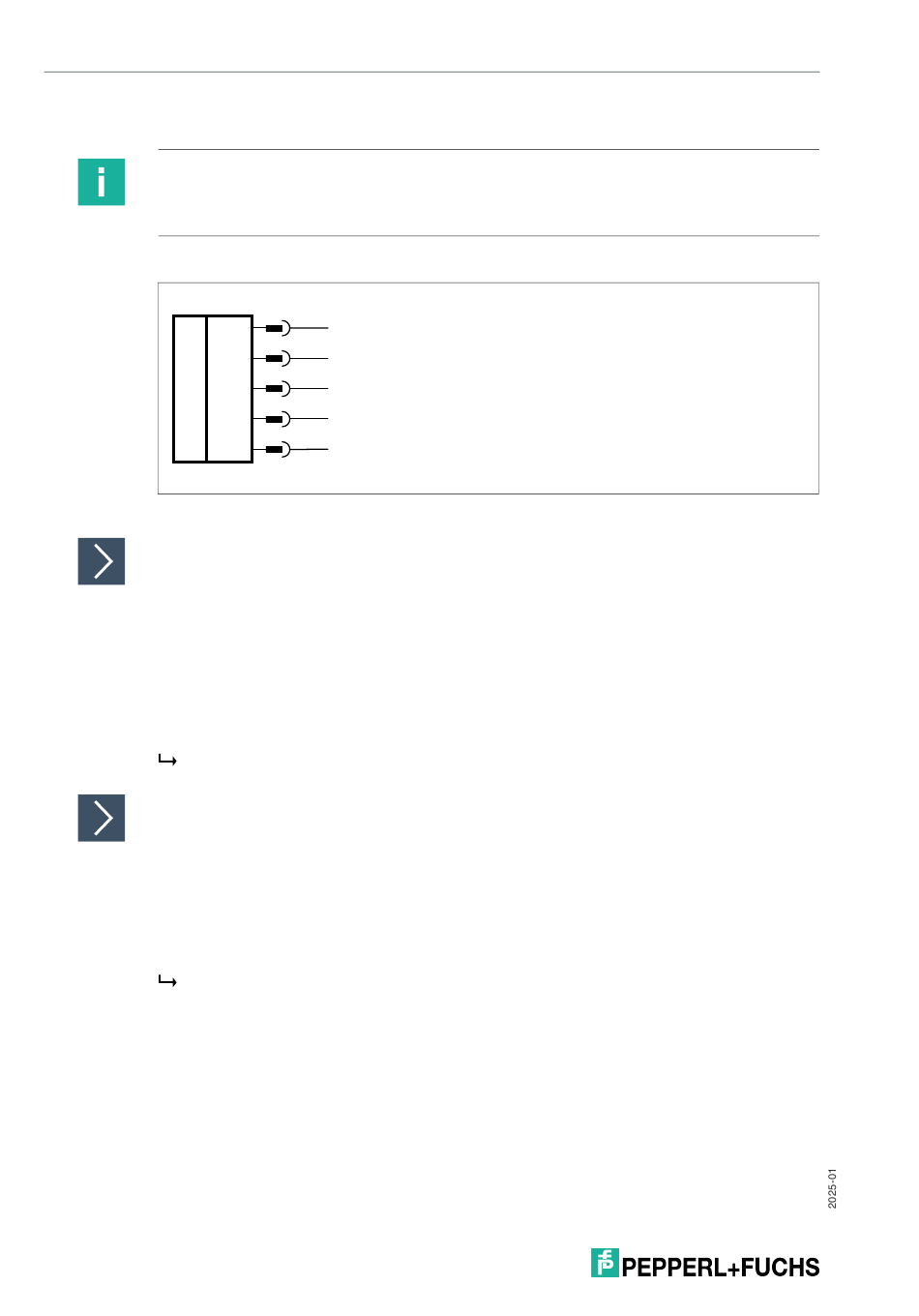

Wiring Diagram

Figure 4.1
Applying Supply Voltage for a Sensor with V15 Connector Plug
To supply voltage to the sensor, proceed as follows:
1.
Insert the prepared connection cable into the connector plug provided for this purpose on the
sensor.
2.
Screw the union nut onto the connector plug as far as it will go. This ensures that the power
cable cannot be pulled out inadvertently.
3.
Connect the supply voltage to the cables provided for this purpose and switch it on.
The sensor is now ready for operation.
Applying Supply Voltage to a Sensor with a Fixed Cable and Plug
To supply voltage to the sensor, proceed as follows:
1.
Connect the prepared connection cable to the plug of the sensor connection cable.
2.
If present, secure the plug connection with the securing elements provided.
3.
Connect the supply voltage to the cables provided for this purpose and switch it on.
The sensor is now ready for operation.
20
1
CAN_SHLD
2
CAN_V+ (+U B)
3
CAN_GND (-U B)
4
CAN_H
5
CAN_L
