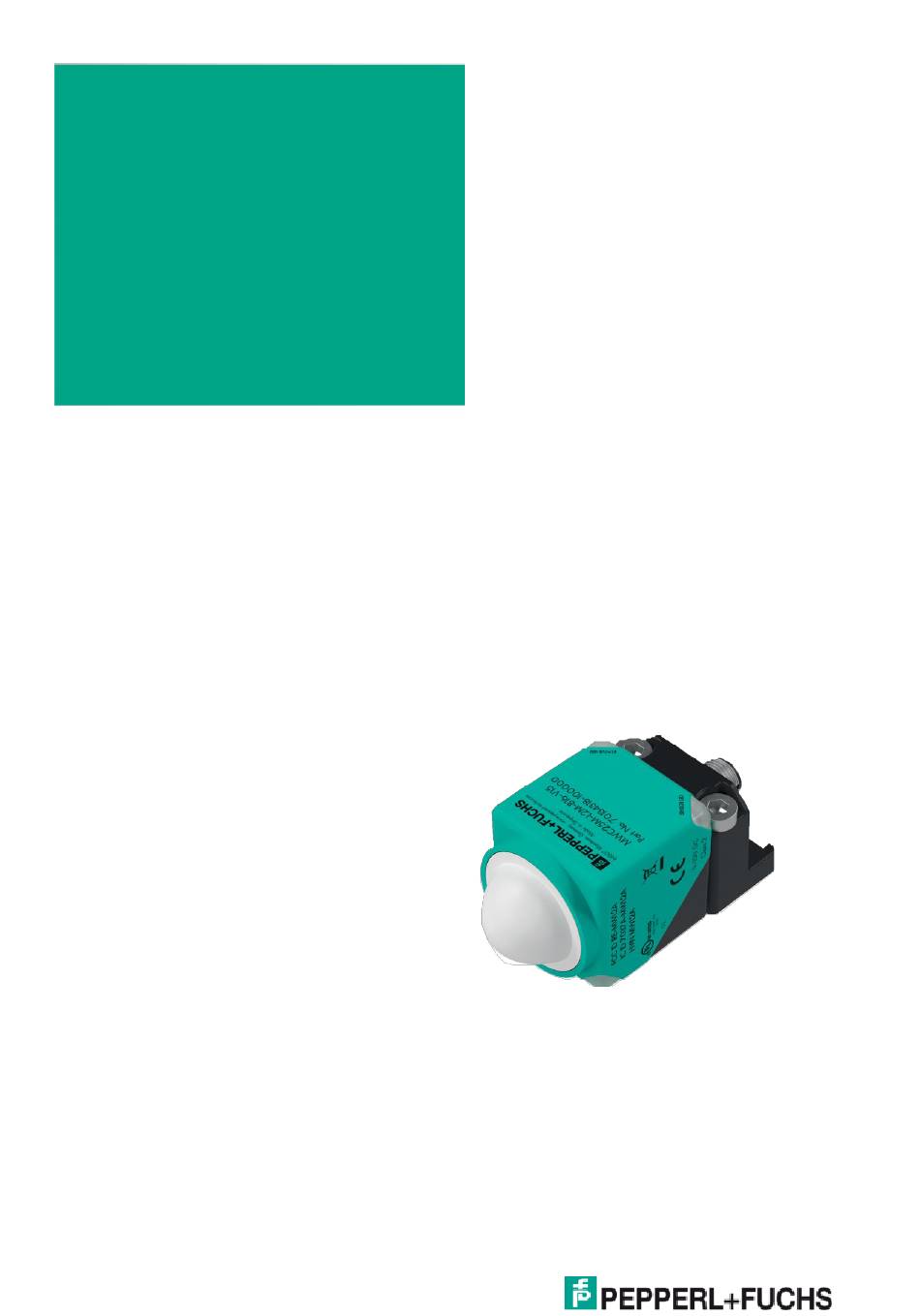

- Page 1 MWC25M-L2M-B20 series Commissioning instructions for the sensors via PACTwareDC Your automation, our passion.
-
Page 2: Table Of Contents
MWC25M-L2M-B20 series Inhalt Product Description ............................ 3 Use and Application ........................... 3 Parametrierung über PACTware DC und DTM ................. 4 Anzeigen ............................5 Parameterization Aids ........................6 Installation ..............................7 Safety Information ..........................7 Preparation ............................7 Connection ............................7 Mounting and Alignment ........................ -
Page 3: Product Description
1 Product Description 1.1 Use and Application The MWC25M-L2M-B20 series radar sensor with SAE J1939 interface for medium distances up to 25 m range is optimized for use in industrial applications. Its compact cubic L2 series housing is proven in many industrial areas due to its high robustness. -
Page 4: Parametrierung Über Pactware Dc Und Dtm
The latest available versions of the individual software components required, such as the "CAN Pa- rameterization Tool" and the device DTM, can be found online at www.pepperl-fuchs.com, on the product page for the MWC25M-L2M-B20 series. Preliminary Manual 11-2024 | DOCT-9530... -
Page 5: Anzeigen
MWC25M-L2M-B20 series 1.3 Anzeigen The radar sensor has multi-color LEDs, each with three colors, for displaying operating and status infor- mation. Two LEDs with the same meaning are arranged diagonally on the device to ensure better visibility in an ap- plication environment. -
Page 6: Parameterization Aids
• VCI driver for den CAN/USB converter-SUBD9 Visit www.pepperl-fuchs.com and access the product page for the relevant sensor in the MWC25M-L2M-B20 series DTM for MWC25-L2M-B20-Serie DTM (Device Type Manager) - device description and graphic user interface for radar sensor parameterization, integration into the sys- tem environment Visit www.pepperl-fuchs.com and access the product page for the... -
Page 7: Installation
Check the package contents against your order and the shipping documents to ensure that all items are present and correct. Should you have any questions, direct them to Pepperl+Fuchs. Retain the original packaging in case the device is to be stored or shipped again at a later date. -
Page 8: Mounting And Alignment
MWC25M-L2M-B20 series 2.4 Mounting and Alignment Mounting When mounting, observe the following points: • Mount the sensor so that no foreign objects are in the sensing range. • Note the dead band in which objects cannot be detected. If there are objects in the dead band, false reflections may occur. - Page 9 MWC25M-L2M-B20 series Curved reflecting object When using a curved surface (e.g., cylindrical objects) as the reflecting object, align the radar sensor with the center of the reflecting object. After hitting the reflecting object, in this scenario the main part of the radar signal is scattered in different directions.
-
Page 10: Commissioning
J1939 radar sensor. The various software components can be downloaded from www.pepperl- fuchs.com, on the respective MWC25M-L2M-B20 series product page. The soft- ware can be downloaded in compressed form as a ZIP file. After unzipping, we recommend installation using the appropriate MSI file. - Page 11 MWC25M-L2M-B20 series Note! Before establishing a connection between PACTwareDC and the sensor, check whether the CAN communication between the sensor and the work computer via CAN/USB converter SUBD9 is working. You can check this by seeing if the "USB" LED is lit green on the CAN/USB converter-SUBD9.
- Page 12 MWC25M-L2M-B20 series Selection of more than one device ➔ If there is only one device on the bus, the connection to the device is established automatically; if there are two or more devices on the bus, select the desired device by clicking on the double arrow.
-
Page 13: Parameterization And Analysis Using Pactware And Dtm Via J1939
MWC25M-L2M-B20 series 4 Parameterization and Analysis Using PACTware and DTM via J1939 4.1 Overview The parameters of the sensors are device-specific. In the DTM (Device Type Manager), these parameters are described in a well-structured way and partly supported with graphics. The DTM can be imported into various engineering tools from different system providers, DTM support provided. - Page 14 MWC25M-L2M-B20 series Basic DTM Operating Functions Below are a few basic operating functions for the DTM in the PACTware environment. Basic menu structure of the DTM. When a menu is selected, clickable tile icons for submenus are displayed on the right, or information or control buttons are displayed directly.
-
Page 15: Cybersecurity Information
MWC25M-L2M-B20 series 5 Cybersecurity Information The plant operator must implement the countermeasures defined in this section to ensure the cybersecure operation and protection of the device. Security Context The device is designed for use in an industrial CAN bus network, such as in applications in the field of Mobile Equipment. -
Page 16: Maintenance And Repair
MWC25M-L2M-B20 series 6 Maintenance and Repair 6.1 Maintenance Work The sensor itself is maintenance-free. For this reason, it is not necessary to carry out regular adjustments or maintenance work on the sensor itself. However, check that the sensor and connector are tight within the scope of routine maintenance intervals. -
Page 17: Troubleshooting
In case of a fault, use the following checklist to determine whether a malfunction with the sensor can be rem- edied. If none of the information provided in the checklist solves the problem, contact Pepperl+Fuchs via your sales office for any queries. If possible, have the model number and firmware version of the sensor to hand. - Page 18 MWC25M-L2M-B20 series Preliminary Manual 11-2024 | DOCT-9530...
