MWC25M-L2M-B20 series
Commissioning
Establish connection between sensor, CAN/USB converter, and PC
1.
Connect the sensor to input 1 of the T-distributor for the CAN/USB converter-SUBD9 using a 5-
pin connection cable.
2.
Connect the power supply to input 2 of the T-distributor for the CAN/USB converter-SUBD9
using the adapter cable (2.10 mm DC coupling to 4-pin M12 plug).
3.
Make sure that the terminator on the T-distributor is activated.
4.
Connect the T-distributor to the SUBD9 plug on the CAN/USB converter-SUBD9.
5.
Connect the USB cable of the CAN/USB converter-SUBD9 to a USB port on your work PC or
laptop.
6.
Connect the power supply of the CAN/USB converter-SUBD9 to the electric power supply.
Note
Before establishing a connection between PACTwareDC and the sensor, check whether the
CAN communication between the sensor and the work computer via CAN/USB converter-
SUBD9 is working. You can check this by seeing if the "USB" LED is lit green on the CAN/USB
converter-SUBD9.
If this is not the case, check:
whether the correct CAN-USB driver (VCI driver) is installed for the CAN/USB converter-
SUBD9.
whether the electric power supply for the CAN/USB converter-SUBD9 is switched on and
all cordsets are connected correctly.
whether the terminator integrated in the T-distributor is activated.
Establishing a Connection between PACTwareDC and the Sensor
1.
Start PACTware DC on your work computer.

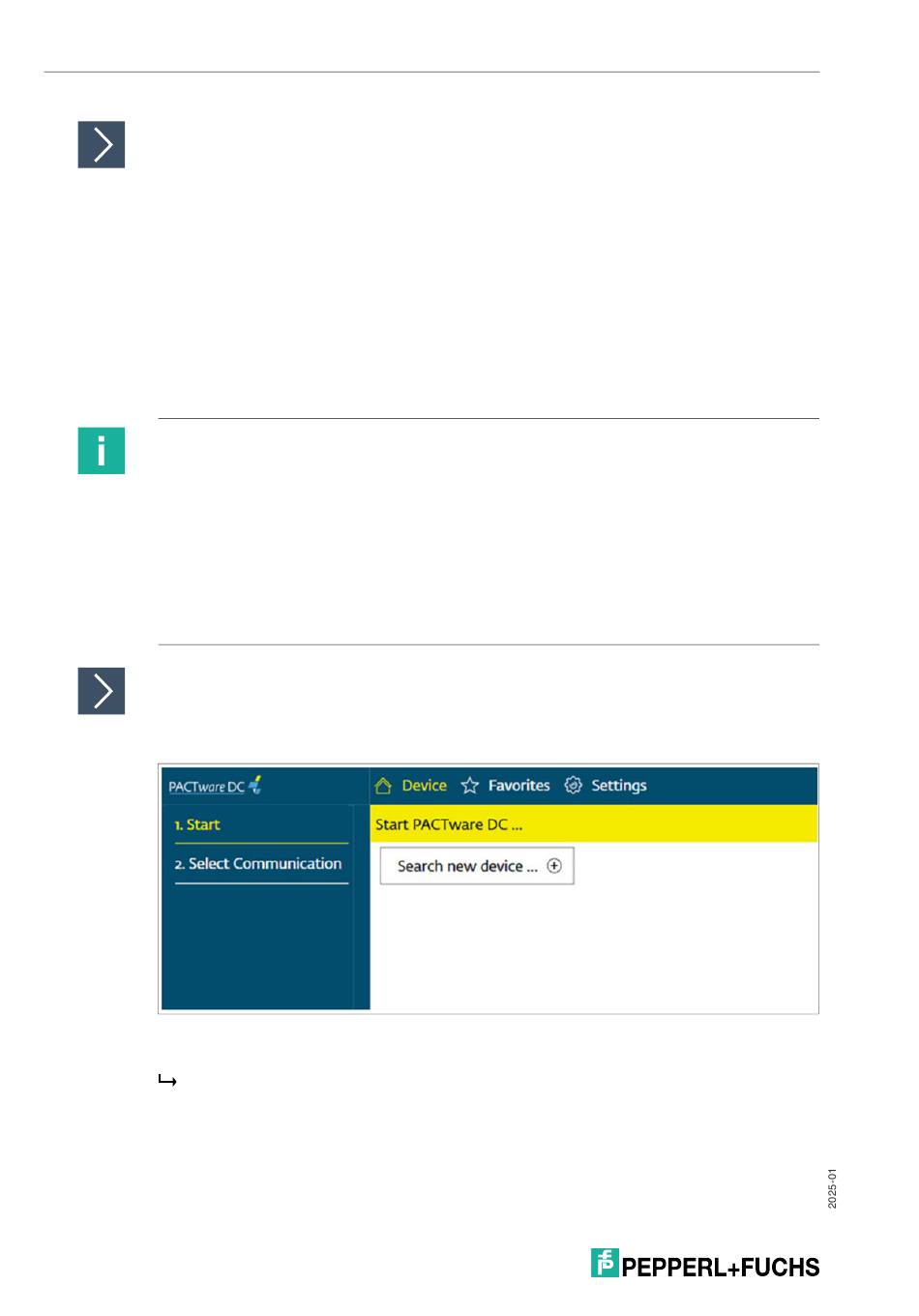

Figure 6.1
2.
First click on "Device," followed by "Search new device..."
PACTwareDC first retrieves the DTM for J1939 communication with the CAN/USB con-
verter-SUBD9.
24
