Elektrischer Anschluss
Option:
103
1
+UB
2
n.c.
3
0 V
4
Q
= Hellschaltung
= Dunkelschaltung
Technische Daten
Allgemeine Daten
Betriebsreichweite
0 ... 2,5 m
Reflektorabstand
0,05 ... 2,5 m
Grenzreichweite
2,5 m
Referenzobjekt
Reflektor H50
Lichtsender
LED
Lichtart
rot, Wechsellicht
Polarisationsfilter
ja
Lichtfleckdurchmesser
ca. 180 mm im Abstand von 2,5 m
Öffnungswinkel
ca. 4 °
Lichtaustritt
frontal
Fremdlichtgrenze
EN 60947-5-2:2007+A1:2012
Kenndaten funktionale Sicherheit
MTTF
860 a
d
Gebrauchsdauer (T
)
20 a
M
Diagnosedeckungsgrad (DC)
0 %
Anzeigen/Bedienelemente
Betriebsanzeige
LED grün: Netz ein (Power on) Teach-In : LEDs gelb/grün; gleichphasiges Blinken; 2,5 Hz Teach
Fehler: LEDs gelb/grün; gegenphasiges Blinken; 8,0 Hz
Funktionsanzeige
LED gelb: leuchtet bei Empfang des Sendestrahls aus bei Strahlunterbrechung
Bedienelemente
Teach-In Drehschalter
Bedienelemente
Hell-/Dunkelumschalter voreingestellt zu hellschaltend
Kontrasterkennungsstufen
18 % - Klarglasflaschen
40 % - Farbglas oder nichttransparente Materialien
einstellbar durch Teach-In-Schalter
Elektrische Daten
Betriebsspannung
U
10 ... 30 V DC
B
Welligkeit
max. 10 %
Leerlaufstrom
I
< 20 mA
0
Ausgang
Schaltungsart
Die Schaltungsart des Sensors ist umschaltbar. Der Auslieferungszustand ist: hellschaltend
Signalausgang
1 PNP-Ausgang, kurzschlussfest, verpolsicher, offener Kollektor
Schaltspannung
max. 30 V DC
Schaltstrom
max. 100 mA , ohmsche Last
≤ 1,5 V DC
Spannungsfall
U
d
Schaltfrequenz
f
1000 Hz
Ansprechzeit
0,5 ms
Umgebungsbedingungen
Umgebungstemperatur
-30 ... 60 °C (-22 ... 140 °F)
Lagertemperatur
-40 ... 70 °C (-40 ... 158 °F)
Mechanische Daten
Gehäusebreite
11 mm
Gehäusehöhe
31 mm
Gehäusetiefe
20 mm
Schutzart
IP67
Anschluss
Steckverbinder M8 x 1 , 4-polig
Material
Gehäuse
PC (Polycarbonat)
Lichtaustritt
PMMA
Masse
ca. 10 g
Anzugsmoment Befestigungsschrauben
0,6 Nm
Normen- und Richtlinienkonformität
Richtlinienkonformität
EMV-Richtlinie 2004/108/EG
EN 60947-5-2:2007+A1:2012
Normenkonformität
Normen
UL 60947-5-2
Zulassungen und Zertifikate
UL-Zulassung
cULus Listed, Class-2-Stromquelle oder UL-gelistetes Netzteil mit beschränktem Spannungsaus-
gang mit (evtl. integrierter) Sicherung (max. 3.3 A gemäß UL248), Typ-1-Gehäuse
Produkte, deren max. Betriebsspannung ≤36 V ist, sind nicht zulassungspflichtig und daher nicht
CCC-Zulassung
mit einer CCC-Kennzeichnung versehen.
Sicherheitshinweise:
•
Vor der Inbetriebnahme Betriebsanleitung lesen
•
Anschluss, Montage und Einstellung nur durch Fachpersonal
•
Kein Sicherheitsbauteil gemäß EU-Maschinenrichtlinie
Abmessungen
11
Empfänger
Sender
Electrical connection
Option:
103
+UB
1
2
n.c.
3
0 V
4
Q
2
4
1
3
20
3
10.6
M8 x 1
Adressen/Addresses
Pepperl+Fuchs Group
68301 Mannheim · Germany
Tel. +49 621 776-4411
Fax +49 621 776-27-4411
E-mail: fa-info@de.pepperl-fuchs.com
Worldwide Headquarters
Pepperl+Fuchs Group · Mannheim · Germany
E-mail: fa-info@de.pepperl-fuchs.com
USA Headquarters
Pepperl+Fuchs Inc. · Twinsburg · USA
E-mail: fa-info@us.pepperl-fuchs.com
= Light on
= Dark on
Asia Pacific Headquarters
Pepperl+Fuchs Pte Ltd · Singapore
E-mail: fa-info@sg.pepperl-fuchs.com
Company Registration No. 199003130E
www.pepperl-fuchs.com
Technical data
General specifications
Effective detection range
Reflector distance
Threshold detection range
Reference target
Light source
Light type
Polarization filter
Diameter of the light spot
Angle of divergence
Optical face
Ambient light limit
Functional safety related parameters
MTTF
d
Mission Time (T
)
M
Diagnostic Coverage (DC)
Indicators/operating means
Operation indicator
Function indicator
Control elements
Control elements
Contrast detection levels
Electrical specifications
Operating voltage
U
B
Ripple
No-load supply current
I
0
Output
Switching type
Signal output
Switching voltage
Switching current
Voltage drop
U
d
Switching frequency
f
Response time
Ambient conditions
Ambient temperature
Storage temperature
Mechanical specifications
Housing width
Housing height
Housing depth
Degree of protection
Connection
Material
Housing
Optical face
Mass
Tightening torque, fastening screws
Compliance with standards and directives
Directive conformity
EMC Directive 2004/108/EC
Standard conformity
Standards
Approvals and certificates
UL approval
CCC approval
Security Instructions:
•
Read the operating instructions before attempting commissioning
•
Installation, connection and adjustments should only be undertaken by specialist personnel
•
Not a safety component in accordance with the EU Machinery Directive
Dimensions
Receiver
Emitter
Reflexionslichtschranke für Glaserkennung
M8-Stecker, 4-polig
Retroreflective sensor for glass detection
M8 connector, 4-pin

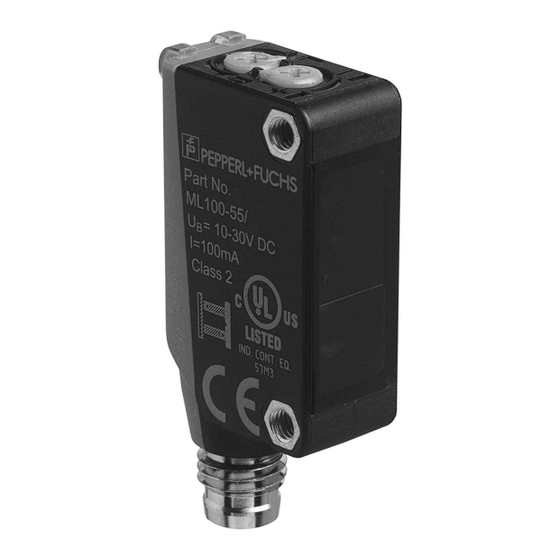

ML100-55-G/95/103
0 ... 2.5 m
0.05 ... 2.5 m
2.5 m
H50 reflector
LED
modulated visible red light
yes
approx. 180 mm at a distance of 2.5 m
approx. 4 °
frontal
EN 60947-5-2:2007+A1:2012
860 a
20 a
0 %
LED green: power on Teach-In : LED yellow/green; equiphase flashing; 2,5 Hz Teach Error:LED
green/yellow non equiphase flashing; 8.0 Hz
LED yellow: lights up when receiving the light beam OFF when light beam is interrupted
Teach-In rotary switch
Light-on/dark-on changeover switch preset to light on
18 % - clear glass bottles
40 % - colored glass or opaque materials
adjustable due to Teach-In switch
10 ... 30 V DC
max. 10 %
< 20 mA
The switching type of the sensor is adjustable. The default setting is: light on
1 PNP output, short-circuit protected, reverse polarity protected, open collector
max. 30 V DC
max. 100 mA , resistive load
≤ 1.5 V DC
1000 Hz
0.5 ms
-30 ... 60 °C (-22 ... 140 °F)
-40 ... 70 °C (-40 ... 158 °F)
11 mm
31 mm
20 mm
IP67
Connector M8 x 1 , 4-pin
PC (Polycarbonate)
PMMA
approx. 10 g
0.6 Nm
EN 60947-5-2:2007+A1:2012
UL 60947-5-2
cULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage output with
(maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure
CCC approval / marking not required for products rated ≤36 V
20
11
3
10.6
M8 x 1
