Installing the SMC6624M Switch
Getting Started With Switch Configuration

Using the Console Setup Screen

The quickest and easiest way to minimally configure the switch for manage-
ment and password protection in your network is to use a direct console
connection to the switch, start a console session, and access the Switch Setup
screen.
1.
2.
3.
4.
5.
6.
7.
2-18
Using the method described in the preceding section, connect a terminal
device to the switch and display the switch console command (CLI)
prompt (the default display).
The CLI prompt appears displaying the switch model number:
SMC TigerSwitch 10/100#
At the prompt, enter the setup command to display the Switch Setup

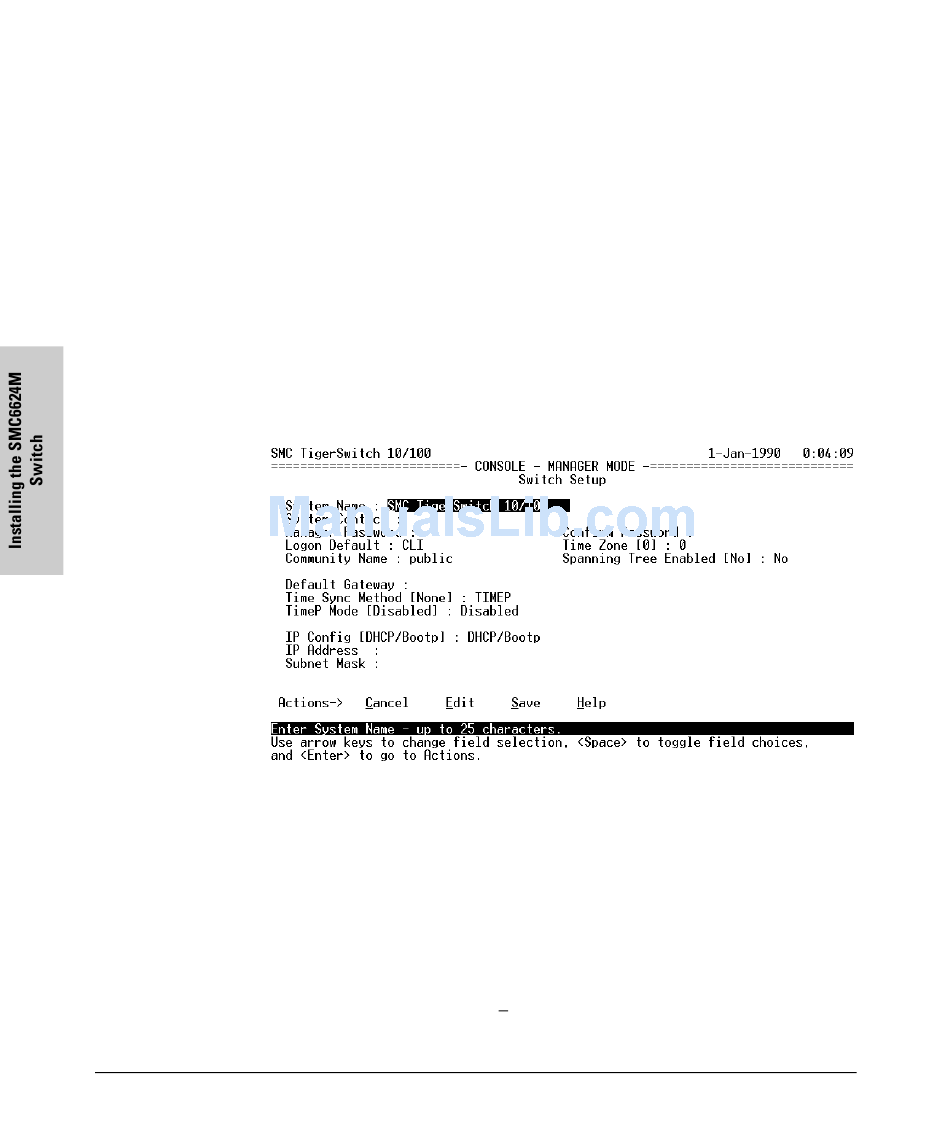

screen. The following illustration shows the Setup screen with the default
settings.
Use the Tab key to select the Manager Password field and enter a manager
password of up to 16 characters.
Tab to the IP Config (DHCP/Bootp) field and use the Space bar to select the
Manual option.
Tab to the IP Address field and enter the IP address that is compatible with
your network.
Tab to the Subnet Mask field and enter the subnet mask used for your
network.
Press Enter, then "S" (for Save).
