Installing the SMC6624M Switch
Installation Procedures

Connecting a Console

To connect a console to the
switch, follow these steps:
1.
2.
3.
If you want to continue with console management of the switch at this time,
see the next section, "Getting Started With Switch Configuration" for some
simple configuration steps, and refer to the Management Guide that came
with your switch for more detailed configuration information.
2-16
Connect the PC or
terminal to the switch's
Console Port using the
console cable included
with the switch. (If your
PC or terminal has a 25-pin
serial connector, first
attach a 9-pin to 25-pin
straight-through adapter
at one end of the console
cable.)
Turn on the terminal or
PC's power and, if using a
PC, start the PC terminal
program.
Press Enter two or three times and you will see the copyright page and
the message "Press any key to continue". Press a key, and you will then
see the switch console command (CLI) prompt, for example:
SMC TigerSwitch 10/100#

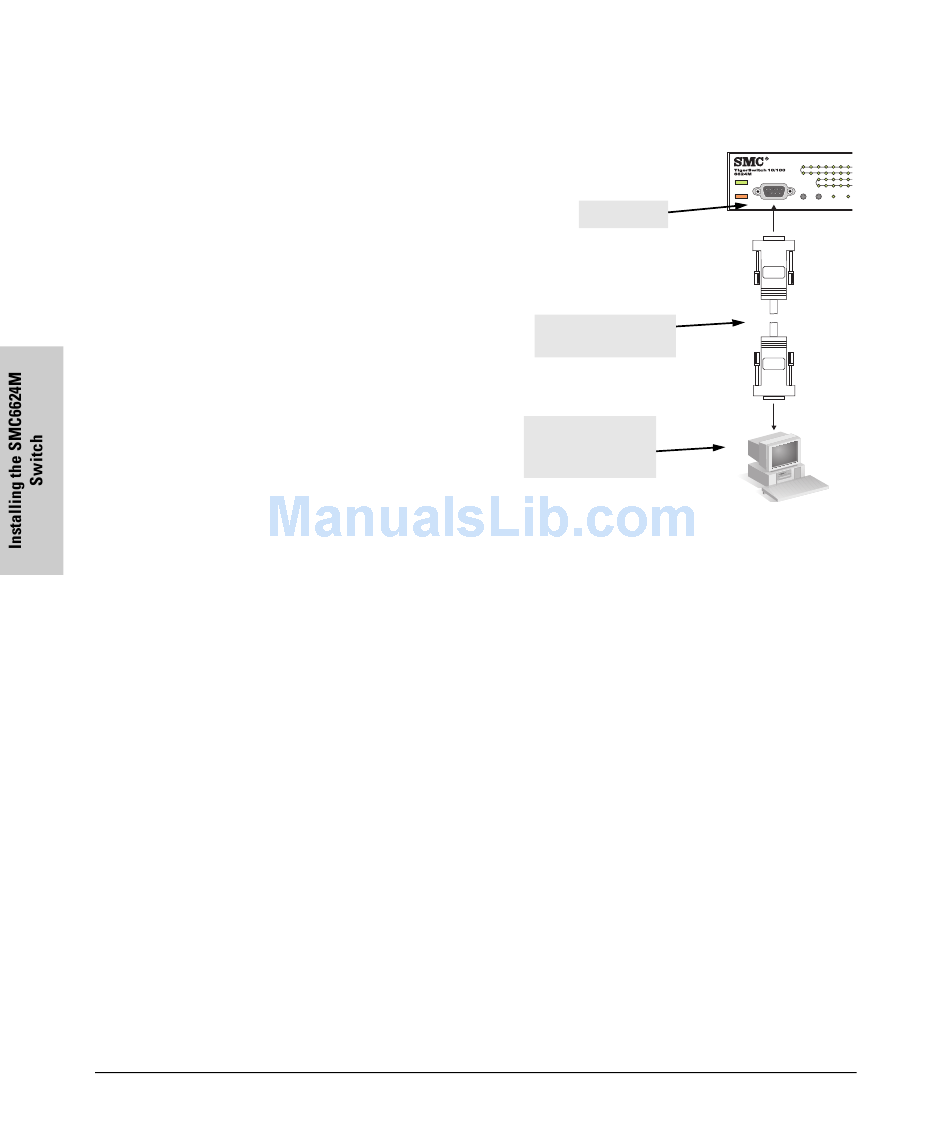

console port
console cable supplied
with the switch
PC running a terminal
emulator program, or
a VT-100 terminal
25 26 1 2 3 4 5
Console
Power
7 8 9 10 11
Fault
Self Fan
Reset Clear
Test Status
