Installing the SMC6624M Switch
Installation Procedures
N o t e
Steps 2, 3, and 4 below describe a convenient method of mounting the switch
in a rack by placing it on two screws that you first install in the rack. You may,
instead, just hold the switch with attached brackets up to the rack and move
it vertically until rack holes line up with the bracket notches, then insert and
tighten the four screws holding the brackets to the rack.

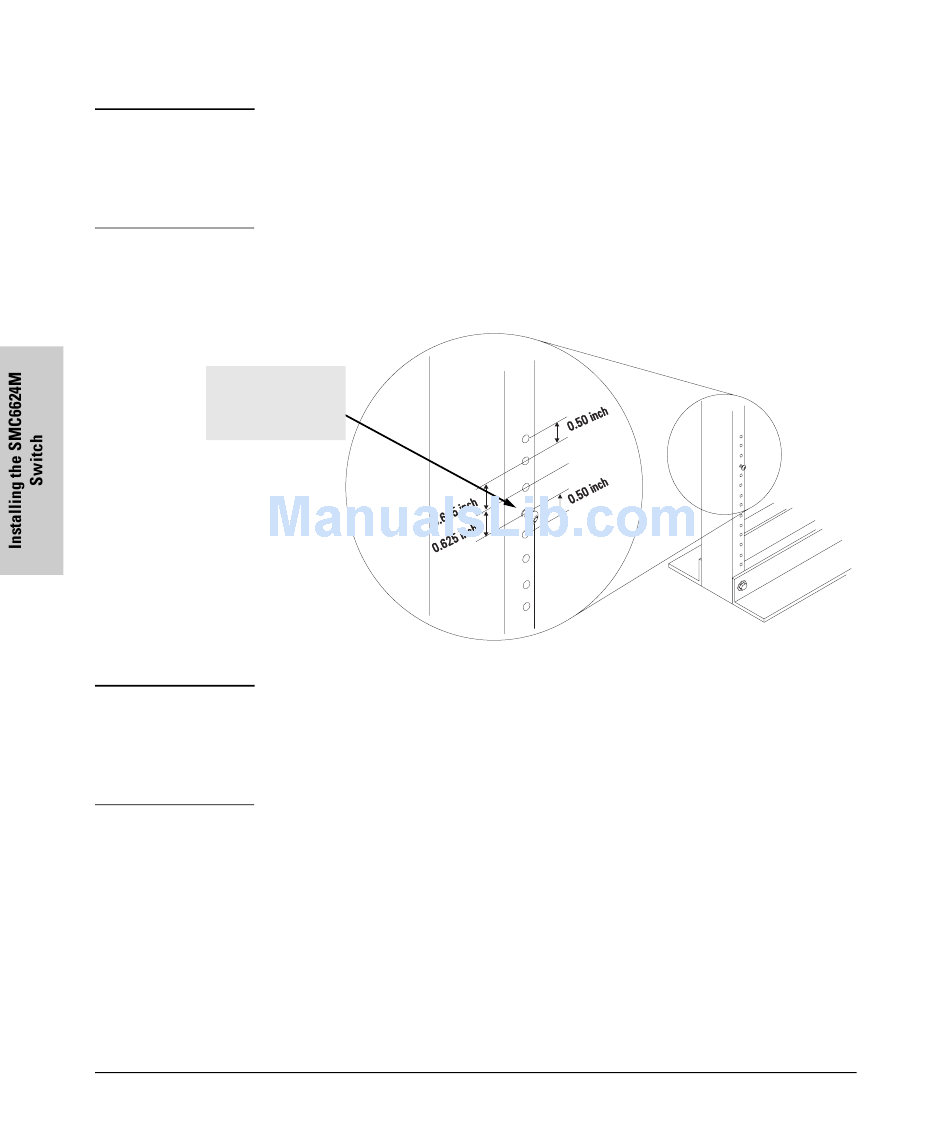

2.
.
partially install a screw
into the top hole of a
close (0.5-inch) pair on
both sides of the rack
N o t e
If you are installing the switch in an equipment cabinet, in place of the 12-24
screws supplied with the switch, use the clips and screws that came with the
cabinet. Plan which four holes you will be using in the cabinet and install all
four clips and partially install the two bottom screws (as shown in the
illlustration above) before proceeding to step 3.
2-10
Partially install a screw (5/8-inch number 12-24) into the top hole of a pair
of holes that are 0.5 inches apart in each rack/cabinet upright as shown
in the illustration below. Ensure that the screws are at the same level in
each upright.
