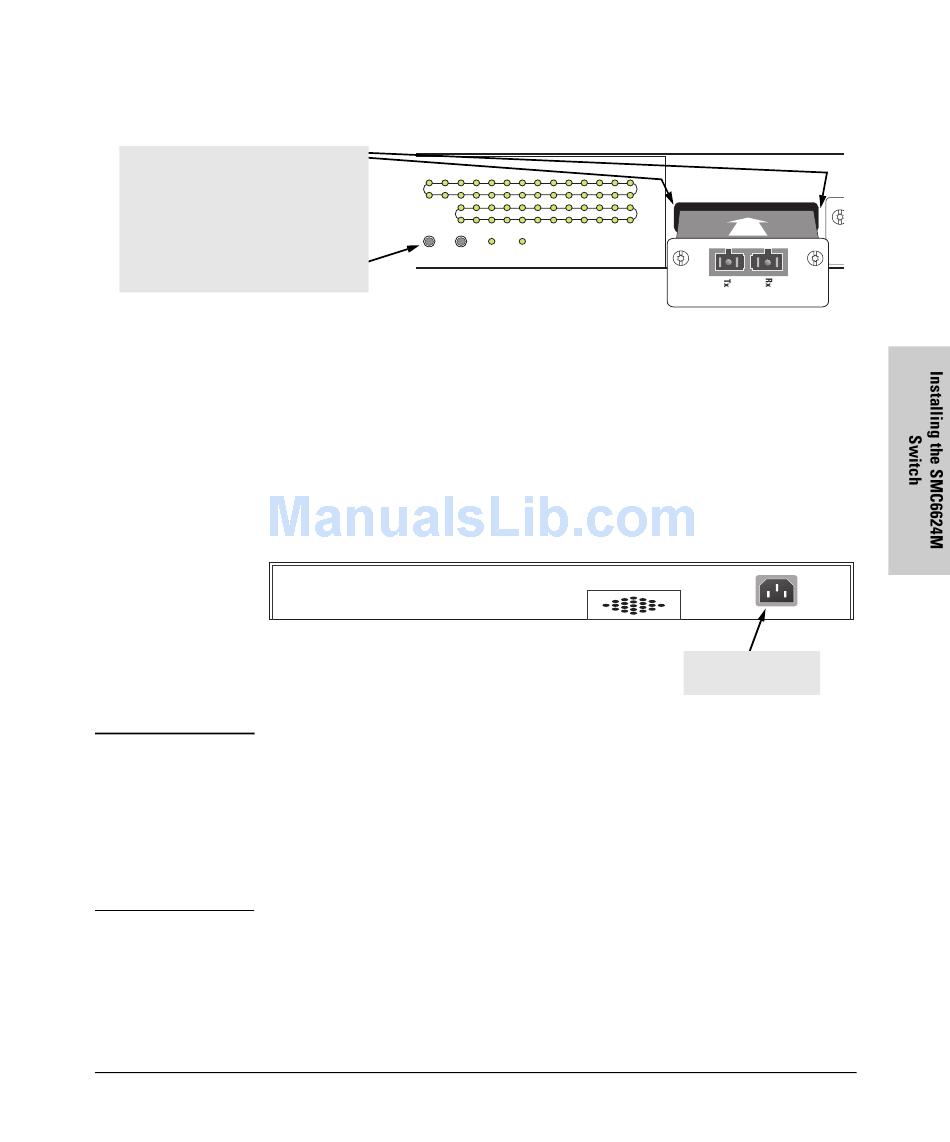

Installing a Module in the Switch
1. Insert module into the guides and slide it
in until it stops.
2. Press in firmly until the module is flush
with the face of the switch.
3. Tighten the retaining screws on the
module until they secure, but do not
overtighten them.
4. Press the Reset button to reset/reboot the
switch and initialize the modules.
3. Verify the Switch Passes Self Test
Before mounting the switch in its network location, you should first verify that
it is working properly by plugging it into a power source and verifying that it
passes its self test.
1.
N o t e
The SMC6624M switch does not have a power switch. It is powered on when
the power cord is connected to the switch and to a power source. For safety,
the power outlet should be located near the switch installation.
If your installation requires a different power cord than the one supplied with
the switch, be sure to use a power cord displaying the mark of the safety
agency that defines the regulations for power cords in your country. The mark
is your assurance that the power cord can be used safely with the switch.
25
26
1
2
7
8
Reset
Clear
Connect the power cord supplied with the switch to the power connector
on the back of the switch, and then into a properly grounded electrical
outlet.
Installing the SMC6624M Switch
3
4
5
6
13
14
15
16
17 18
Link
Act
Link
Act
9
10
11 12
19
20
21 22
23 24
Self
Fan
Test
Status
Installation Procedures
25
Line:50/60Hz
100-127V
~ 2.4A
200-240V 1.2A
~
Connect power cord to
the power connector
2-7
